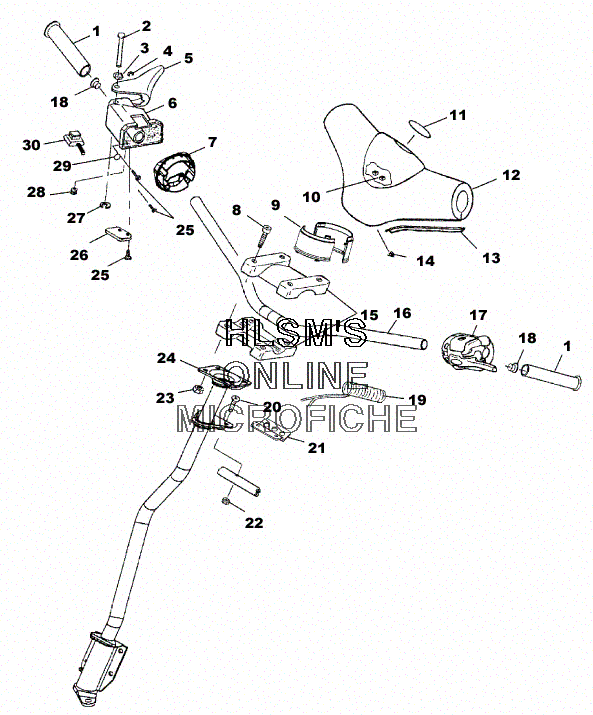

HANDLEBAR ASSEMBLY для Polaris 500 CLASSIC TOURING (S01ST4BS) - 2001 года выпуска
-
№АртикулНазвание
-
15432634 GRIP, H'BAR, SNOWGRIP, H'BAR, SNOW
-
27661624 PIN, HINGEPIN, HINGE
-
37555730 WASHERWASHER
-
47710503 RETAINING RINGRETAINING RING
-
55432970 THROTLE, LEVER, (35.5MM)THROTLE, LEVER, (35.5MM)
-
52010171 LEVER ASSY., HTR, HI/LO (35.5MM)LEVER ASSY., HTR, HI/LO (35.5MM)
-
65431592 BLOCK, THROTTLE/BRAKEBLOCK, THROTTLE/BRAKE
-
75433345 ADAPTER, BLOCK, THROTTLEADAPTER, BLOCK, THROTTLE
-
87517238 SCREWSCREW
-
95433331 BOOT, HANDLEBARBOOT, HANDLEBAR
-
107670106 NUT, PUSH ON, (.170, .180, Y)NUT, PUSH ON, (.170, .180, Y)
-
115433754 EMBLEM, ''STAR'', CHR.BEZEL, HNDLBREMBLEM, ''STAR'', CHR.BEZEL, HNDLBR
-
125433159-070 COVER, HANDLEBAR, (BLACK)COVER, HANDLEBAR, (BLACK)
-
135433160-070 SLIDE, HANDLEBAR COVER, (BLACK)SLIDE, HANDLEBAR COVER, (BLACK)
-
144010287 DART, CLIP NYLON, (BLACK)DART, CLIP NYLON, (BLACK)
-
155630187-067 BLOCK, HANDLEBARBLOCK, HANDLEBAR
-
165243355-067 HANDLE BAR, (BLACK)HANDLE BAR, (BLACK)
-
185431096 PLUG, OVERFLOWPLUG, OVERFLOW
-
192460677 HEATER, GRIP, LO/MED/HIHEATER, GRIP, LO/MED/HI
-
207517377 SCREWSCREW
-
215242553-067 BRACKET, RETENTION, (BLACK)BRACKET, RETENTION, (BLACK)
-
227542103 NUT, LOCKNUT, LOCK
-
237542122 NUT, LOCKNUT, LOCK
-
241820801-067 STEERING POSTSTEERING POST
-
257511848 SCREW, SEMSSCREW, SEMS
-
265432261 HOLDER, WIREHOLDER, WIRE
-
277710401 'E' RING'E' RING
-
287512465 SCREWSCREW
-
297555727 RIVET BURRRIVET BURR
-
304110106 SWITCH, AUX.SHUT, OFFSWITCH, AUX.SHUT, OFF
