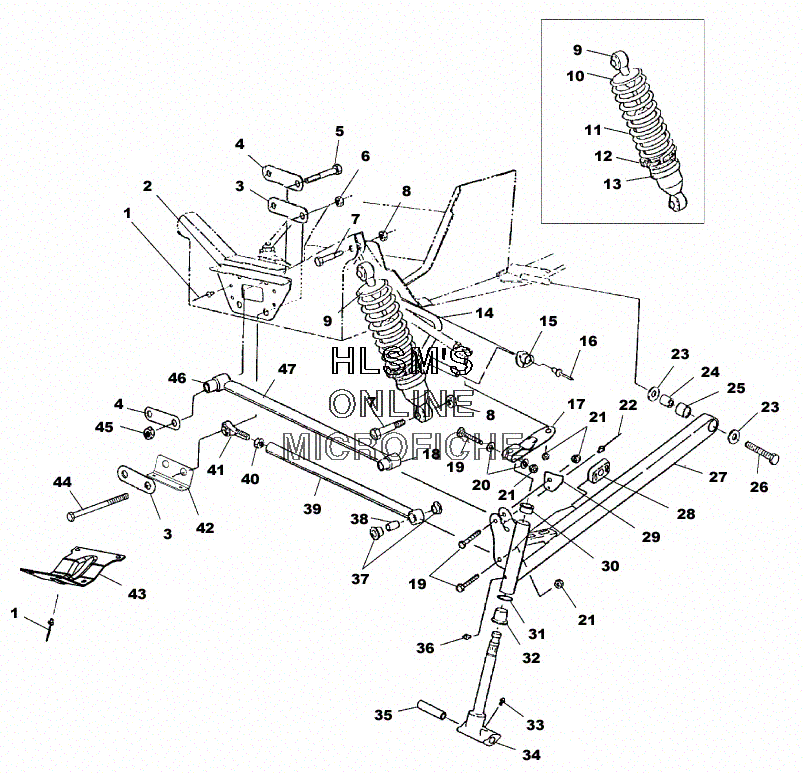

SUSPENSION - FRONT для Polaris 500 CLASSIC TOURING (S01ST4BS) - 2001 года выпуска
-
№АртикулНазвание
-
17661638 RIVET, INTERLOCK, BRIVET, INTERLOCK, B
-
25242117 BRACE, FR. BULKHEADBRACE, FR. BULKHEAD
-
35211345 STRAP, SPACER (BOTTOM)STRAP, SPACER (BOTTOM)
-
45211344 STRAP, SPACER (TOP)STRAP, SPACER (TOP)
-
57512582 BOLTBOLT
-
67542703 NUT FLEXNUT FLEX
-
77515415 BOLTBOLT
-
87542439 NUT, NYLOKNUT, NYLOK
-
97041503 SHOCK, GAS, IFS, SELECTSHOCK, GAS, IFS, SELECT
-
105020618 RETAINER, SPRING, SLOTTEDRETAINER, SPRING, SLOTTED
-
117041551-067 SPRING, COMPRESSIONSPRING, COMPRESSION
-
125431734 RING, SPRING PRELOAD ADJ.RING, SPRING PRELOAD ADJ.
-
131500063 RETAINER, SPRING, BODY, THREADEDRETAINER, SPRING, BODY, THREADED
-
145224748-067 BAR, SWAY, (5/8 X, 12)(BLACK)BAR, SWAY, (5/8 X, 12)(BLACK)
-
155432038 BUSHING, SWAY BARBUSHING, SWAY BAR
-
167621477 RIVETRIVET
-
175241560-067 ARM, STRG, (BLACK)ARM, STRG, (BLACK)
-
185411099 BUSHING, RAD.ROD PIVOT, (3/8)BUSHING, RAD.ROD PIVOT, (3/8)
-
197517583 SCREW, (3/8, 24X2 HX/CP GR5, Y, SP)SCREW, (3/8, 24X2 HX/CP GR5, Y, SP)
-
207555832 WASHERWASHER
-
217542403 NUT LOCKNUT LOCK
-
227661130 RIVET, (3/16-.214-.420)RIVET, (3/16-.214-.420)
-
237555721 WASHERWASHER
-
245010310 TUBE, BUSHINGTUBE, BUSHING
-
255410872 PIVOT, TRLG. ARM, RUBBERPIVOT, TRLG. ARM, RUBBER
-
267512557 BOLTBOLT
-
271822506-067 TRAILING ARM ASSY, (LEFT, BLACK) (INCL. 24, 25)TRAILING ARM ASSY, (LEFT, BLACK) (INCL. 24, 25)
-
271822507-067 TRAILING ARM ASSY, (RIGHT, BLACK) (INCL. 24, 25)TRAILING ARM ASSY, (RIGHT, BLACK) (INCL. 24, 25)
-
285432561 SLIDE, SWAYBAR, (5/8)SLIDE, SWAYBAR, (5/8)
-
295241569-067 STOP, (LEFT), STRG, (BLACK)STOP, (LEFT), STRG, (BLACK)
-
295241570-067 STOP, (RIGHT), STRG, (BLACK)STOP, (RIGHT), STRG, (BLACK)
-
303573909 BUSHING, FLANGEBUSHING, FLANGE
-
317556509 WASHER SPECIALWASHER SPECIAL
-
323574208 BUSHING, SPINDLE HSGBUSHING, SPINDLE HSG
-
337080306 FITTING, LUBE.W/BALL CK.FITTING, LUBE.W/BALL CK.
-
346230102-067 SHAFT, SPINDLE, TRLG, (BLACK)SHAFT, SPINDLE, TRLG, (BLACK)
-
355010158 BUSHING, PIVOTBUSHING, PIVOT
-
367080433 ZERK, FITTING, THREADEDZERK, FITTING, THREADED
-
375431486 BUSH, RAD.ROD PIVOT, OUT.BUSH, RAD.ROD PIVOT, OUT.
-
385010127 BUSHING, RADIUS RODBUSHING, RADIUS ROD
-
391822383-067 ROD, RAD, LOWER, (BLACK)ROD, RAD, LOWER, (BLACK)
-
407542711 NUT, JAMNUT, JAM
-
417061052 ROD END, RADIUS, (RIGHT, LOWER)ROD END, RADIUS, (RIGHT, LOWER)
-
425242578 BRACKET, RAD.ROD, (BOTTOM)BRACKET, RAD.ROD, (BOTTOM)
-
447512684 BOLTBOLT
-
457542503 NUT, LOCKNUT, LOCK
-
465411095 BUSHING, PIVOT, (7/16)BUSHING, PIVOT, (7/16)
-
471822510 ROD, RAD, UPPER, FIXEDROD, RAD, UPPER, FIXED
