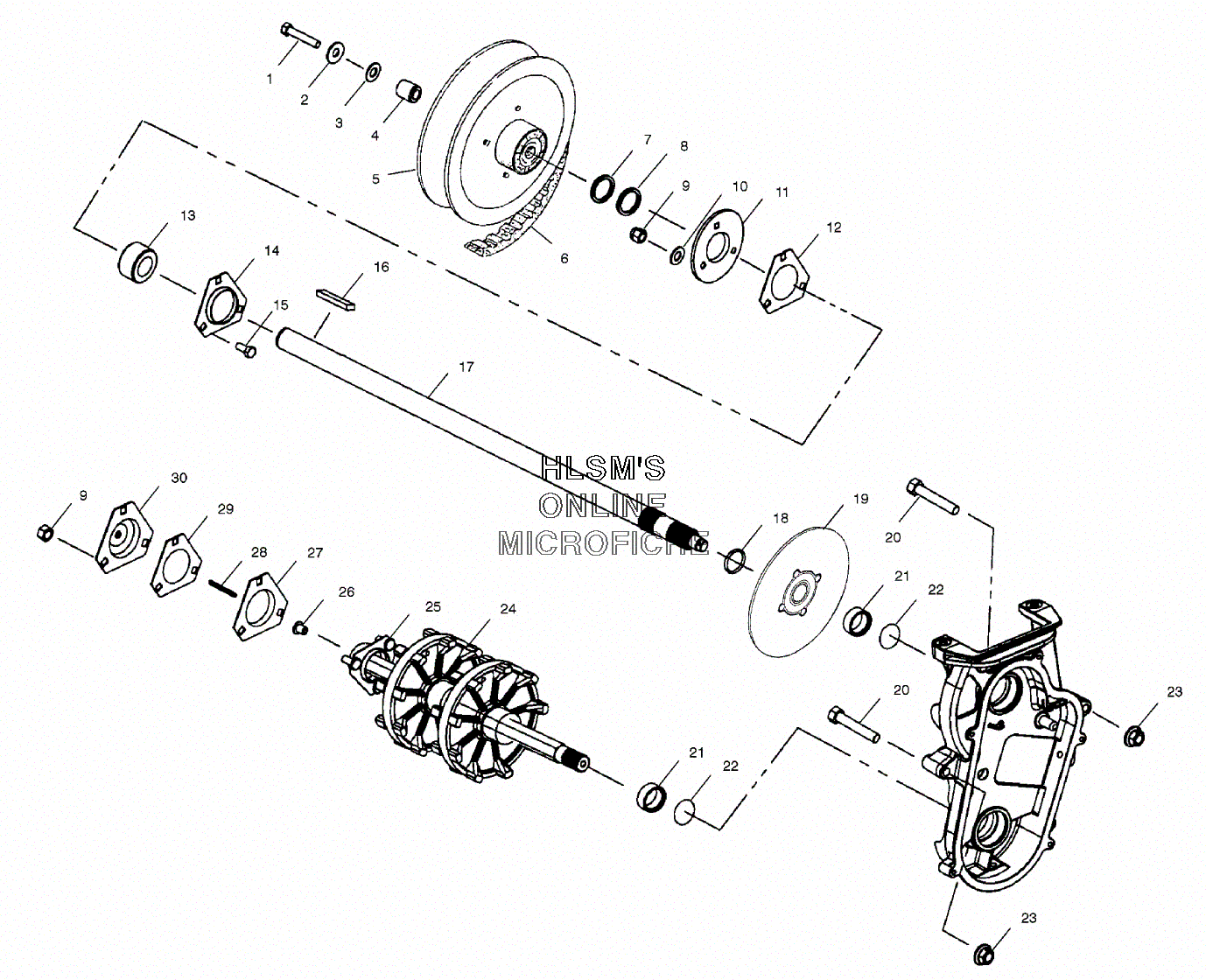

DRIVE TRAIN ASSEMBLY W/ TRACK для Polaris 500 XC (S01NP5AS) - 2001 года выпуска
-
№АртикулНазвание
-
17517820 BOLTBOLT
-
27555701 WASHER FLATWASHER FLAT
-
37555734 WASHERWASHER
-
45020291 SPACERSPACER
-
63211080 BELT DRIVEBELT DRIVE
-
77555864 BUSHINGBUSHING
-
87556509 WASHER SPECIALWASHER SPECIAL
-
97542324 NUTNUT
-
107558402 WASHER STEELWASHER STEEL
-
115241359 FLANGE RD, RELUBE W/ZERKFLANGE RD, RELUBE W/ZERK
-
125811095 GASKET, JACKSHAFT (BLK)GASKET, JACKSHAFT (BLK)
-
133514525 BEARINGBEARING
-
145222751 FLANGETTEFLANGETTE
-
157512377 BOLTBOLT
-
167721128 KEY (1/4X3/16X2.75)KEY (1/4X3/16X2.75)
-
171332220 JACKSHAFT ASSY., 15 SPL W/M15 BEARING (INCL. 13, 18)JACKSHAFT ASSY., 15 SPL W/M15 BEARING (INCL. 13, 18)
-
187710422 RING, RETAININGRING, RETAINING
-
191910403 BRAKE DISC ASSY., SNOW (6385 CR)BRAKE DISC ASSY., SNOW (6385 CR)
-
207515428 BOLTBOLT
-
215020588 SLEEVE, SEALSLEEVE, SEAL
-
225410613 O-RINGO-RING
-
237542423 NUTNUT
-
241590313 DRIVESHAFT ASSY., EDG (1.06) (2 DR W) (INCL. 25, 26)DRIVESHAFT ASSY., EDG (1.06) (2 DR W) (INCL. 25, 26)
-
251012945 FLANGETTE ASSY. W/SCREWSFLANGETTE ASSY. W/SCREWS
-
263280019 BUSHING METAL SPEEDOMETERBUSHING METAL SPEEDOMETER
-
275243529 FLANGETTE OFFSET W/HOLEFLANGETTE OFFSET W/HOLE
-
283280017 SQUARE KEY SPEEDOMETER,SQUARE KEY SPEEDOMETER,
-
295830012 GASKET, DRIVE ADAPTORGASKET, DRIVE ADAPTOR
-
303280116 ADAPTER, DRIVE, W/ZERKADAPTER, DRIVE, W/ZERK
