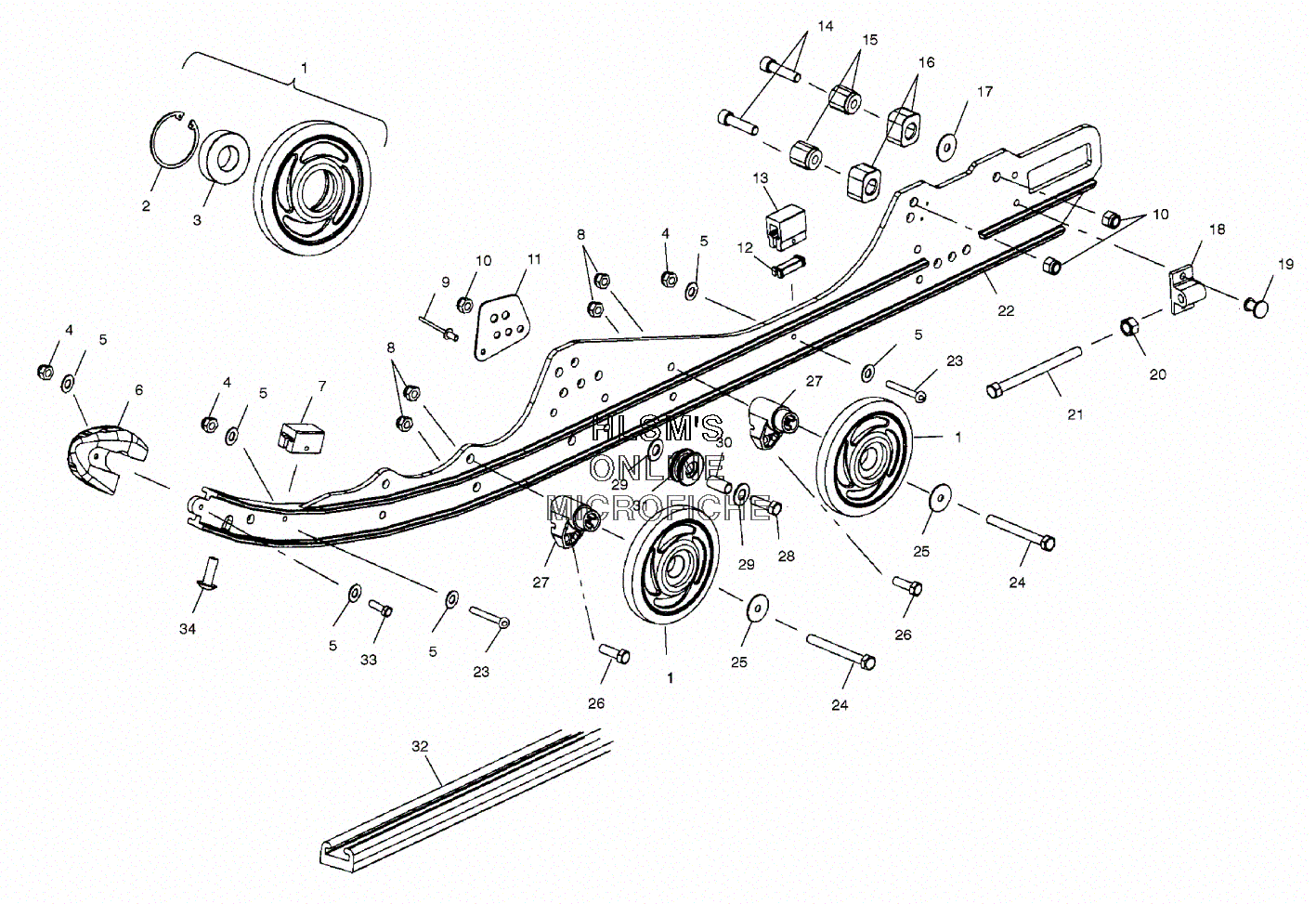

RAIL ASSEMBLY W/ IDLER WHEELS #1 для Polaris 500 XC (S01NP5AS) - 2001 года выпуска
-
№АртикулНазвание
-
11590275-293 WHEEL, ADM (INDY RED) (INCL. 2, 3)WHEEL, ADM (INDY RED) (INCL. 2, 3)
-
27718407 RING RETAINING (1 PER WHEEL)RING RETAINING (1 PER WHEEL)
-
33514303 BEARING (1 PER WHEEL)BEARING (1 PER WHEEL)
-
47541925 NUTNUT
-
57555783 WASHERWASHER
-
65433735 CAP, RAIL TIPCAP, RAIL TIP
-
75521499 BUMPER, JOUNCE (FRONT)BUMPER, JOUNCE (FRONT)
-
87542324 NUTNUT
-
97661845 RIVETRIVET
-
107542439 NUT, NYLOKNUT, NYLOK
-
115244677 BRACKET, RAIL REINFORCEMENTBRACKET, RAIL REINFORCEMENT
-
125432946 LINER, BUMPERLINER, BUMPER
-
135521498 BUMPER, JOUNCE (REAR)BUMPER, JOUNCE (REAR)
-
147515537 BOLTBOLT
-
155131113 MOUNT, BUMPER PIVOT ARM (FRONT)MOUNT, BUMPER PIVOT ARM (FRONT)
-
165410925 BUMPER, PIVOT ARM (FRONT)BUMPER, PIVOT ARM (FRONT)
-
175244371 SPACER (1.00X.390X.105)SPACER (1.00X.390X.105)
-
185132444 BLOCK, IDLER BOLT ADJ, 7/16BLOCK, IDLER BOLT ADJ, 7/16
-
197621501 RIVET,RIVET,
-
207547156 NUT, JAM (7/16 14)NUT, JAM (7/16 14)
-
217517773 SCREWSCREW
-
221541480 RAIL, ASSY., 121 (LEFT) (INCL. 6, 7, 13, 16, 18)RAIL, ASSY., 121 (LEFT) (INCL. 6, 7, 13, 16, 18)
-
221541481 RAIL, ASSY., 121 (RIGHT) (INCL. 6, 7, 13, 16, 18)RAIL, ASSY., 121 (RIGHT) (INCL. 6, 7, 13, 16, 18)
-
237510504 SCREWSCREW
-
247515346 BOLTBOLT
-
257571618 WASHERWASHER
-
267515317 BOLTBOLT
-
275631065 BLOCK WHEEL MOUNT, LWTBLOCK WHEEL MOUNT, LWT
-
287515438 BOLTBOLT
-
297555983 WASHER, FLATWASHER, FLAT
-
305333948 SPACER (.407X.625X1.33)SPACER (.407X.625X1.33)
-
315433959 ROLLER SPRING, SQUAREROLLER SPRING, SQUARE
-
325521528 HI FAX, SERVICE BASICHI FAX, SERVICE BASIC
-
337511930 SCREWSCREW
-
347515199 SCREWSCREW
