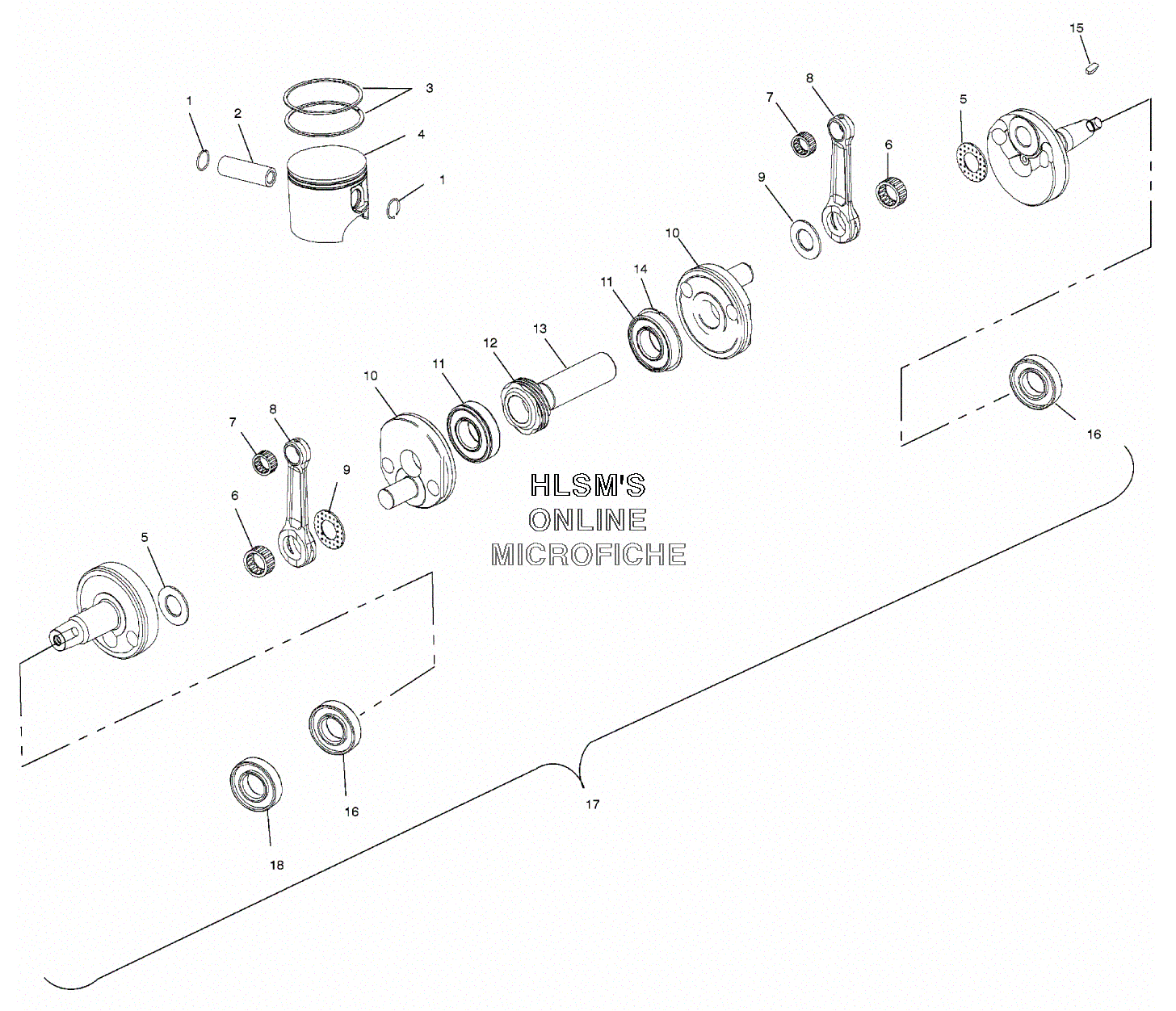

PISTON AND CRANKSHAFT для Polaris 500 XC (S01NP5AS) - 2001 года выпуска
-
№АртикулНазвание
-
13022950 CIRCLIP, PISTON (20MM)CIRCLIP, PISTON (20MM)
-
23022961 PIN, PISTONPIN, PISTON
-
32201196 PISTON RINGS KIT (70.5MM) (STD)PISTON RINGS KIT (70.5MM) (STD)
-
32201198 PISTON RINGS KIT (.25MM O/S)PISTON RINGS KIT (.25MM O/S)
-
32201193 PISTON RINGS KIT (.50MM O/S/.50MM/.020 O/S)PISTON RINGS KIT (.50MM O/S/.50MM/.020 O/S)
-
42201383 PISTON ASSY. (70.5MM) (INCL. 1 3)PISTON ASSY. (70.5MM) (INCL. 1 3)
-
42201395 PISTON ASSY. (.25OS/.25MM/.010 O/S)PISTON ASSY. (.25OS/.25MM/.010 O/S)
-
42201396 PISTON ASSY. (70.5MM) (+.500S/.50MM/.020 O/S)PISTON ASSY. (70.5MM) (+.500S/.50MM/.020 O/S)
-
73552108 BEARINGBEARING
-
82201132 CONNECTING ROD KIT (INCL. 5, 6, 8, 9, 10)CONNECTING ROD KIT (INCL. 5, 6, 8, 9, 10)
-
113513508 BEARING, BALL (35X72X20)BEARING, BALL (35X72X20)
-
125131373 GEAR, PUMP DRIVEGEAR, PUMP DRIVE
-
135131353 SHAFT, CRANK, PUMPDRIVESHAFT, CRANK, PUMPDRIVE
-
147710447 RING, SNAPRING, SNAP
-
157721117 KEY, WOODRUFFKEY, WOODRUFF
-
163585503 BEARING, BALLBEARING, BALL
-
172201234 CRANKSHAFT KIT (2CYL) (MAPE) (INCL. 5, 6, 8 14, 16, 18)CRANKSHAFT KIT (2CYL) (MAPE) (INCL. 5, 6, 8 14, 16, 18)
-
183514310 BEARING, BALL, EXTRACEBEARING, BALL, EXTRACE
