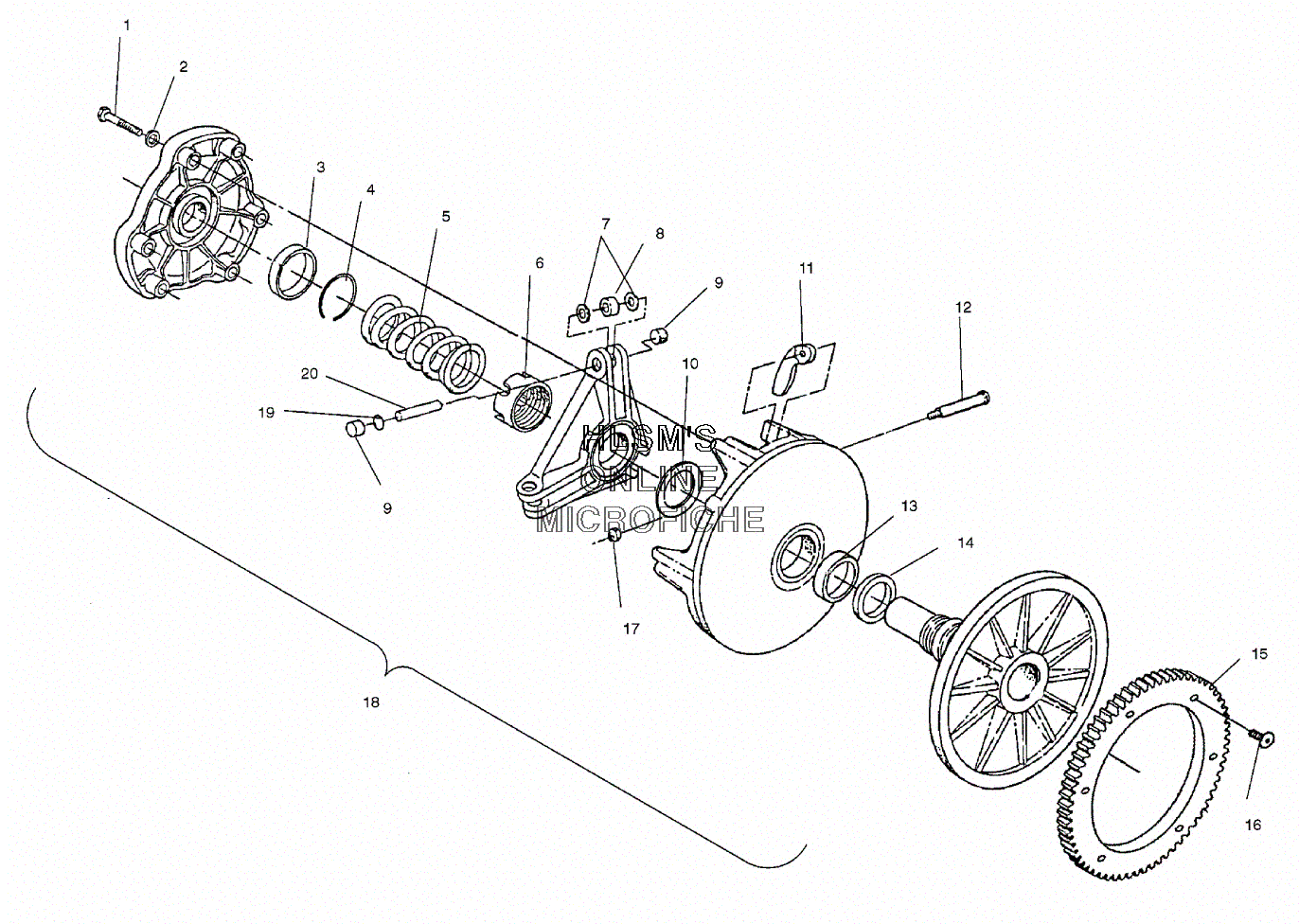

CLUTCH - DRIVE для Polaris 600 CLASSIC EDGE (S01ND6DS) - 2001 года выпуска
-
№АртикулНазвание
-
17512265 BOLTBOLT
-
27552801 LOCK WASHERLOCK WASHER
-
33576516 COVER, BEARING, GARMAXCOVER, BEARING, GARMAX
-
47710417 RING, RETAINING, BOLTRING, RETAINING, BOLT
-
57041781 SPRING CLUTCH (DARK BLUE/WHITE)SPRING CLUTCH (DARK BLUE/WHITE)
-
65020425 NUT, JAMNUT, JAM
-
75430945 WASHERWASHER
-
81321622 ROLLER AND BUSHING ASSY.ROLLER AND BUSHING ASSY.
-
95430445 BUTTON, GUIDEBUTTON, GUIDE
-
105210754 SPACER (.050'')SPACER (.050'')
-
105210753 SPACER (.032'')SPACER (.032'')
-
105242981 SPACER (.025'')SPACER (.025'')
-
105210752 SPACER (.020'')SPACER (.020'')
-
111321588 WT/BUSH.ASSY.WT/BUSH.ASSY.
-
127515105 PIN, WT., HARDENEDPIN, WT., HARDENED
-
133576502 SLEEVE, BEARINGSLEEVE, BEARING
-
145010188 BUSHING RETAINERBUSHING RETAINER
-
155131062 GEAR RINGGEAR RING
-
167515351 BOLT, RING GEARBOLT, RING GEAR
-
177541906 NUT FLEX LOCNUT FLEX LOC
-
181321932 ASSY. DRIVE CLUTCH, BASIC, 118 W/B (INCL. ALL LESS 5, 11)ASSY. DRIVE CLUTCH, BASIC, 118 W/B (INCL. ALL LESS 5, 11)
-
192200387 SHIM KIT, DRIVE CLUTCHSHIM KIT, DRIVE CLUTCH
-
205133079 PIN ROLLER, 1''PIN ROLLER, 1''
