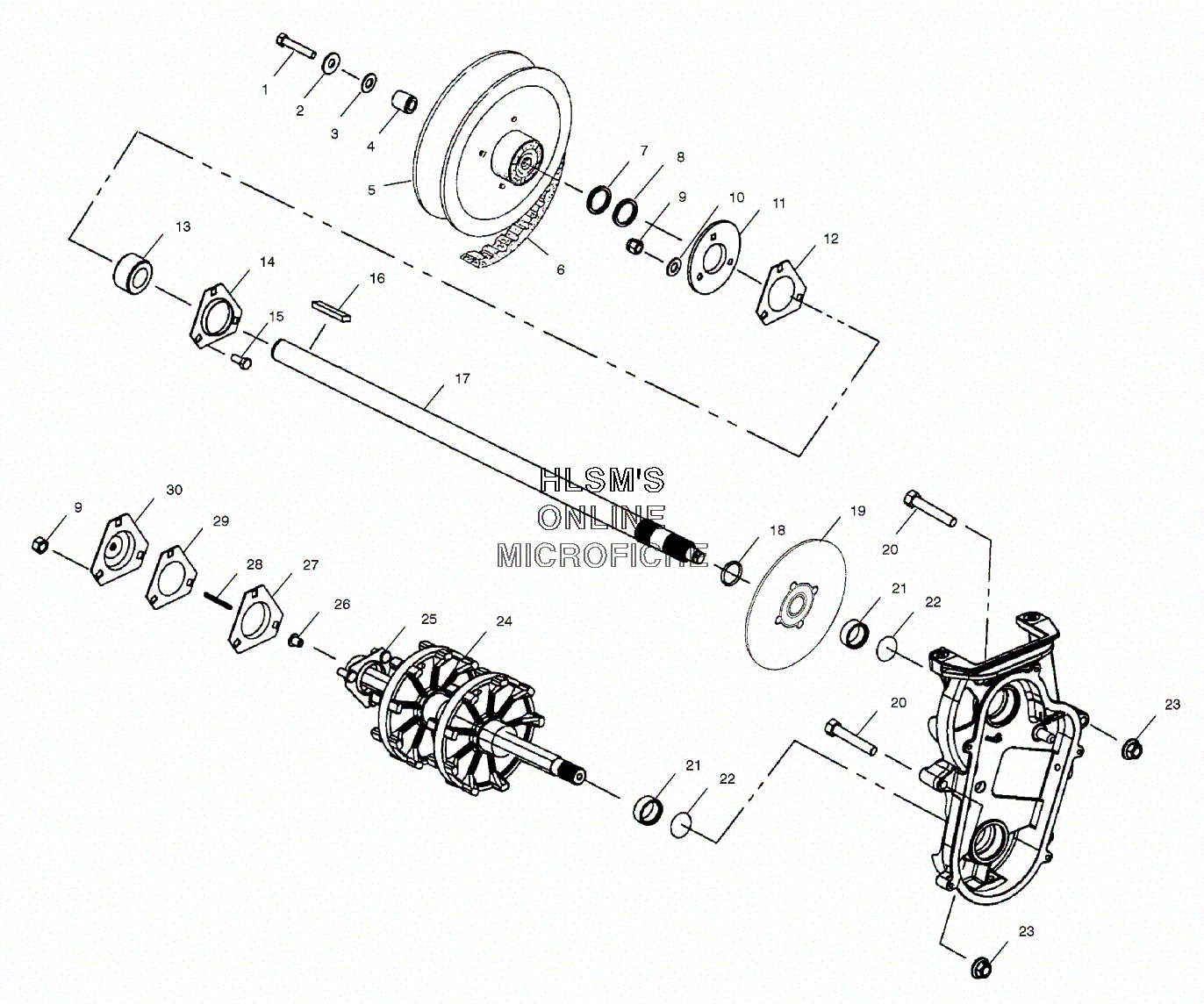

DRIVE TRAIN ASSEMBLY W/ DRIVE BELT для Polaris 600 CLASSIC EDGE (S01ND6DS) - 2001 года выпуска
-
№АртикулНазвание
-
17517820 BOLTBOLT
-
27555701 WASHER FLATWASHER FLAT
-
37555734 WASHERWASHER
-
45020291 SPACERSPACER
-
63211080 BELT DRIVEBELT DRIVE
-
77555864 BUSHINGBUSHING
-
87556509 WASHER SPECIALWASHER SPECIAL
-
97542324 NUTNUT
-
107558402 WASHER STEELWASHER STEEL
-
115241359 FLANGE RD, RELUBE W/ZERKFLANGE RD, RELUBE W/ZERK
-
125811095 GASKET, JACKSHAFT (BLK)GASKET, JACKSHAFT (BLK)
-
133514525 BEARINGBEARING
-
145222751 FLANGETTEFLANGETTE
-
157512377 BOLTBOLT
-
167721128 KEY (1/4X3/16X2.75)KEY (1/4X3/16X2.75)
-
171332220 ASSY. JACKSHAFT, 15 SPL W/M15 BEARING (INCL. 13, 18)ASSY. JACKSHAFT, 15 SPL W/M15 BEARING (INCL. 13, 18)
-
187710422 RING, RETAININGRING, RETAINING
-
191910403 BRAKE DISC ASSY., SNOW (6385 CR)BRAKE DISC ASSY., SNOW (6385 CR)
-
207515428 BOLTBOLT
-
215020588 SLEEVE, SEALSLEEVE, SEAL
-
225410613 O-RINGO-RING
-
237542423 NUTNUT
-
241590313 DRIVESHAFT ASSY., EDG, 1.06, 2 DR W (INCL. 25, 26)DRIVESHAFT ASSY., EDG, 1.06, 2 DR W (INCL. 25, 26)
-
251012945 FLANGETTE ASSY., W/SCREWSFLANGETTE ASSY., W/SCREWS
-
263280019 BUSHING METAL SPEEDOMETERBUSHING METAL SPEEDOMETER
-
275243529 FLANGETTE OFFSET, W/HOLEFLANGETTE OFFSET, W/HOLE
-
283280017 SQUARE KEY SPEEDOMETERSQUARE KEY SPEEDOMETER
-
295830012 GASKET, DRIVE ADAPTOR,GASKET, DRIVE ADAPTOR,
-
303280116 ADAPTER, DRIVE, W/ZERKADAPTER, DRIVE, W/ZERK
