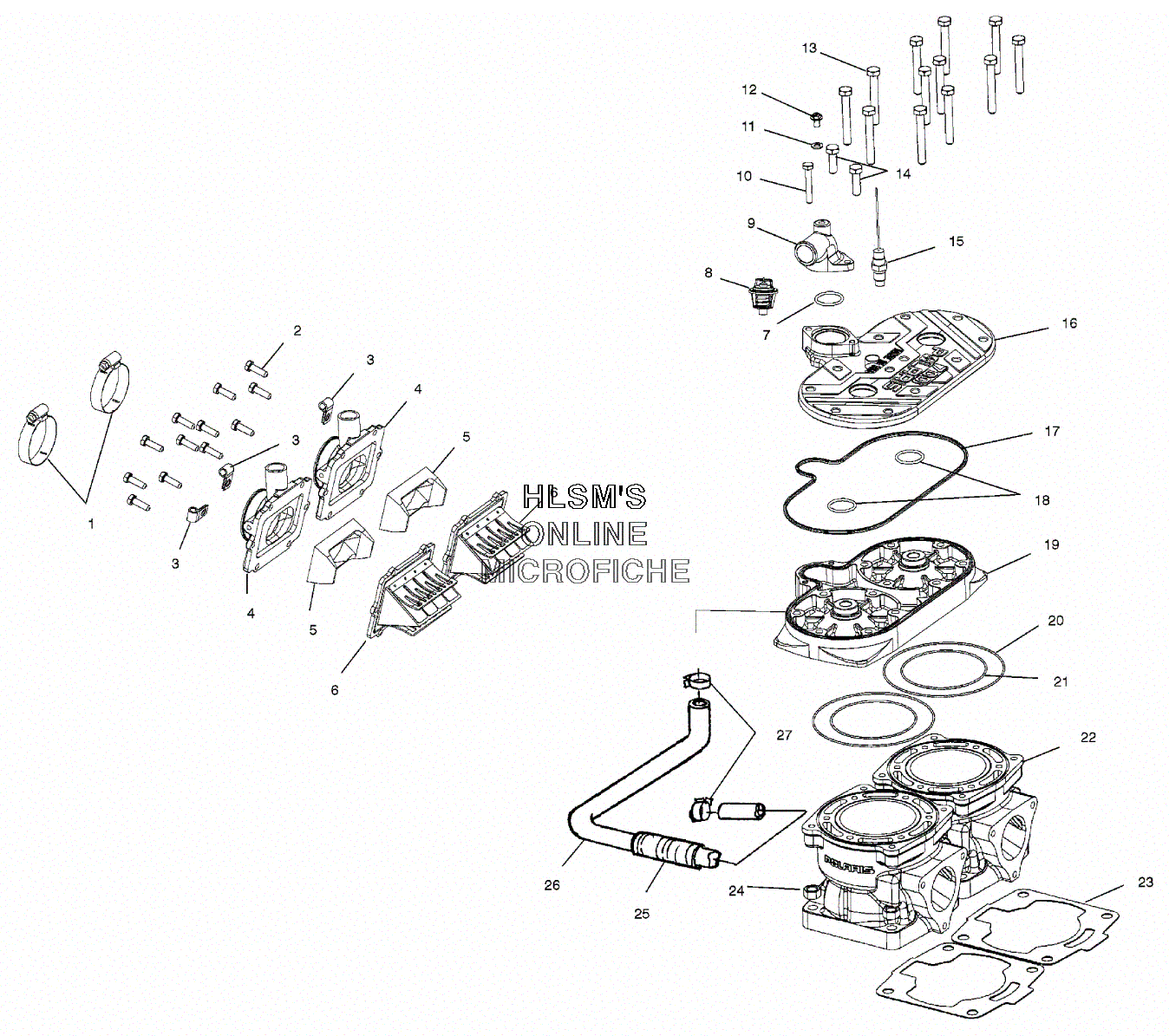

CYLINDER ASSEMBLY для Polaris 600 CLASSIC EDGE (S01ND6DS) - 2001 года выпуска
-
№АртикулНазвание
-
17080681 CLAMP, HOSE, SSCLAMP, HOSE, SS
-
27517398 SCREW,SCREW,
-
37080683 CLAMP, HOSECLAMP, HOSE
-
41253327 ADAPTER, CARBURETOR (40MM)ADAPTER, CARBURETOR (40MM)
-
55433151 STUFFER REED BLOCK, NOKSTUFFER REED BLOCK, NOK
-
61201843 VALVE, REED (1242, G10 S/B)VALVE, REED (1242, G10 S/B)
-
75411521 O-RING, LIPSEALO-RING, LIPSEAL
-
87052258 THERMOSTAT W/O BYPASS (120ШF)THERMOSTAT W/O BYPASS (120ШF)
-
95630992 COVER THERMOSTAT, M6 BLEED LGCOVER THERMOSTAT, M6 BLEED LG
-
107516818 SCREWSCREW
-
117555998 WASHER, FLATWASHER, FLAT
-
127517679 SCREWSCREW
-
137517534 SCREWSCREW
-
147516822 SCREWSCREW
-
154110228 SENSOR, TEMP (105DEG, C)SENSOR, TEMP (105DEG, C)
-
165631047-093 CVR, HD, TWN, SNO, FRED (74.5MM)CVR, HD, TWN, SNO, FRED (74.5MM)
-
175411294 SEAL, RUBBER, HEADSEAL, RUBBER, HEAD
-
185410917 O-RINGO-RING
-
193021125 HEAD, CYL,INDER TWIN, SNOW (74.5MM)HEAD, CYL,INDER TWIN, SNOW (74.5MM)
-
205410931 O-RINGO-RING
-
215411044 O-RINGO-RING
-
223021008 CYLINDER (74.5 MM)CYLINDER (74.5 MM)
-
235811538 GASKET, CYLINDER BASEGASKET, CYLINDER BASE
-
247547013 NUTNUT
-
255521398-96 CONDUIT, FLEX (.75''ID)CONDUIT, FLEX (.75''ID)
-
265411536 HOSE, BYPASSHOSE, BYPASS
-
277080810 CLAMP 3 TONG (.810 .970)CLAMP 3 TONG (.810 .970)
Все узлы модели:
- AIR BOX
- BATTERY BOX
- BRAKE ASSEMBLY
- CARBURETOR - FUEL LINES- MOUNTINGS AND LINKAGE
- CARBURETOR ASSEMBLY
- CHAINCASE ASSEMBLY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CONSOLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- • CYLINDER ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FRAME - CHASSIS
- HANDLEBAR ASSEMBLY
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ HEADLIGHT
- HOOD ASSEMBLY W/ WINDSHIELD
- NOSEPAN ASSEMBLY #1
- NOSEPAN ASSEMBLY #2
- OIL PUMP ASSEMBLY
- PISTON AND CRANKSHAFT
- RAIL ASSEMBLY W/ IDLER WHEELS #1
- RAIL ASSEMBLY W/ IDLER WHEELS #2
- SEAT W/ GAS TANK ASSEMBLY
- SHIFTER ASSEMBLY
- SKI ASSEMBLY
- STARTER - RECOIL ASSEMBLY
- STARTING MOTOR
- STEERING ASSEMBLY
- SUSPENSION - FOX SHOCK - FRONT TRACK
- SUSPENSION - FOX SHOCK - GAS- REAR TRACK
- SUSPENSION - FRONT
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- TOOL KIT
- WATER PUMP
