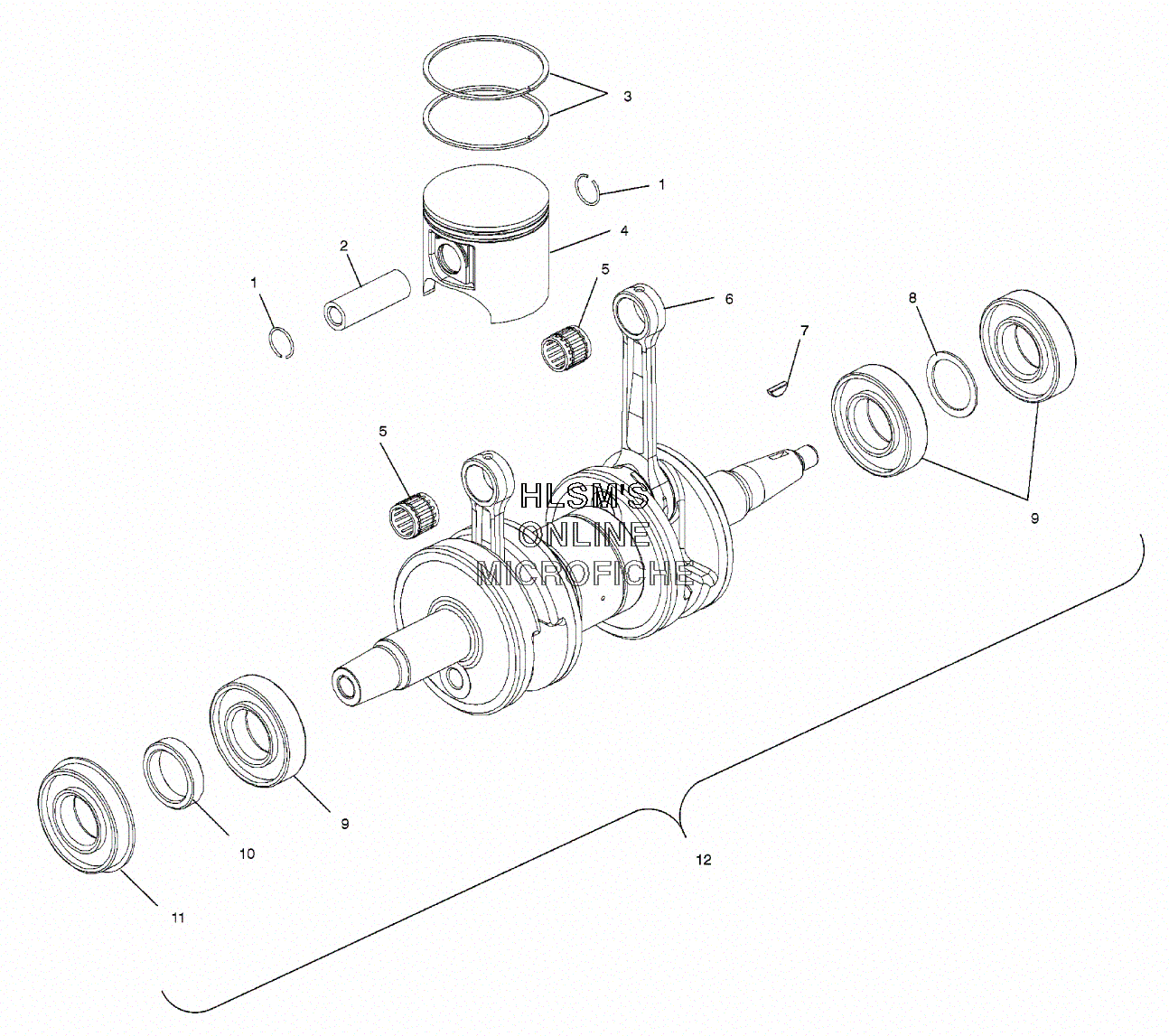

PISTON AND CRANKSHAFT для Polaris 600 CLASSIC EDGE (S01ND6DS) - 2001 года выпуска
-
№АртикулНазвание
-
13022950 CIRCLIP, PISTON (20MM)CIRCLIP, PISTON (20MM)
-
32200940 PISTON RINGS KIT (74.5 CKS)PISTON RINGS KIT (74.5 CKS)
-
42200942 PISTON ASSY. (74.5MM) (INCL. 1, 2, 3)PISTON ASSY. (74.5MM) (INCL. 1, 2, 3)
-
53584001 BEARING, CONNECT.RODBEARING, CONNECT.ROD
-
62201022 CONNECTING ROD KIT, MAPE (INCL. ROD, PIN, BEARING, WASHERS)CONNECTING ROD KIT, MAPE (INCL. ROD, PIN, BEARING, WASHERS)
-
77721117 KEY, WOODRUFFKEY, WOODRUFF
-
87555905 BUSHINGBUSHING
-
93585503 BEARING, BALLBEARING, BALL
-
105131899 SPACER, CRANKSHAFTSPACER, CRANKSHAFT
-
113514310 BEARING, BALL, EXTRACEBEARING, BALL, EXTRACE
-
122201360 CRANKSHAFT, 2CYL, CGUIDE (INCL. 8 11)CRANKSHAFT, 2CYL, CGUIDE (INCL. 8 11)
Все узлы модели:
- AIR BOX
- BATTERY BOX
- BRAKE ASSEMBLY
- CARBURETOR - FUEL LINES- MOUNTINGS AND LINKAGE
- CARBURETOR ASSEMBLY
- CHAINCASE ASSEMBLY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CONSOLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FRAME - CHASSIS
- HANDLEBAR ASSEMBLY
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ HEADLIGHT
- HOOD ASSEMBLY W/ WINDSHIELD
- NOSEPAN ASSEMBLY #1
- NOSEPAN ASSEMBLY #2
- OIL PUMP ASSEMBLY
- • PISTON AND CRANKSHAFT
- RAIL ASSEMBLY W/ IDLER WHEELS #1
- RAIL ASSEMBLY W/ IDLER WHEELS #2
- SEAT W/ GAS TANK ASSEMBLY
- SHIFTER ASSEMBLY
- SKI ASSEMBLY
- STARTER - RECOIL ASSEMBLY
- STARTING MOTOR
- STEERING ASSEMBLY
- SUSPENSION - FOX SHOCK - FRONT TRACK
- SUSPENSION - FOX SHOCK - GAS- REAR TRACK
- SUSPENSION - FRONT
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- TOOL KIT
- WATER PUMP
