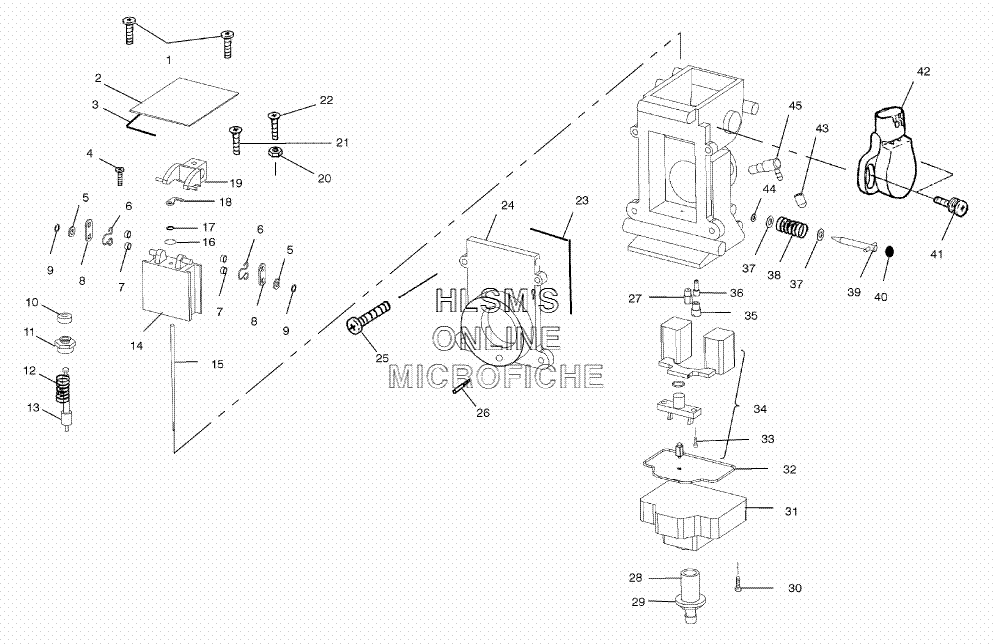

CARBURETOR ASSEMBLY для Polaris 600 XC SP EDGE (S02NP6ESA) - 2002 года выпуска
-
№АртикулНазвание
-
1A1253329 CARBURETOR ASSY.CARBURETOR ASSY.
-
13130951 SCREWSCREW
-
23130872 CAP, TOPCAP, TOP
-
33130871 GASKETGASKET
-
43130844 SCREWSCREW
-
53130846 WASHER, PACKINGWASHER, PACKING
-
63130856 CLIPCLIP
-
73130845 RINGRING
-
83130857 PLATEPLATE
-
93130847 E-RINGE-RING
-
103130831 CAP, STARTER (RUBBER)CAP, STARTER (RUBBER)
-
113130830 HOLDER, STARTER GUIDEHOLDER, STARTER GUIDE
-
123130829 SPRING, STARTERSPRING, STARTER
-
133130828 PLUNGER ASSY.PLUNGER ASSY.
-
143130790 PISTON, VALVE (2.5)PISTON, VALVE (2.5)
-
153131268 NEEDLE, JET (60)NEEDLE, JET (60)
-
163130867 PACKINGPACKING
-
173130868 E-RINGE-RING
-
183130843 PLATEPLATE
-
193130855 LEVER ASSY.LEVER ASSY.
-
193130849 LEVER ASSY.LEVER ASSY.
-
203130848 RINGRING
-
213130854 SCREWSCREW
-
223130850 SCREWSCREW
-
233130870 O-RING, AIR FUNNELO-RING, AIR FUNNEL
-
243130869 FUNNEL ASSY.FUNNEL ASSY.
-
253130825 SCREW, AIR FUNNELSCREW, AIR FUNNEL
-
263131203 AIR JET, PILOT (.9)AIR JET, PILOT (.9)
-
273130143 JET, MAIN (#430)JET, MAIN (#430)
-
283131248 BOLT, DRAINBOLT, DRAIN
-
293130863 O-RING, DRAIN SCREWO-RING, DRAIN SCREW
-
303130824 SCREW, FLOAT BOWLSCREW, FLOAT BOWL
-
313130858 FLOAT, BODYFLOAT, BODY
-
323130861 O-RING, FLOAT BOWLO-RING, FLOAT BOWL
-
333130860 SCREW, VALVE SEATSCREW, VALVE SEAT
-
343130977 FLOAT ASSY.FLOAT ASSY.
-
353130067 JET, PILOT (40)JET, PILOT (40)
-
363130768 JET, STARTER (#140)JET, STARTER (#140)
-
373130837 WASHERWASHER
-
383130836 SPRINGSPRING
-
393130987 ADJUSTERADJUSTER
-
403130986 CAPCAP
-
413131010 SCREW (MAG)SCREW (MAG)
-
423131009 SENSOR ASSY. (MAG)SENSOR ASSY. (MAG)
-
433130479 CAPCAP
-
443130835 PACKINGPACKING
-
457051020 VALVE, CHECKVALVE, CHECK
