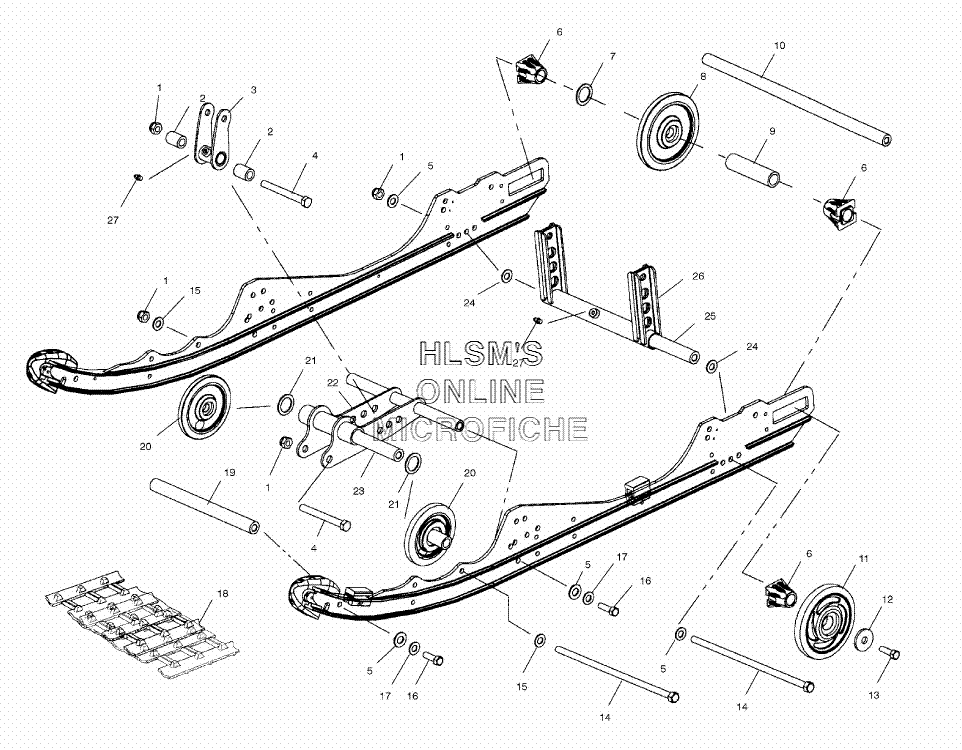

SUSPENSION - REAR TRACK для Polaris 600 XC SP EDGE (S02NP6ESA) - 2002 года выпуска
-
№АртикулНазвание
-
17542439 NUT, NYLOCKNUT, NYLOCK
-
25131940 BUSHINGBUSHING
-
31541477-067 SHOCK PIVOT ARM (BLACK)SHOCK PIVOT ARM (BLACK)
-
47515417 SCREWSCREW
-
57555806 WASHER, FLATWASHER, FLAT
-
65432535 SPACER, IDLERSPACER, IDLER
-
77555918 BUSHINGBUSHING
-
81594087 WHEEL ASSY., PLAINWHEEL ASSY., PLAIN
-
95333285 SPACER, IDLER LONGSPACER, IDLER LONG
-
105020744 SHAFT, IDLERSHAFT, IDLER
-
111590303-293 WHEEL, IDLER (RED)WHEEL, IDLER (RED)
-
117710444 RING, RETAININGRING, RETAINING
-
113514012 BEARINGBEARING
-
127556130 WASHERWASHER
-
137517731 BOLTBOLT
-
147517921 SCREWSCREW
-
157555797 WASHER, FLATWASHER, FLAT
-
167517247 SCREWSCREW
-
177552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
185411369 TRACK (121''X 15''X.91)TRACK (121''X 15''X.91)
-
185241473 CLIP, SLIDECLIP, SLIDE
-
185241474 CLIP, GUIDECLIP, GUIDE
-
195020723 SHAFT, PIVOT ARMSHAFT, PIVOT ARM
-
201541485 WHEEL W/ HOLEWHEEL W/ HOLE
-
217556301 BUSHINGBUSHING
-
221541463-067 SHOCK MOUNT (BLACK)SHOCK MOUNT (BLACK)
-
235132490 SHAFTSHAFT
-
247555893 WASHER, FLATWASHER, FLAT
-
255333404 SHAFTSHAFT
-
261541478-067 REAR, PIVOT ARM (BLACK)REAR, PIVOT ARM (BLACK)
-
277080424 FITTING, LUBEFITTING, LUBE
