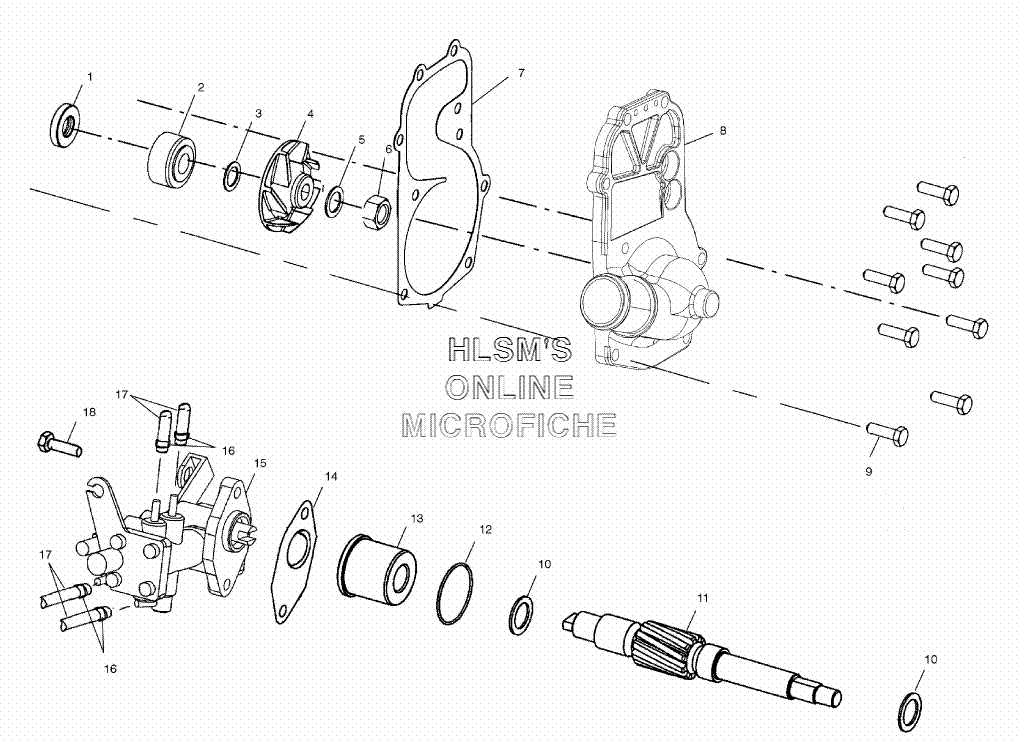

WATER PUMP/OIL PUMP для Polaris 600 XC SP EDGE (S02NP6ESA) - 2002 года выпуска
-
№АртикулНазвание
-
15411197 SEAL, TYPE SSEAL, TYPE S
-
23610067 SEAL, WATER PUMPSEAL, WATER PUMP
-
37556006 WASHER, FLATWASHER, FLAT
-
45432330 IMPELLER, WATERPUMPIMPELLER, WATERPUMP
-
57555874 WASHER, FLATWASHER, FLAT
-
67546804 NUT, HEX NYLOCKNUT, HEX NYLOCK
-
75811601 GASKET, WATERPUMP COVERGASKET, WATERPUMP COVER
-
85630920 COVER, WATERPUMP HI FLOWCOVER, WATERPUMP HI FLOW
-
97516822 SCREWSCREW
-
107555977 WASHER, THRUSTWASHER, THRUST
-
115131855 DRIVESHAFT, WATER/OIL PUMPDRIVESHAFT, WATER/OIL PUMP
-
125411196 O-RINGO-RING
-
135010391 BEARING, PUMP SHAFT FLANGEDBEARING, PUMP SHAFT FLANGED
-
145811789 GASKET, OIL PUMPGASKET, OIL PUMP
-
152540097 OIL PUMP ASSY.OIL PUMP ASSY.
-
167080603 CLAMPCLAMP
-
178450061-600 FUELLINE (3MMX7MM)FUELLINE (3MMX7MM)
