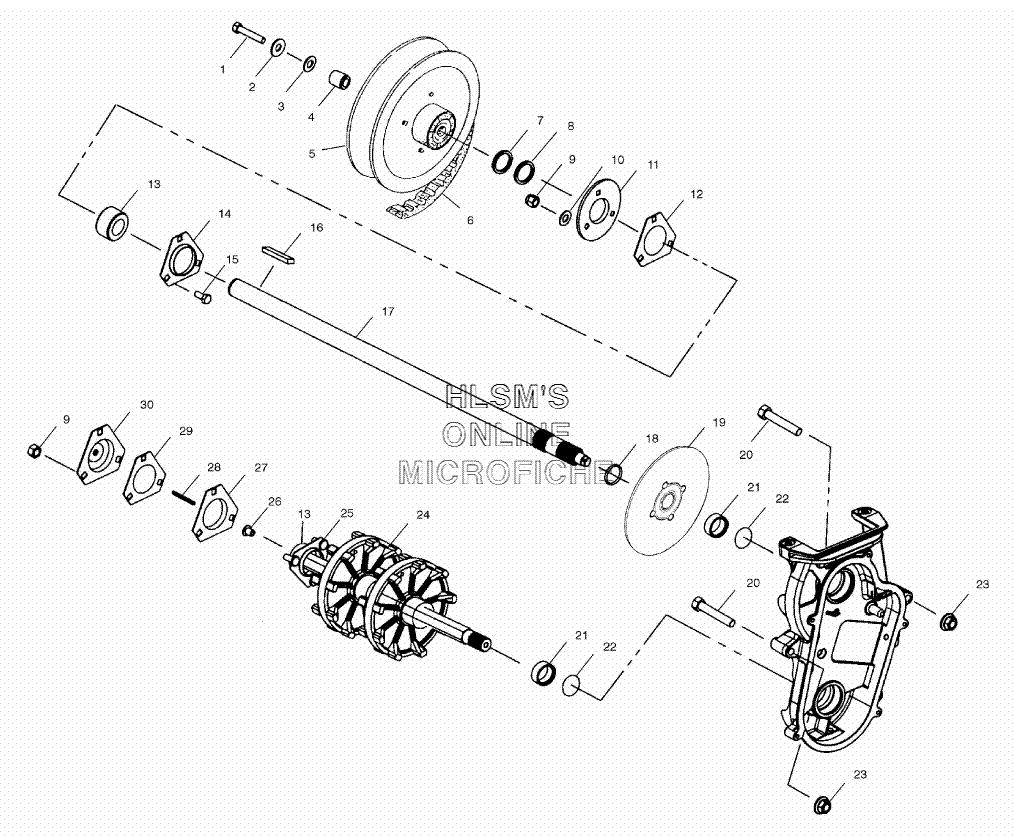

DRIVE TRAIN ASSEMBLY W/ DRIVE BELT для Polaris 600 XC SP EDGE (S02NP6ESA) - 2002 года выпуска
-
№АртикулНазвание
-
17515369 BOLTBOLT
-
27555701 WASHER, FLATWASHER, FLAT
-
37555734 WASHER, FLATWASHER, FLAT
-
45020291 SPACERSPACER
-
51321927 DRIVEN CLUTCH ASSY.DRIVEN CLUTCH ASSY.
-
63211080 BELT, DRIVEBELT, DRIVE
-
77555864 WASHERWASHER
-
87556509 BUSHINGBUSHING
-
97542324 NUT, NYLOCKNUT, NYLOCK
-
107558402 WASHER, FLATWASHER, FLAT
-
115241359 FLANGE, RELUBE W/ZERKFLANGE, RELUBE W/ZERK
-
117080561 FITTING, LUB/VENFITTING, LUB/VEN
-
125811095 GASKET, JACKSHAFT (BLACK)GASKET, JACKSHAFT (BLACK)
-
133514525 BEARINGBEARING
-
145222751 FLANGETTEFLANGETTE
-
157512377 BOLT, CARRIAGEBOLT, CARRIAGE
-
167721128 KEYKEY
-
171332220 JACKSHAFT ASSY. W/ BEARING (15 SPLINE) (INCL. 13,18)JACKSHAFT ASSY. W/ BEARING (15 SPLINE) (INCL. 13,18)
-
187710422 RING, RETAININGRING, RETAINING
-
191910403 BRAKE DISCBRAKE DISC
-
207515428 BOLT, CARRIAGEBOLT, CARRIAGE
-
215020588 SLEEVE, SEALSLEEVE, SEAL
-
225410613 O-RINGO-RING
-
237542423 NUT, FLANGENUT, FLANGE
-
241590313 DRIVESHAFT ASSY. (INCL. 25,26)DRIVESHAFT ASSY. (INCL. 25,26)
-
251012945 FLANGETTE ASSY. W/SCREWSFLANGETTE ASSY. W/SCREWS
-
263280019 BUSHING, METAL SPEEDOBUSHING, METAL SPEEDO
-
275243529 FLANGETTE, OFFSET W/HOLEFLANGETTE, OFFSET W/HOLE
-
283280017 SQ. KEY SPEEDOMETERSQ. KEY SPEEDOMETER
-
295830012 GASKET, DRIVE ADAPTORGASKET, DRIVE ADAPTOR
-
303280116 ADAPTER, DRIVE W/ZERKADAPTER, DRIVE W/ZERK
