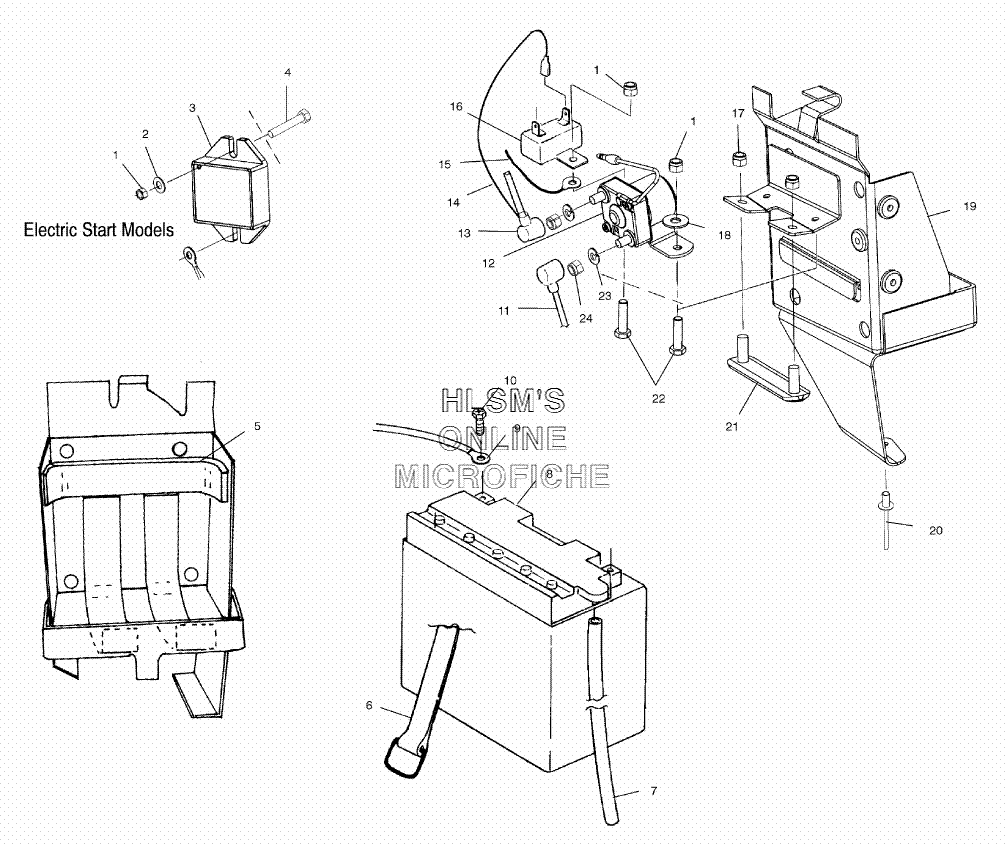

BATTERY BOX для Polaris 600 XC SP F/O EDGE (S02NP6ES) - 2002 года выпуска
-
№АртикулНазвание
-
17541925 NUTNUT
-
27555904 BURR, RIVETBURR, RIVET
-
34010355 REGULATOR (AC/DC 14.3V)REGULATOR (AC/DC 14.3V)
-
47517263 SCREW, HX/SEMSSCREW, HX/SEMS
-
55810290 PAD, BATTERYPAD, BATTERY
-
62450020 STRAP ASSY., BATT. HOLD.STRAP ASSY., BATT. HOLD.
-
75432077 TUBE, BATTERY VENTTUBE, BATTERY VENT
-
84140006 BATTERYBATTERY
-
94010114 CABLE (11'', BATT., BLACK)CABLE (11'', BATT., BLACK)
-
102200361 BOLT, BATT. KIT (SHORT)BOLT, BATT. KIT (SHORT)
-
114010107 CABLE, SOL/STRT (BLACK, 16.5'')CABLE, SOL/STRT (BLACK, 16.5'')
-
124010930 SWITCH, MAGNETIC [SEE STARTING MOTOR REF. 20]SWITCH, MAGNETIC [SEE STARTING MOTOR REF. 20]
-
135410346 INSUL. CABLE SOL.INSUL. CABLE SOL.
-
142460393 CABLE ASSY., SOLENOIDCABLE ASSY., SOLENOID
-
154010108 WIRE, JUMPER, (SOL/BATT, 8.5'')WIRE, JUMPER, (SOL/BATT, 8.5'')
-
162434008 CIRCUIT BREAKERCIRCUIT BREAKER
-
177542122 NUT, LOCKNUT, LOCK
-
187558201 WASHER, FLATWASHER, FLAT
-
191013256-067 BOX, BATTERY EDGE (BLACK)BOX, BATTERY EDGE (BLACK)
-
207621467 RIVET, BLINDRIVET, BLIND
-
211013385 WELD, STUD PLATE, BATTERY BOXWELD, STUD PLATE, BATTERY BOX
-
227511930 SCREWSCREW
-
233080077 WASHER, SPRING [SEE STARTING MOTOR REF. 19]WASHER, SPRING [SEE STARTING MOTOR REF. 19]
-
243082939 NUT [SEE STARTING MOTOR REF. 18]NUT [SEE STARTING MOTOR REF. 18]
