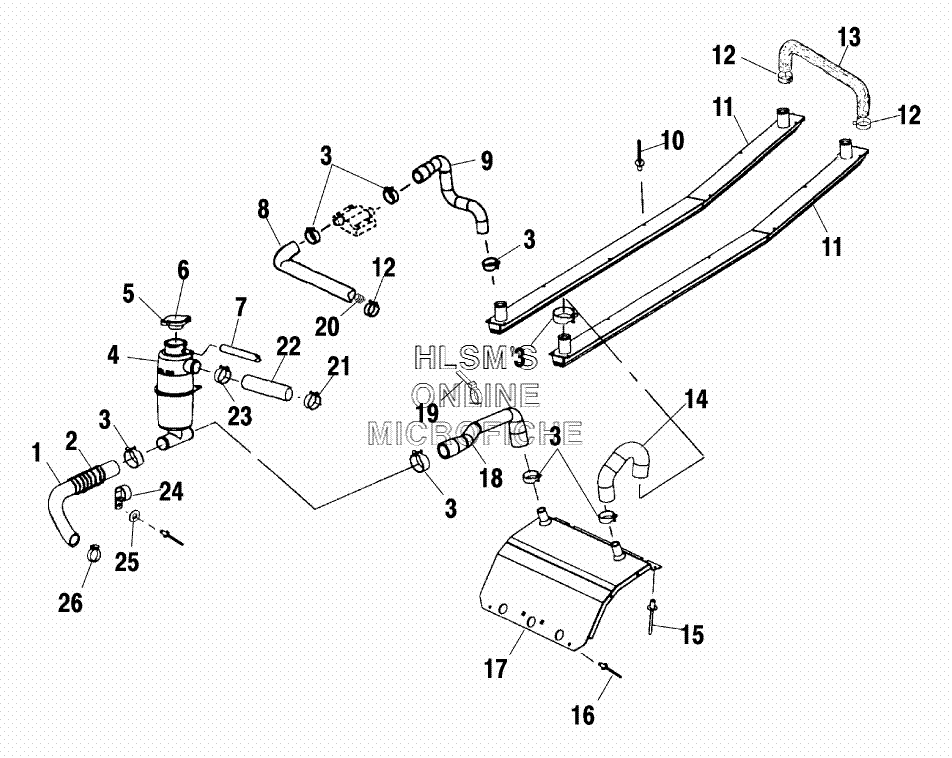

COOLING SYSTEM для Polaris 600 XC SP F/O EDGE (S02NP6ES) - 2002 года выпуска
-
№АртикулНазвание
-
15411507 HOSE, ''T''/ENG.IN (440 BASE)HOSE, ''T''/ENG.IN (440 BASE)
-
25521510 TUBING, CONVOLUTED (1.25''X3'')TUBING, CONVOLUTED (1.25''X3'')
-
37080844 SPRINGBAND, CLAMP (35/12, (BLACK)SPRINGBAND, CLAMP (35/12, (BLACK)
-
42520314 WELD, COOLANT, BOTTLE (5/8 BYPASS)WELD, COOLANT, BOTTLE (5/8 BYPASS)
-
52511270 CAP, PRESSURE (13 LB)CAP, PRESSURE (13 LB)
-
67170063 DECAL, WATER BOTTLE CAPDECAL, WATER BOTTLE CAP
-
78450003-1525 FUEL LINE, 1/4 ID (1525 CM.)FUEL LINE, 1/4 ID (1525 CM.)
-
85411956 HOSE, ENG.OUT/BRK COOLERHOSE, ENG.OUT/BRK COOLER
-
95411852 HOSE, STRIP COOLER/BRAKEHOSE, STRIP COOLER/BRAKE
-
107621432 RIVET (3/16X.402)RIVET (3/16X.402)
-
111240147 WELD, WEARSTRIP COOLER (RC)WELD, WEARSTRIP COOLER (RC)
-
127080843 SPRINGBAND, CLAMP (32/12, BROWN 1)SPRINGBAND, CLAMP (32/12, BROWN 1)
-
135411854 HOSE, CROSSOVER, WEAR STRIPHOSE, CROSSOVER, WEAR STRIP
-
145411853 HOSE, CENTER/STRIP COOLERHOSE, CENTER/STRIP COOLER
-
157661130 RIVET (3/16, .214, .420)RIVET (3/16, .214, .420)
-
167661637 RIVET (INTERLOCK, Z)RIVET (INTERLOCK, Z)
-
172520239 WELD, COOLER, CENTERWELD, COOLER, CENTER
-
185411878 HOSE, COOLER/BOTTLEHOSE, COOLER/BOTTLE
-
197080804 CABLE TIE (RELEASABLE, 5 1/2'')CABLE TIE (RELEASABLE, 5 1/2'')
-
207042041 SPRING, HOSE RETAINERSPRING, HOSE RETAINER
-
217080696 CLAMP, HOSE (1.25, WORM DRIVE) [IF BUILT BEFORE 6/1/01]CLAMP, HOSE (1.25, WORM DRIVE) [IF BUILT BEFORE 6/1/01]
-
217080533 CLAMP [IF BUILT AFTER 6/1/01]CLAMP [IF BUILT AFTER 6/1/01]
-
225412104 HOSE (BYPASS 5/8) [IF BUILT BEFORE 6/1/01]HOSE (BYPASS 5/8) [IF BUILT BEFORE 6/1/01]
-
225412174 HOSE (BYPASS, 1/2'') [IF BUILT AFTER 6/1/01]HOSE (BYPASS, 1/2'') [IF BUILT AFTER 6/1/01]
-
237080533 CLAMPCLAMP
-
247080908 CLAMP, HOSE (1.375, VNL ECOATED 1)CLAMP, HOSE (1.375, VNL ECOATED 1)
-
257555859 WASHER, FLATWASHER, FLAT
-
267080560 CLAMP (S.S.)CLAMP (S.S.)
