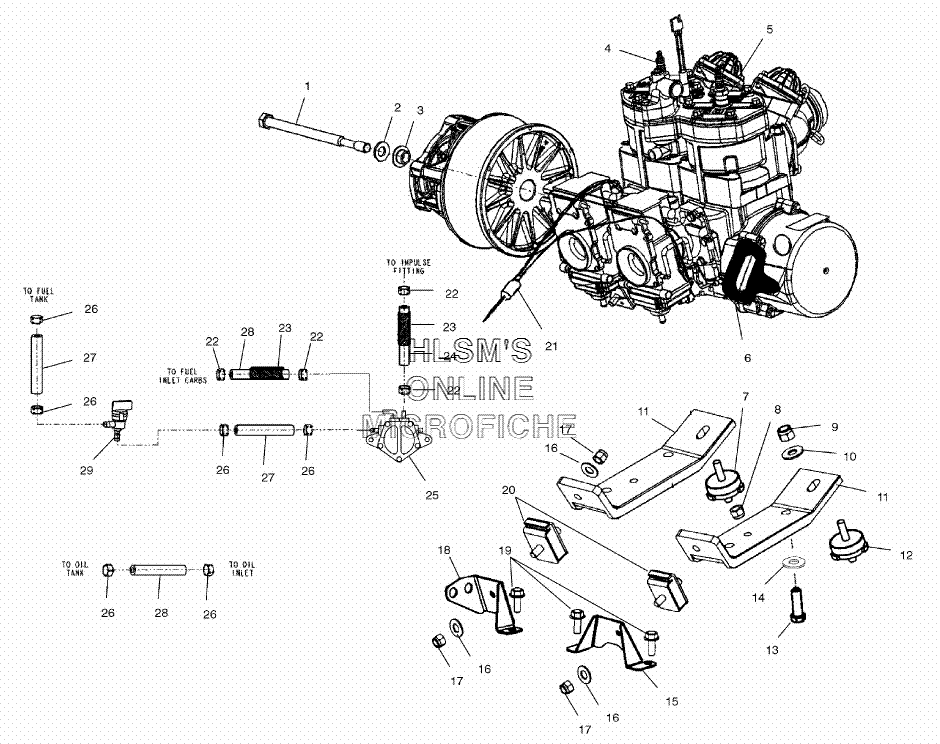

ENGINE MOUNTING W/ SHORT BLOCK для Polaris 600 XC SP F/O EDGE (S02NP6ES) - 2002 года выпуска
-
№АртикулНазвание
-
17517501 SCREW (M14X1.5X215)SCREW (M14X1.5X215)
-
27556003 WASHERWASHER
-
35131872 WASHER, CLUTCH RET.WASHER, CLUTCH RET.
-
43070190 SPARK PLUG (CHAMPION RN57Y CC)SPARK PLUG (CHAMPION RN57Y CC)
-
52201935 SHT KIT, (BLACK S60, 44, 02) (NOTE: THE SHORT BLOCK ASSY. CONTAINS ASHT KIT, (BLACK S60, 44, 02) (NOTE: THE SHORT BLOCK ASSY. CONTAINS A
-
65431499-070 HANDLE, RECOIL (BLACK)HANDLE, RECOIL (BLACK)
-
73021220 MOUNT, ENGINE (3/8, 16)MOUNT, ENGINE (3/8, 16)
-
87547180 NUT, FLANGED (3/8, 16 NYLON, Z)NUT, FLANGED (3/8, 16 NYLON, Z)
-
97542451 NUT, NYLOCNUT, NYLOC
-
107555893 WASHERWASHER
-
115245465 STRAP, ENGINE MOUNT (S44, LEFT)STRAP, ENGINE MOUNT (S44, LEFT)
-
115245474 STRAP, ENGINE MOUNT (S44, RIGHT)STRAP, ENGINE MOUNT (S44, RIGHT)
-
123021290 MOUNT, ENGINE (3/8, 16 50 DUR)MOUNT, ENGINE (3/8, 16 50 DUR)
-
137512539 BOLTBOLT
-
147553101 WASHER LOCKWASHER LOCK
-
155245044 BRACKET, ENGINE MOUNT (RIGHT, FORMED)BRACKET, ENGINE MOUNT (RIGHT, FORMED)
-
167555806 WASHERWASHER
-
177547008 NUT, FLEXLOCKNUT, FLEXLOCK
-
181013397 WELD, ENG MOUNT BRACKET (LEFT)WELD, ENG MOUNT BRACKET (LEFT)
-
197517854 SCREW (3/8, 16X1, P30, SPEC, Y)SCREW (3/8, 16X1, P30, SPEC, Y)
-
203021206 MOUNT, ENGINE (3/8, 16, RECT)MOUNT, ENGINE (3/8, 16, RECT)
-
217080867 CABLE, THROTTLE, TWINCABLE, THROTTLE, TWIN
-
227080003 CLAMP, HOSECLAMP, HOSE
-
238360052-15 TUBING, CONVOLUTEDTUBING, CONVOLUTED
-
248450040-600 FUEL LINE (1/4 ID 600 CM.)FUEL LINE (1/4 ID 600 CM.)
-
252520259 PUMP, FUEL (MIK 62 1/4'' XC S/BLACK)PUMP, FUEL (MIK 62 1/4'' XC S/BLACK)
-
267080307 CLAMPCLAMP
-
278350018 TUBINGTUBING
-
288350017-160 FUEL, LINE (ETHER, RED, 5/16'')FUEL, LINE (ETHER, RED, 5/16'')
-
297052249 VALVE, FUEL (PLASTIC 90Ш, 1/4HOSE)VALVE, FUEL (PLASTIC 90Ш, 1/4HOSE)
