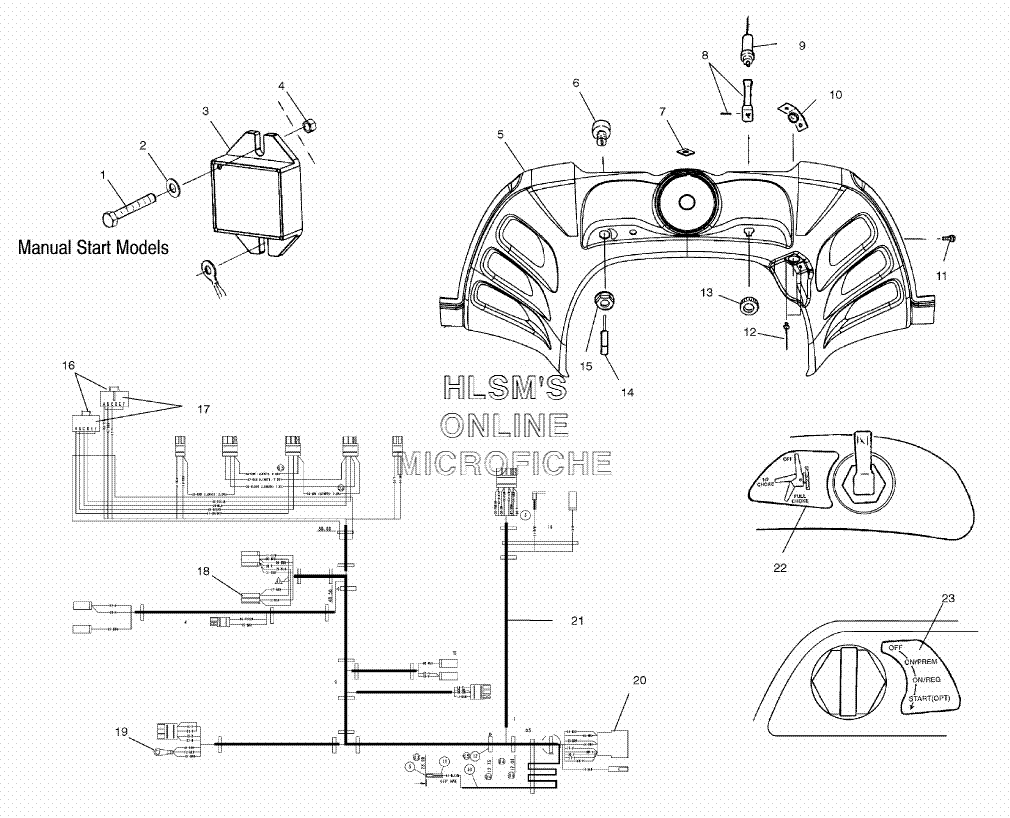

CONSOLE для Polaris 600 XC SP F/O EDGE (S02NP6ES) - 2002 года выпуска
-
№АртикулНазвание
-
17512031 BOLTBOLT
-
27555904 BURR, RIVETBURR, RIVET
-
34010301 REGULATOR (AC, 14.3 V)REGULATOR (AC, 14.3 V)
-
47541925 NUTNUT
-
55433724-070 CONSOLE, EDGE, BLACKCONSOLE, EDGE, BLACK
-
62201614 IGNITION SWITCH KIT (ES, FUEL)IGNITION SWITCH KIT (ES, FUEL)
-
77670101 CLIP, X, MAS TREECLIP, X, MAS TREE
-
82201439 CHOKE LEVER KIT [INCL. PIN]CHOKE LEVER KIT [INCL. PIN]
-
97080946 CABLE, CHOKE, RACK, EDGE [INCL. 8, 13]CABLE, CHOKE, RACK, EDGE [INCL. 8, 13]
-
105243049 GUIDE, RECOILGUIDE, RECOIL
-
117515199 SCREWSCREW
-
127621330 RIVET, POPRIVET, POP
-
135432944 NUT, CHOKENUT, CHOKE
-
149990000 CAP W/KEYCAP W/KEY
-
157547035 NUT, IGNITIONNUT, IGNITION
-
164010193 HOUSING, CONNECTOR (PAC #12186213)HOUSING, CONNECTOR (PAC #12186213)
-
174010192 SOCKET (PACKARD #12047767)SOCKET (PACKARD #12047767)
-
184020063 HOUSINGHOUSING
-
194020092 TERMINAL, RINGTERMINAL, RING
-
204020057 HOUSING (W/RECEPTACLE)HOUSING (W/RECEPTACLE)
-
212460792 HARNESS, MAIN WIRE (TPS, COMMON)HARNESS, MAIN WIRE (TPS, COMMON)
-
227170054 DECAL, CHOKEDECAL, CHOKE
-
237078605 DECAL (CONS., IGNITION, TPS)DECAL (CONS., IGNITION, TPS)
