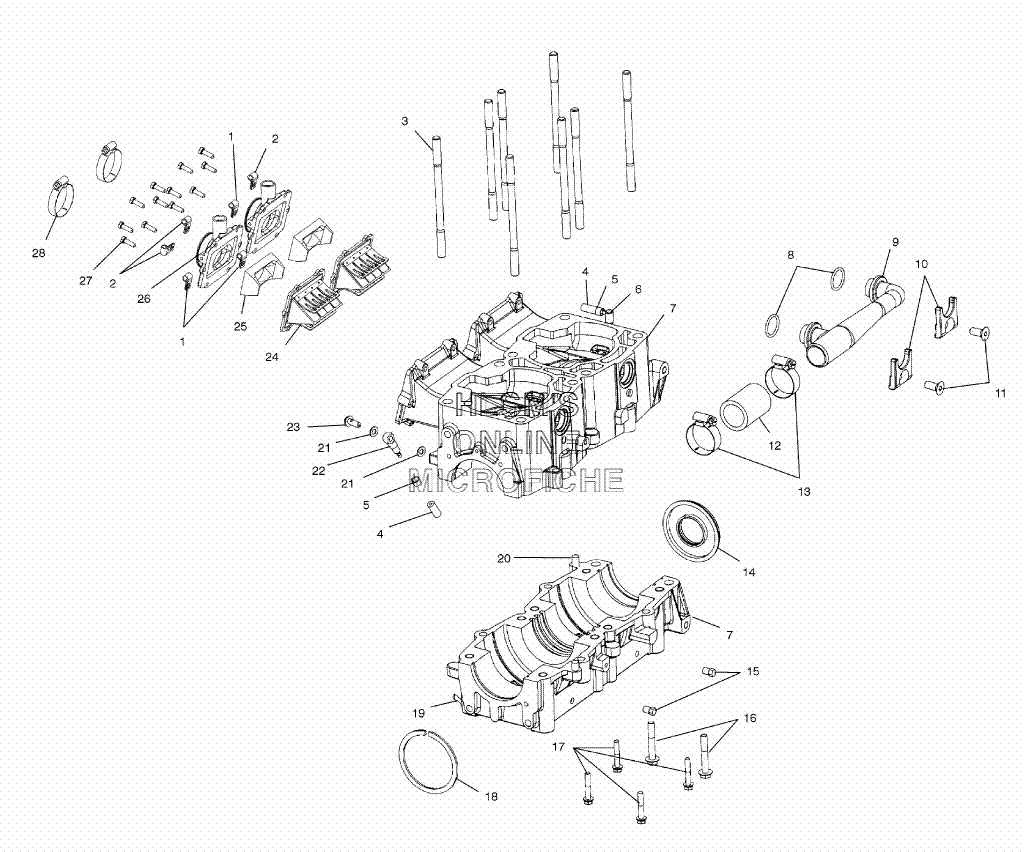

CRANKCASE ASSEMBLY для Polaris 700 RMK 136 (S02NJ7CS) - 2002 года выпуска
-
№АртикулНазвание
-
17080880 CLAMP, HOSECLAMP, HOSE
-
27080683 CLAMP, HOSECLAMP, HOSE
-
35131677 STUD, CYLINDER FLANGE (152MM)STUD, CYLINDER FLANGE (152MM)
-
48450061-600 FUELLINE (3MMX7MM)FUELLINE (3MMX7MM)
-
57080603 CLAMPCLAMP
-
67051020 VALVE, CHECK (90 DEG.)VALVE, CHECK (90 DEG.)
-
72201930 CRANKCASE KIT(INCL. 3, 7, 16, 17, 20)CRANKCASE KIT(INCL. 3, 7, 16, 17, 20)
-
85411125 O-RINGO-RING
-
95630610 MANIFOLD, WATER INLETMANIFOLD, WATER INLET
-
105243431 RETAINER, INLET WATER MANIFOLDRETAINER, INLET WATER MANIFOLD
-
117516736 SCREWSCREW
-
128450068-04 HOSEHOSE
-
137080560 CLAMPCLAMP
-
145411394 SEAL, FLANGEDSEAL, FLANGED
-
157051529 PLUGPLUG
-
167516919 SCREWSCREW
-
177516732 SCREWSCREW
-
187710441 RING, RETAININGRING, RETAINING
-
197052145 FITTINGFITTING
-
207663001 PIN, DOWELPIN, DOWEL
-
217555998 WASHER, FLATWASHER, FLAT
-
227052160 VALVE, CHECK OIL PUMPVALVE, CHECK OIL PUMP
-
237517319 SCREWSCREW
-
241201825 VALVE, REED ASSY.VALVE, REED ASSY.
-
255433151 STUFFER, REED BLOCKSTUFFER, REED BLOCK
-
261253327 ADAPTER, CARBADAPTER, CARB
-
277517398 SCREWSCREW
-
287080681 CLAMP, HOSECLAMP, HOSE
