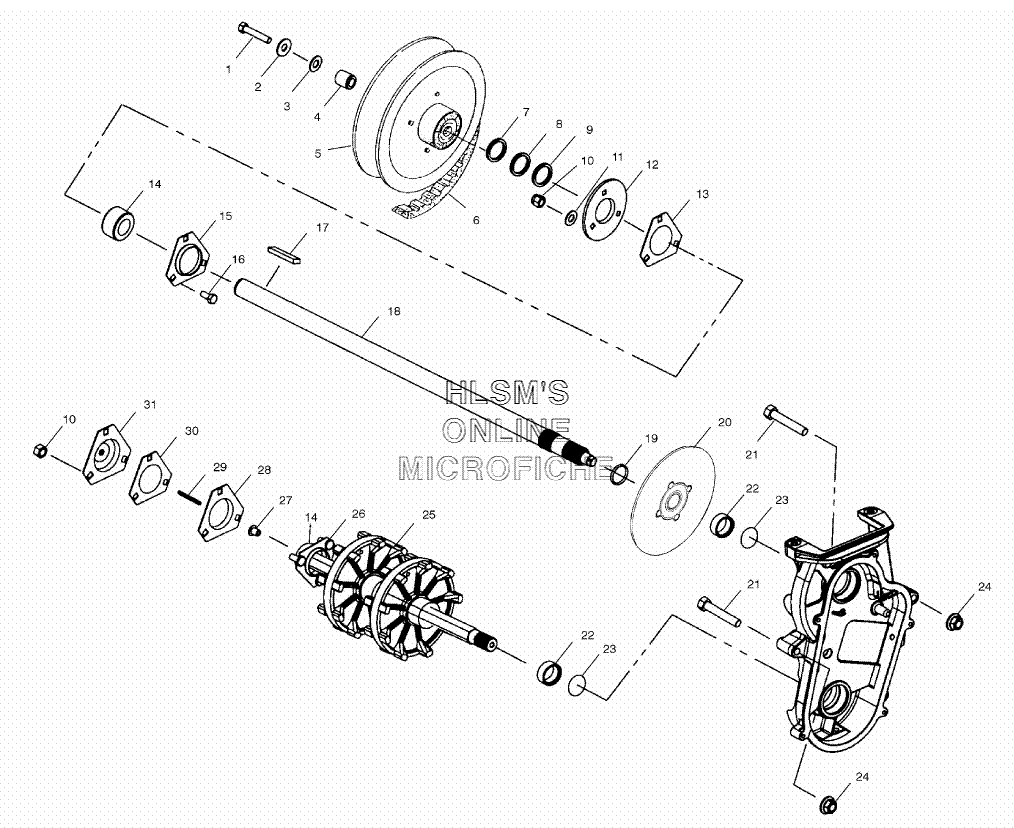

DRIVE TRAIN ASSEMBLY W/ DRIVE BELT для Polaris 700 RMK 136 (S02NJ7CS) - 2002 года выпуска
-
№АртикулНазвание
-
17517820 BOLTBOLT
-
27555701 WASHER, FLATWASHER, FLAT
-
37555734 WASHERWASHER
-
45020291 SPACERSPACER
-
51321927 DRIVEN CLUTCH ASSY.DRIVEN CLUTCH ASSY.
-
63211080 BELT, DRIVEBELT, DRIVE
-
77555917 WASHERWASHER
-
87555864 BUSHINGBUSHING
-
97556509 WASHER, SPECIALWASHER, SPECIAL
-
107542324 NUTNUT
-
117558402 WASHER, STEELWASHER, STEEL
-
125241359 FLANGE RD, RELUBE W/ZERKFLANGE RD, RELUBE W/ZERK
-
135811095 GASKET, JACKSHAFT (BLACK)GASKET, JACKSHAFT (BLACK)
-
143514525 BEARINGBEARING
-
155222751 FLANGETTEFLANGETTE
-
167512377 BOLTBOLT
-
177721128 KEYKEY
-
181332220 JACKSHAFT ASSY. (15 SPLINE) (INCL. 19)JACKSHAFT ASSY. (15 SPLINE) (INCL. 19)
-
197710422 RING, RETAININGRING, RETAINING
-
201910403 BRAKE DISC, SNOWBRAKE DISC, SNOW
-
217515428 BOLTBOLT
-
225020588 SLEEVE, SEALSLEEVE, SEAL
-
235410613 O-RINGO-RING
-
247542423 NUTNUT
-
251590313 DRIVESHAFT ASSY. (INCL. 26, 27)DRIVESHAFT ASSY. (INCL. 26, 27)
-
261012945 FLANGETTE ASSY., W/SCREWSFLANGETTE ASSY., W/SCREWS
-
273280019 BUSHING METAL SPEEDOBUSHING METAL SPEEDO
-
285243529 FLANGETTE, OFFSET W/HOLEFLANGETTE, OFFSET W/HOLE
-
293280017 SQ. KEY SPEEDOMETERSQ. KEY SPEEDOMETER
-
305830012 GASKET, DRIVE ADAPTORGASKET, DRIVE ADAPTOR
-
313280116 ADAPTER, DRIVE W/ZERKADAPTER, DRIVE W/ZERK
