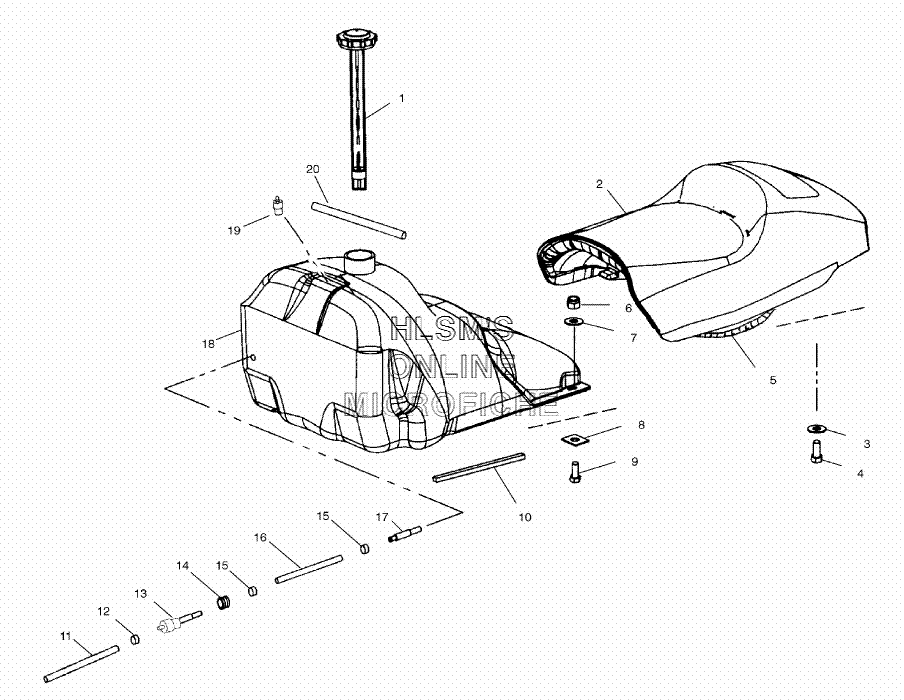

SEAT W/ GAS TANK ASSEMBLY для Polaris 700 RMK 136 (S02NJ7CS) - 2002 года выпуска
-
№АртикулНазвание
-
11240066 CAP, FUEL W/GAUGECAP, FUEL W/GAUGE
-
22682778 SEAT, EDGE ASSY. (INCL. 2, 5)SEAT, EDGE ASSY. (INCL. 2, 5)
-
22682779 SEAT COVER ASSY.SEAT COVER ASSY.
-
37558301 WASHERWASHER
-
47512232 BOLTBOLT
-
52460935 HARNESS, TAILLIGHTHARNESS, TAILLIGHT
-
67542122 NUT, LOCKNUT, LOCK
-
77555960 WASHERWASHER
-
87670021 SPEED, NUTSPEED, NUT
-
97512193 BOLTBOLT
-
105810947 SEAL, FOAM REAR COOLERSEAL, FOAM REAR COOLER
-
118350017-160 FUEL, LINE ETHER RED (5/16'')FUEL, LINE ETHER RED (5/16'')
-
127080003 CLAMP, HOSECLAMP, HOSE
-
137052269 FITTINGFITTING
-
145432981 GROMMETGROMMET
-
157080768 RING, COMPRESSIONRING, COMPRESSION
-
168350020-160 FUEL, LINEFUEL, LINE
-
177052215 PICK, UP FUEL W/MESHPICK, UP FUEL W/MESH
-
182520262 FUEL TANK ASSY.FUEL TANK ASSY.
-
197052095 FITTINGFITTING
-
208450061-600 FUELLINE (3MMX7MM)FUELLINE (3MMX7MM)
