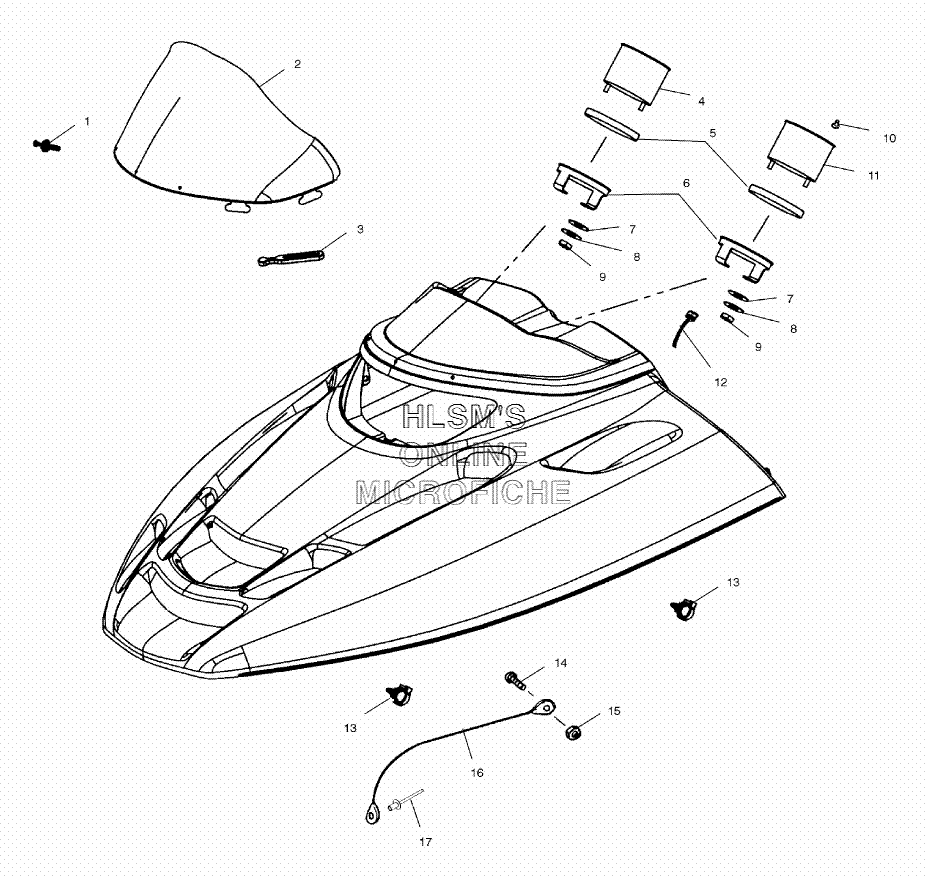

HOOD ASSEMBLY W/ WINDSHIELD для Polaris 700 RMK 136 (S02NJ7CS) - 2002 года выпуска
-
№АртикулНазвание
-
17621509 RIVET, PLASTIRIVET, PLASTI
-
25434324 WINDSHIELD (15'') (SMOKE)WINDSHIELD (15'') (SMOKE)
-
35410970 RETAINER, WINDSHIELDRETAINER, WINDSHIELD
-
43280329 TACHMETER (6 P, WHITE W/FUEL LIGHT)TACHMETER (6 P, WHITE W/FUEL LIGHT)
-
44030015 BULB (TAILLIGHT/TACH/SPEEDO)BULB (TAILLIGHT/TACH/SPEEDO)
-
53280209 CUSHION, RUBBER (TACH/SPEEDO)CUSHION, RUBBER (TACH/SPEEDO)
-
63280210 BRACKET, (TACH/SPEEDO 5'')BRACKET, (TACH/SPEEDO 5'')
-
73280157 WASHER, FLATWASHER, FLAT
-
83280156 WASHER, SPLIT LOCKWASHER, SPLIT LOCK
-
93280158 NUTNUT
-
103280186 KNOB, TRIP ODOMETER (LEFT)KNOB, TRIP ODOMETER (LEFT)
-
113280348 SPEEDOMETER (5'', 120MPH, WH, W/OANG)SPEEDOMETER (5'', 120MPH, WH, W/OANG)
-
114030015 BULB (TAILLIGHT/TACH/SPEEDO)BULB (TAILLIGHT/TACH/SPEEDO)
-
123280385 CABLE, SPEEDOMETERCABLE, SPEEDOMETER
-
134010589 CLIP, PLASTIC DART NYLONCLIP, PLASTIC DART NYLON
-
147512018 SCREWSCREW
-
157541925 NUTNUT
-
167080521 CABLE, HOOD RETAINERCABLE, HOOD RETAINER
-
177661637 RIVET, INTERLOCKRIVET, INTERLOCK
