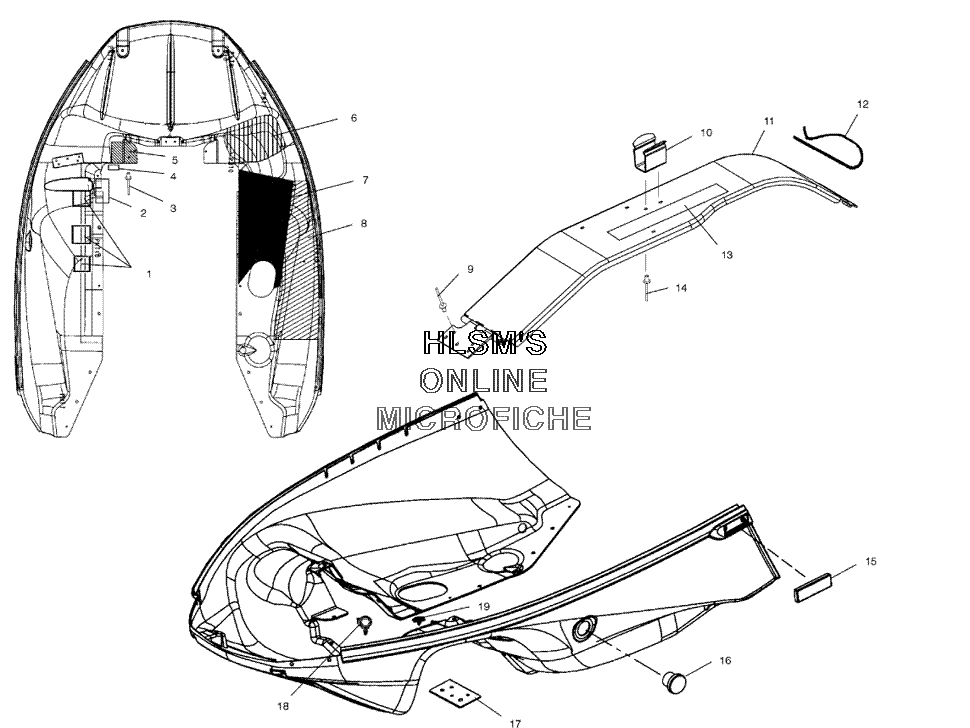

NOSEPAN ASSEMBLY #1 для Polaris 700 RMK F/O 144 BUILT AFTER 3/1/01 (S02NK7CS) - 2002 года выпуска
-
№АртикулНазвание
-
17670130 SPD-CLIP-"U" TYPE(C-53791-014)SPD-CLIP-"U" TYPE(C-53791-014)
-
25811948 FOIL-4.5X1.0FOIL-4.5X1.0
-
37621435 RIVETRIVET
-
47080963 RETAINER-"J"CLPRETAINER-"J"CLP
-
55812020 FOIL, TAPEFOIL, TAPE
-
65812271 FOILFOIL
-
75812019 FOIL, TAPE, LWR (RIGHT)FOIL, TAPE, LWR (RIGHT)
-
85812018 FOIL, TAPE, UPPER (RIGHT)FOIL, TAPE, UPPER (RIGHT)
-
97621402 RIVET, POPRIVET, POP
-
105222769 CLIP, BELT RETAINERCLIP, BELT RETAINER
-
111013069 CLUTCH GUARD ASSY.CLUTCH GUARD ASSY.
-
127080698 PIN, CLUTCH GUARDPIN, CLUTCH GUARD
-
137075350 DECAL, ENGINE AND CLUTCH(CPSC)DECAL, ENGINE AND CLUTCH(CPSC)
-
147621429 RIVETRIVET
-
152670134 REFLECTOR ASSY., AMBERREFLECTOR ASSY., AMBER
-
165433926 PLUG, OBLONGPLUG, OBLONG
-
175211722 PLATE, BACKERPLATE, BACKER
-
184020149 CLIP, ROSEBUDCLIP, ROSEBUD
-
197670131 PLUG-NYLON, .322X.480PLUG-NYLON, .322X.480
