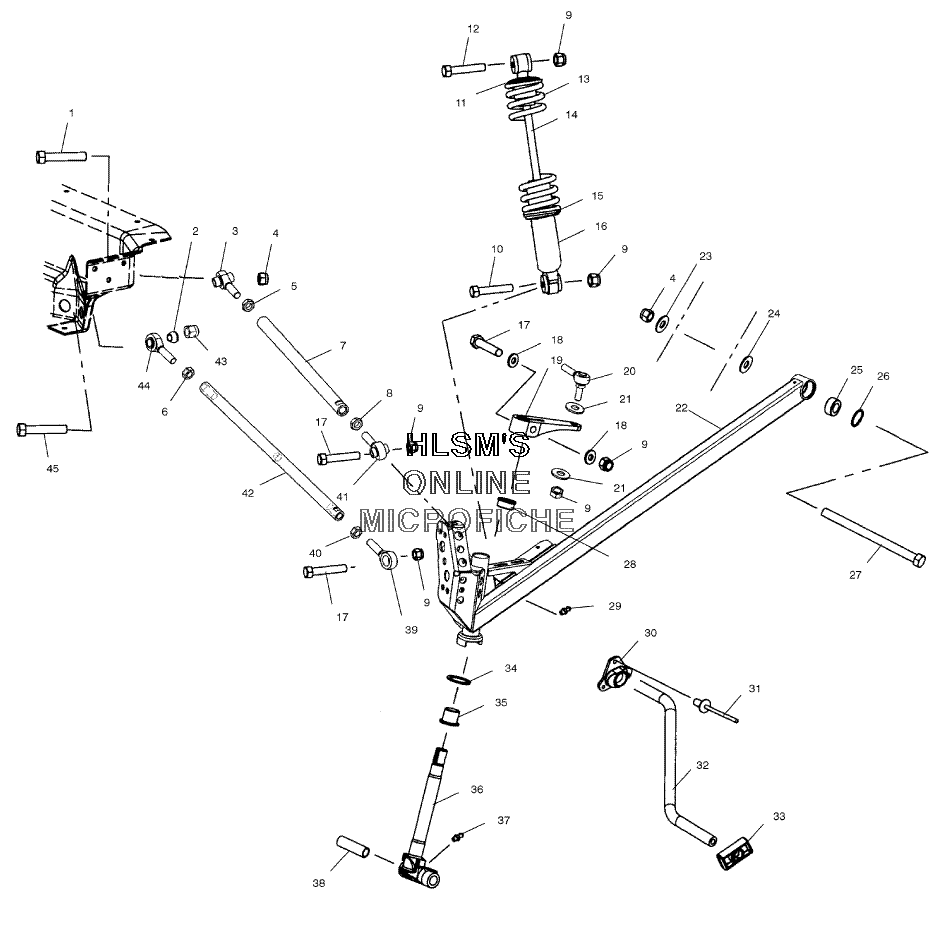

SUSPENSION - FRONT для Polaris 700 RMK F/O 144 BUILT AFTER 3/1/01 (S02NK7CS) - 2002 года выпуска
-
№АртикулНазвание
-
17512597 BOLT-7/16-20X2.75, HXCAP, GR5, YBOLT-7/16-20X2.75, HXCAP, GR5, Y
-
25132454 BUSHING, SPACERBUSHING, SPACER
-
37061081 ROD END-RADIUS (LEFT), 7/16ROD END-RADIUS (LEFT), 7/16
-
47547066 NUT-7/16-20, NYLOK, YNUT-7/16-20, NYLOK, Y
-
57547117 NUT (LEFT)NUT (LEFT)
-
67547028 NUT, JAM (LEFT)NUT, JAM (LEFT)
-
75133137 TUBE-RADIUS ROD, UPPER, CLD SLVTUBE-RADIUS ROD, UPPER, CLD SLV
-
87542520 NUT, JAMNUT, JAM
-
97542439 NUT, NYLOKNUT, NYLOK
-
107515433 SCREWSCREW
-
115630580 RETAINER, SPRING, SLOTTEDRETAINER, SPRING, SLOTTED
-
127515415 SCREWSCREW
-
137041551-293 SPRINGSPRING
-
147041966 SHOCK-IFS, NITREX (EDGE), RMKSHOCK-IFS, NITREX (EDGE), RMK
-
155431734 RING, SPRING PRELOAD ADJ.RING, SPRING PRELOAD ADJ.
-
161500063 RETAINER, SPRING, BODY, THREADEDRETAINER, SPRING, BODY, THREADED
-
177517583 SCR-3/8-24X2 HX/CP GR5-Y-SPSCR-3/8-24X2 HX/CP GR5-Y-SP
-
187555832 WASHERWASHER
-
195133060 ARM-STEERING MACHINEDARM-STEERING MACHINED
-
207061086 ROD-END 3/8, 50Ш, 1.00 (RIGHT)ROD-END 3/8, 50Ш, 1.00 (RIGHT)
-
217555797 WASHER, FLATWASHER, FLAT
-
221820942-293 TRAILING ARM ASSY., SVC (LEFT), RED (INCL. 25, 26)TRAILING ARM ASSY., SVC (LEFT), RED (INCL. 25, 26)
-
221820943-293 TRAILING ARM ASSY., SVC (RIGHT), RED (INCL. 25, 26)TRAILING ARM ASSY., SVC (RIGHT), RED (INCL. 25, 26)
-
237555820 WASHER, FLATWASHER, FLAT
-
245132364 CUP, TRAILING ARM MNTCUP, TRAILING ARM MNT
-
257061016 BEARING-SPHERICAL, 7/16, NYLONBEARING-SPHERICAL, 7/16, NYLON
-
267710437 RING, RETAININGRING, RETAINING
-
277512099 SCREWSCREW
-
283573909 BUSHING-FLANGEBUSHING-FLANGE
-
297080433 FITTING, LUBRICATION, THREADED(10FITTING, LUBRICATION, THREADED(10
-
305433814 BUSHING, TORS.BAR, 9/16"BUSHING, TORS.BAR, 9/16"
-
317621477 RIVET,RIVET,
-
325245217-067 BAR-TORSION, 9/16 (EDGE) RMK (BLACK)BAR-TORSION, 9/16 (EDGE) RMK (BLACK)
-
335433885 SLIDE-TORSION BAR, 9/16SLIDE-TORSION BAR, 9/16
-
347556509 BUSHINGBUSHING
-
353574208 BUSHING, FLANGEDBUSHING, FLANGED
-
366230155-067 SHAFT-SPINDLE, W/STEER STOP (BLACK)SHAFT-SPINDLE, W/STEER STOP (BLACK)
-
377080306 FITTING, LUBE.W/BALL CK.FITTING, LUBE.W/BALL CK.
-
385010158 BUSHING, PIVOTBUSHING, PIVOT
-
397061060 ROD END, RADIUS, 1/2ROD END, RADIUS, 1/2
-
407542711 NUT-JAMNUT-JAM
-
417061061 ROD END, RADIUS, 7/16ROD END, RADIUS, 7/16
-
425132953 TUBE-RADIUS ROD, LOWERTUBE-RADIUS ROD, LOWER
-
437547065 NUT-1/2-20, NYLOK, YNUT-1/2-20, NYLOK, Y
-
447061082 ROD END-RADIUS (LEFT), LOWERROD END-RADIUS (LEFT), LOWER
-
457512684 BOLTBOLT
