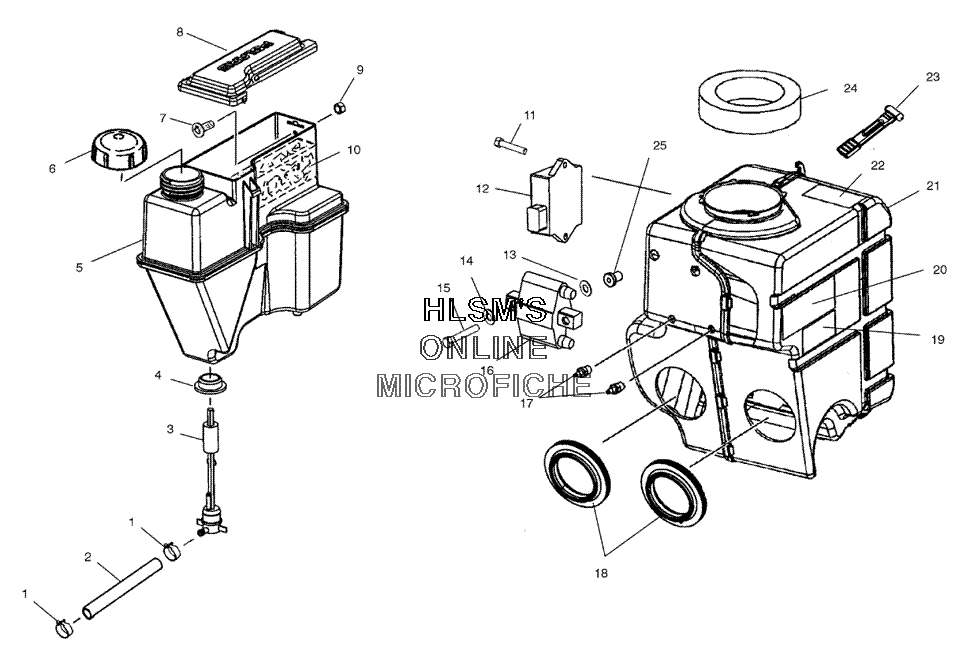

OIL TANK W/ AIR BOX ASSEMBLY для Polaris 700 RMK F/O 144 BUILT AFTER 3/1/01 (S02NK7CS) - 2002 года выпуска
-
№АртикулНазвание
-
17080307 CLAMP, HOSECLAMP, HOSE
-
28450003-1525 LINE, FUEL, 1/4 ID(1525 CM.)LINE, FUEL, 1/4 ID(1525 CM.)
-
34010550 FITTING-OIL SENDERFITTING-OIL SENDER
-
47052305 GROMMET-OIL SENDERGROMMET-OIL SENDER
-
51253396 OIL TANK ASSY. W/SENDING UNITOIL TANK ASSY. W/SENDING UNIT
-
61240094 CAP-OIL, VENTED/CUSTOM COLORCAP-OIL, VENTED/CUSTOM COLOR
-
77512297 SCREWSCREW
-
85434089 COVER-TOOL BOXCOVER-TOOL BOX
-
97542122 NUT-NYLOKNUT-NYLOK
-
105812209 FOAMFOAM
-
117512095 SCREWSCREW
-
137555932 WASHER, NYLONWASHER, NYLON
-
147552604 WASHERWASHER
-
157517610 SCREWSCREW
-
177052127 FITTING, HOSEFITTING, HOSE
-
185411109 BOOT-CARBURETOR, 70 DUROBOOT-CARBURETOR, 70 DURO
-
197073426 DECAL, GREASINGDECAL, GREASING
-
207073820 DECAL, ADJ.DRIVEN CLUTCHDECAL, ADJ.DRIVEN CLUTCH
-
211253399 AIR SILENCER ASSY. (EDGE) (INCL. DECALS)AIR SILENCER ASSY. (EDGE) (INCL. DECALS)
-
227075351 DECAL, CAUTIONDECAL, CAUTION
-
235433150 STRAPSTRAP
-
245811983 FOAM, CHIMNEYFOAM, CHIMNEY
-
257547103 NUT, WELLNUT, WELL
