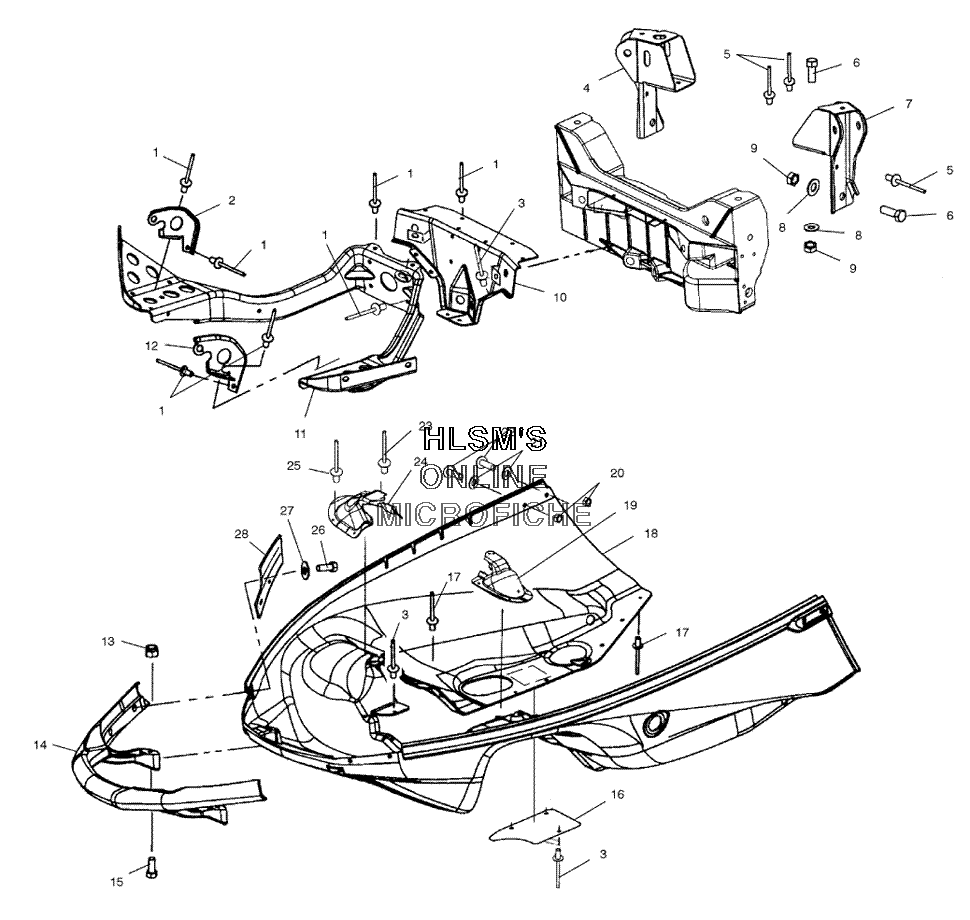

NOSEPAN ASSEMBLY #2 для Polaris 700 RMK F/O 144 BUILT AFTER 3/1/01 (S02NK7CS) - 2002 года выпуска
-
№АртикулНазвание
-
17661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
-
25243992-067 HINGE-LOWER PIVOT (BLACK) (RIGHT)HINGE-LOWER PIVOT (BLACK) (RIGHT)
-
37621472 RIVETRIVET
-
41821108-067 WELD-SHOCK TOWER, 2.5 (RIGHT) (BLACK)WELD-SHOCK TOWER, 2.5 (RIGHT) (BLACK)
-
57661130 RIVET-3/16-.214-.420RIVET-3/16-.214-.420
-
67515440 BOLTBOLT
-
71821107-067 WELD-SHOCK TOWER, 2.5 (LEFT) (BLACK)WELD-SHOCK TOWER, 2.5 (LEFT) (BLACK)
-
87556153 WASHER, 3/8 FWWASHER, 3/8 FW
-
97542451 NUT, NYLOKNUT, NYLOK
-
101821136-067 WELD-RAD ROD SUPPORT (BLACK)WELD-RAD ROD SUPPORT (BLACK)
-
115244050 BRACE, PAN LOWERBRACE, PAN LOWER
-
125243991-067 HINGE-LOWER PIVOT (LEFT) (BLACK)HINGE-LOWER PIVOT (LEFT) (BLACK)
-
137542153 NUT, NYLOK, FLANGEDNUT, NYLOK, FLANGED
-
145433518-070 BUMPER ASSY., FRONT (BLACK)BUMPER ASSY., FRONT (BLACK)
-
157512163 BOLTBOLT
-
165243849 SHIELD, HEAT, EXTENDEDSHIELD, HEAT, EXTENDED
-
177621467 RIVET, BLINDRIVET, BLIND
-
185434187-358 NOSEPAN-HIGH SHOCKS, STN SLVNOSEPAN-HIGH SHOCKS, STN SLV
-
195434237 COVER-SHOCK TOWER (LEFT)COVER-SHOCK TOWER (LEFT)
-
207542122 NUT-NYLOKNUT-NYLOK
-
217555827 WASHERWASHER
-
227515166 SCREWSCREW
-
237621418 RIVET, POPRIVET, POP
-
245434238 COVER-SHOCK TOWER (RIGHT)COVER-SHOCK TOWER (RIGHT)
-
257621485 RIVETRIVET
-
267517312 SCREWSCREW
-
277552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
285244888 GUIDE-HOOD (LEFT)GUIDE-HOOD (LEFT)
-
285244889 GUIDE-HOOD (RIGHT)GUIDE-HOOD (RIGHT)
