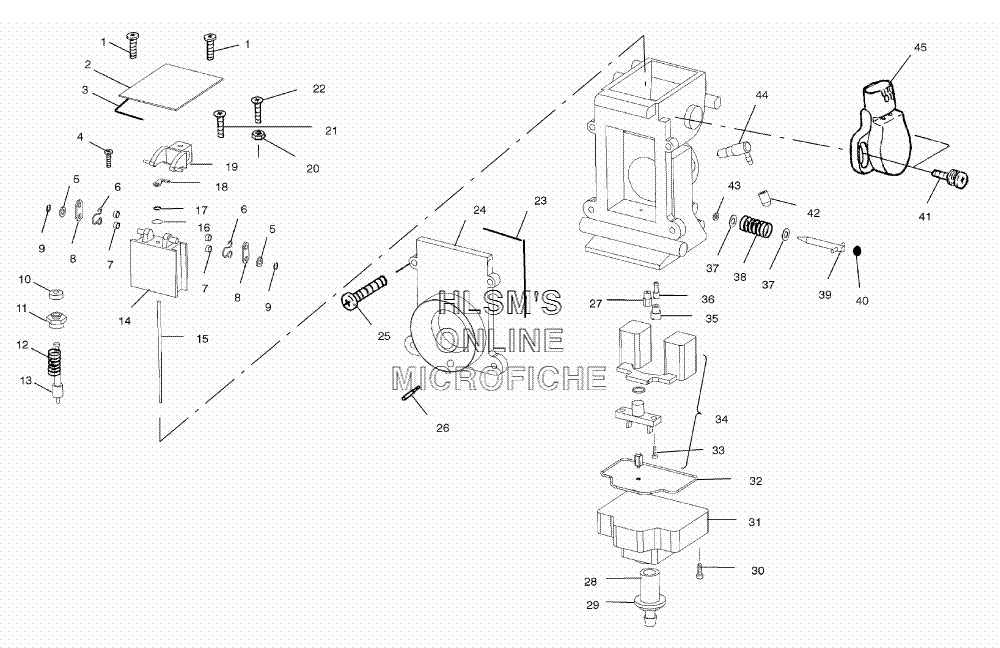

CARBURETOR ASSEMBLY для Polaris 800 XC SP STOCK (S02NP8CSA) - 2002 года выпуска
-
№АртикулНазвание
-
1A1253401 CARB TM-40 800, 02 XCSP ASSY.CARB TM-40 800, 02 XCSP ASSY.
-
13130951 SCREWSCREW
-
23130872 CAP, TOPCAP, TOP
-
33130871 GASKETGASKET
-
43130844 SCREWSCREW
-
53130846 WASHER, PACKINGWASHER, PACKING
-
63130856 CLIPCLIP
-
73130845 RINGRING
-
83130857 PLATEPLATE
-
93130847 E-RINGE-RING
-
103130831 CAP, STARTER (RUBBER)CAP, STARTER (RUBBER)
-
113130830 HOLDER, STARTER GUIDEHOLDER, STARTER GUIDE
-
123130829 SPRING, STARTERSPRING, STARTER
-
133130828 PLUNGER ASSY.PLUNGER ASSY.
-
143130940 VALVE, PISTON 1.5 [1.5]VALVE, PISTON 1.5 [1.5]
-
153131313 NEEDLE, JET (J8-9DFH10-57)NEEDLE, JET (J8-9DFH10-57)
-
163130867 PACKINGPACKING
-
173130868 E-RINGE-RING
-
183130843 PLATEPLATE
-
193130855 LEVER ASSY.LEVER ASSY.
-
193130849 LEVER ASSY.LEVER ASSY.
-
203130848 RINGRING
-
213130854 SCREWSCREW
-
223130850 SCREWSCREW
-
233130870 O-RING, AIR FUNNELO-RING, AIR FUNNEL
-
243131230 FUNNEL ASSY.FUNNEL ASSY.
-
253130825 SCREW, AIR FUNNELSCREW, AIR FUNNEL
-
263130993 JETJET
-
273130149 JET, MAIN (HX.HD#500)JET, MAIN (HX.HD#500)
-
283131248 BOLT, DRAINBOLT, DRAIN
-
293130863 O-RING, DRAIN SCREWO-RING, DRAIN SCREW
-
303130824 SCREW, FLOAT BOWLSCREW, FLOAT BOWL
-
313130858 FLOAT, BODYFLOAT, BODY
-
323130861 O-RING, FLOAT BOWLO-RING, FLOAT BOWL
-
333130860 SCREW, VALVE SEATSCREW, VALVE SEAT
-
343131231 ASSY., FLOAT (1.8)ASSY., FLOAT (1.8)
-
353130070 JET, PILOT (#55)JET, PILOT (#55)
-
363130769 JET, STARTER (#VM11/22-145)JET, STARTER (#VM11/22-145)
-
373130837 WASHERWASHER
-
383130836 SPRINGSPRING
-
393130987 ADJUSTERADJUSTER
-
403130986 CAPCAP
-
413131010 SCREWSCREW
-
423130479 CAPCAP
-
433130835 PACKINGPACKING
-
447051020 VALVE, CHECK (90 DEG.)VALVE, CHECK (90 DEG.)
-
453131009 SENSOR ASSY..SENSOR ASSY..
