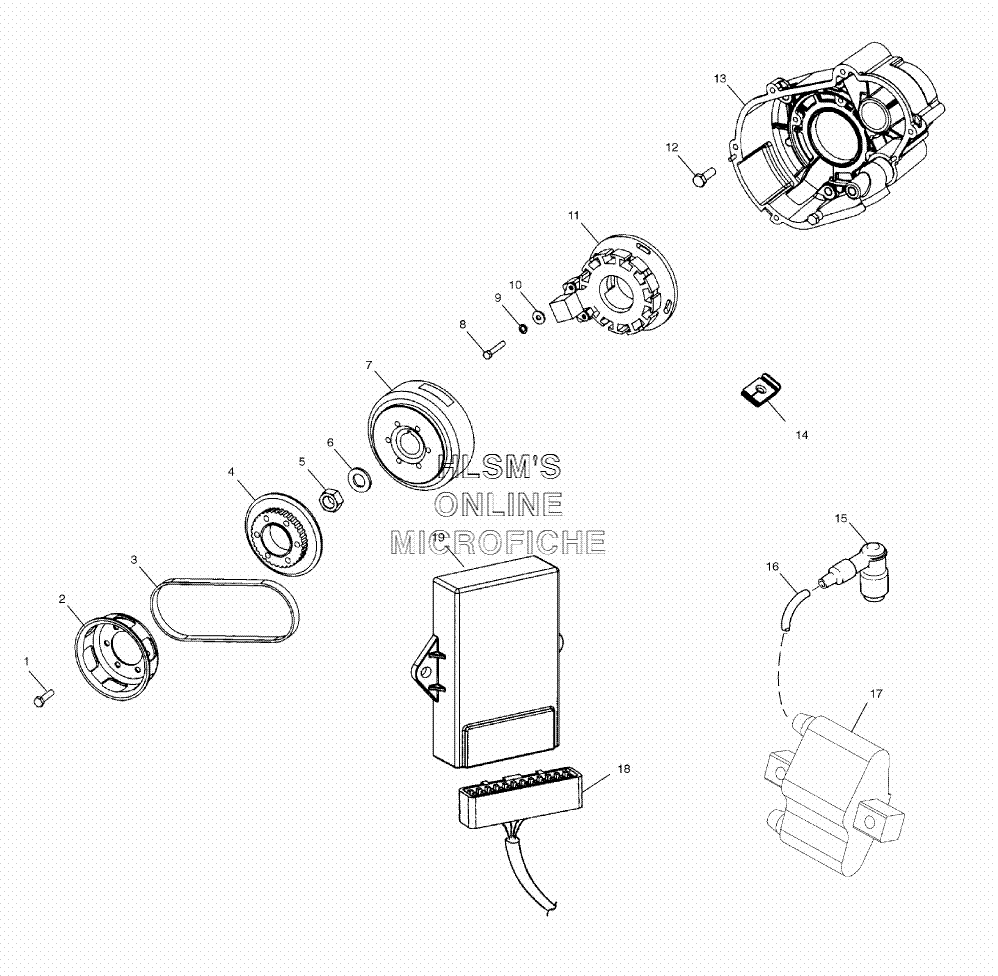

ELECTRICAL - MAGNETO ASSEMBLY W/ COIL для Polaris 800 XC SP STOCK (S02NP8CSA) - 2002 года выпуска
-
№АртикулНазвание
-
17516823 SCREWSCREW
-
23021144 PULLEY, RECOIL, 700 BASEPULLEY, RECOIL, 700 BASE
-
35411998 WATERPUMP BELT KITWATERPUMP BELT KIT
-
45630824 PULLEY, WATERPUMPDRIVEPULLEY, WATERPUMPDRIVE
-
57546909 NUTNUT
-
67555907 WASHERWASHER
-
74010629 FLYWHEEL-IGN SNO KOK W/O GLUEFLYWHEEL-IGN SNO KOK W/O GLUE
-
87517246 SCREWSCREW
-
97555969 WASHER, LOCKWASHER, LOCK
-
107555970 WASHER, FLATWASHER, FLAT
-
114010297 STATOR, IGNITION, SNOW, TWNSTATOR, IGNITION, SNOW, TWN
-
127516734 SCREWSCREW
-
131202161 HOUSING, IGN., ASSY.HOUSING, IGN., ASSY.
-
145411178 GROMMET, STATOR WIRESGROMMET, STATOR WIRES
-
154020155 CAP, SPARKPLUGCAP, SPARKPLUG
-
164010124-305 WIRE, IGN, BULK, 305CM.WIRE, IGN, BULK, 305CM.
-
174060229 COIL, IGNITION SNO, KOKCOIL, IGNITION SNO, KOK
-
184010279 HARNESS, IGN, SNO, KOKHARNESS, IGN, SNO, KOK
-
192201925 CDI KIT S80-70 4010515 [INCL. 19, NYOGEL AND DECAL]CDI KIT S80-70 4010515 [INCL. 19, NYOGEL AND DECAL]
-
197077026 DECAL, SPARKPLUG REC.DECAL, SPARKPLUG REC.
