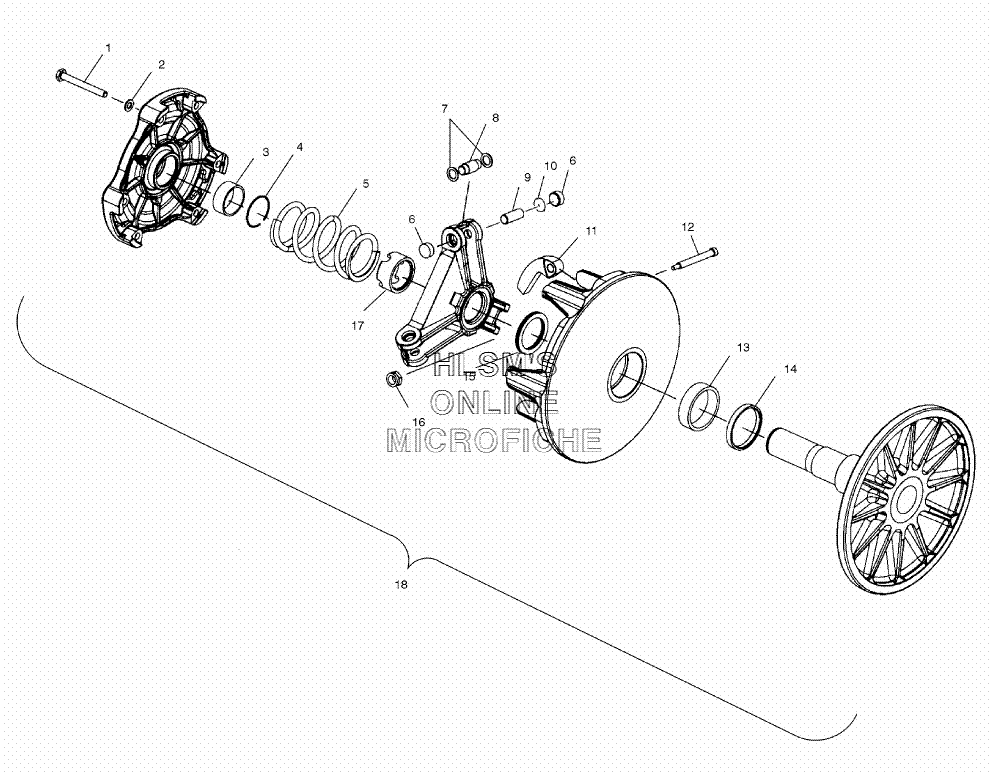

CLUTCH DRIVE (MANUAL START MODELS) для Polaris 800 XC SP STOCK (S02NP8CSA) - 2002 года выпуска

№

Артикул

Название
1

7512265 BOLT

BOLT

630 ₽
2

7552801 LOCK WASHER

LOCK WASHER

460 ₽
3

3514347 COVER, BEARING, GARMAX

COVER, BEARING, GARMAX

6 030 ₽
4

7710417 RING, RETAINING, BOLT

RING, RETAINING, BOLT

150 ₽
5

7041781 SPRING, CLUTCH (DARK BLUE/WHITE)

SPRING, CLUTCH (DARK BLUE/WHITE)

9 780 ₽
6

5434188 BUTTON, GUIDE, TWIN

BUTTON, GUIDE, TWIN

2 500 ₽
7

5430945 WASHER

WASHER

420 ₽
8

1321622 ROLLER AND BUSHING ASSY.

ROLLER AND BUSHING ASSY.

8 110 ₽
9

5133054 PIN, ROLLER (1-1/8)

PIN, ROLLER (1-1/8)

3 750 ₽
10

2200387 KIT, SHIM, DRIVE CLUTCH

KIT, SHIM, DRIVE CLUTCH

2 910 ₽
11

1321584 WT/BUSH.ASSY. (10-66)

WT/BUSH.ASSY. (10-66)

6 240 ₽
12

7515105 PIN, WT., HARDENED

PIN, WT., HARDENED

1 870 ₽
13

3576502 SLEEVE, BEARING

SLEEVE, BEARING

4 990 ₽
14

5010188 BUSHING, RETAINER

BUSHING, RETAINER

1 520 ₽
15

5210754 SPACER [.050MM]

SPACER [.050MM]

580 ₽
15

5210753 SPACER [.032MM]

SPACER [.032MM]

420 ₽
15

5242981 SPACER [.025MM]

SPACER [.025MM]

260 ₽
15

5210752 SPACER [.020MM]

SPACER [.020MM]

110 ₽
16

7541906 NUT FLEX LOC

NUT FLEX LOC

250 ₽
17

5020425 NUT, JAM

NUT, JAM

4 370 ₽
18

1321880 DRIVE CLUTCH ASSY., BASIC.108 [INCL. ALL LESS 5, 11]

DRIVE CLUTCH ASSY., BASIC.108 [INCL. ALL LESS 5, 11]

118 460 ₽
