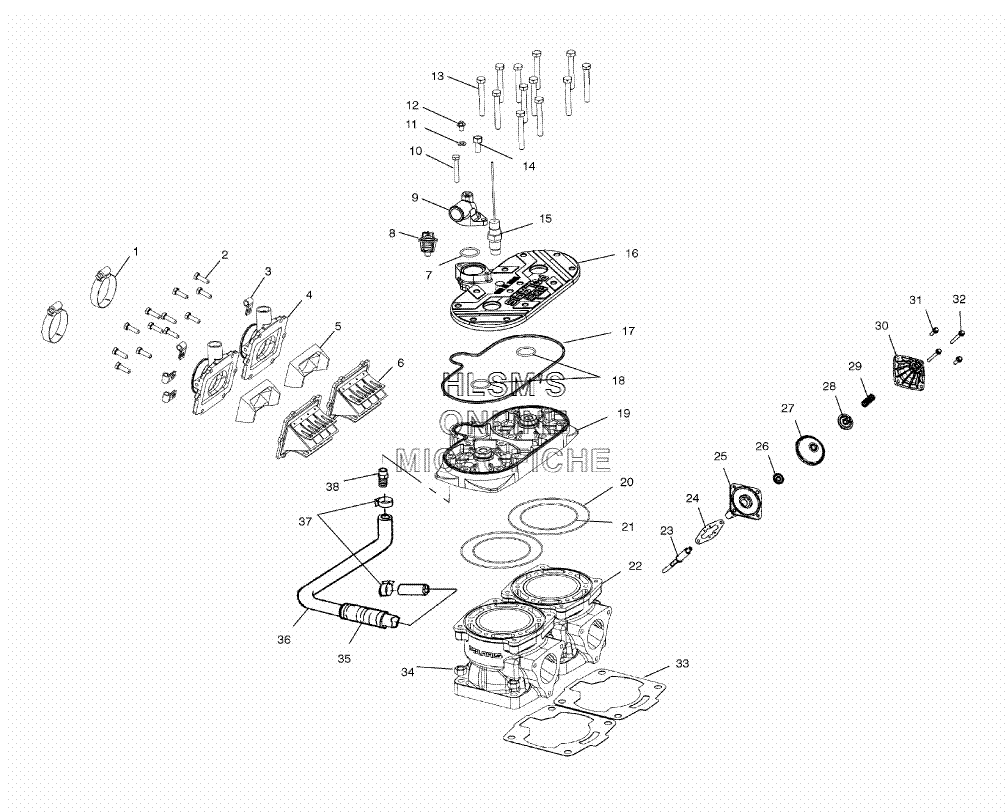

CYLINDER ASSEMBLY для Polaris 800 XC SP STOCK (S02NP8CSA) - 2002 года выпуска
-
№АртикулНазвание
-
17080681 CLAMP, HOSE S.S.CLAMP, HOSE S.S.
-
27517398 SCREWSCREW
-
37080683 CLAMP, HOSECLAMP, HOSE
-
41253327 ADAPTER, CARB. (40MM)ADAPTER, CARB. (40MM)
-
55433151 STUFFER, REED BLOCK, NOKSTUFFER, REED BLOCK, NOK
-
61201825 VALVE, REED ASSY.VALVE, REED ASSY.
-
75411521 O-RING, LIPSEALO-RING, LIPSEAL
-
87052258 THERMOSTAT (120ШF W/O BYPASS)THERMOSTAT (120ШF W/O BYPASS)
-
95630992 COVER, THERMOSTAT M6 BLEED LGCOVER, THERMOSTAT M6 BLEED LG
-
107516818 SCREWSCREW
-
117555998 WASHER, FLATWASHER, FLAT
-
127517679 SCREW (M6X1.0 X 13, SL/HX/FL-Z)SCREW (M6X1.0 X 13, SL/HX/FL-Z)
-
137517534 SCREW (M8X1.25X60)SCREW (M8X1.25X60)
-
147516822 SCREWSCREW
-
154010398 SENSOR, TEMPERATURE (ESX8477A)SENSOR, TEMPERATURE (ESX8477A)
-
165631202-366 COVER, HEAD 85MM 800 RED E-COATCOVER, HEAD 85MM 800 RED E-COAT
-
175411294 SEAL, RUBBER HEADSEAL, RUBBER HEAD
-
185410917 O-RINGO-RING
-
193021294 HEAD, CYLINDER 85MM TWNHEAD, CYLINDER 85MM TWN
-
205410931 O-RINGO-RING
-
215411675 O-RING (3.625X3.765X.07) HI-TMPO-RING (3.625X3.765X.07) HI-TMP
-
223021329 CYLINDER 85MM EV W/ DECOMCYLINDER 85MM EV W/ DECOM
-
231202112 VALVE, GUILLOTINE 800 DECOMVALVE, GUILLOTINE 800 DECOM
-
245812350 GASKET, BASE TO CYLINDER EXHAUST VALVEGASKET, BASE TO CYLINDER EXHAUST VALVE
-
251202216 BASE, EXHAUST VALVE DOM ASSY.BASE, EXHAUST VALVE DOM ASSY.
-
265132950 WASHER, BELLOWS, EXHAUST VALVE DOMWASHER, BELLOWS, EXHAUST VALVE DOM
-
275412147 BELLOWS, EXHAUST VALVE FABRICBELLOWS, EXHAUST VALVE FABRIC
-
285631152 CAP NUT, BELLOWS-EXH VALVE DOMCAP NUT, BELLOWS-EXH VALVE DOM
-
297041786-07 SPRING, COMP, GEN 3.5EV PRPL/WHTSPRING, COMP, GEN 3.5EV PRPL/WHT
-
305434175 HOUSING, BELLOWS EXHAUST VALVE BUSHHOUSING, BELLOWS EXHAUST VALVE BUSH
-
317516820 SCREWSCREW
-
327517932 SCREW (M6X1.0X50.0 HX/FL-YD)SCREW (M6X1.0X50.0 HX/FL-YD)
-
335811784 GASKET, CYLINDER BASEGASKET, CYLINDER BASE
-
347547013 NUTNUT
-
355521398-96 CONDUIT, FLEX (.75''ID)CONDUIT, FLEX (.75''ID)
-
365411536 HOSE, BYPASSHOSE, BYPASS
-
377081030 CLAMP, BYPASS NORMA #24-15CLAMP, BYPASS NORMA #24-15
-
387052222 FITTING, HOSE (1/2ID)FITTING, HOSE (1/2ID)
