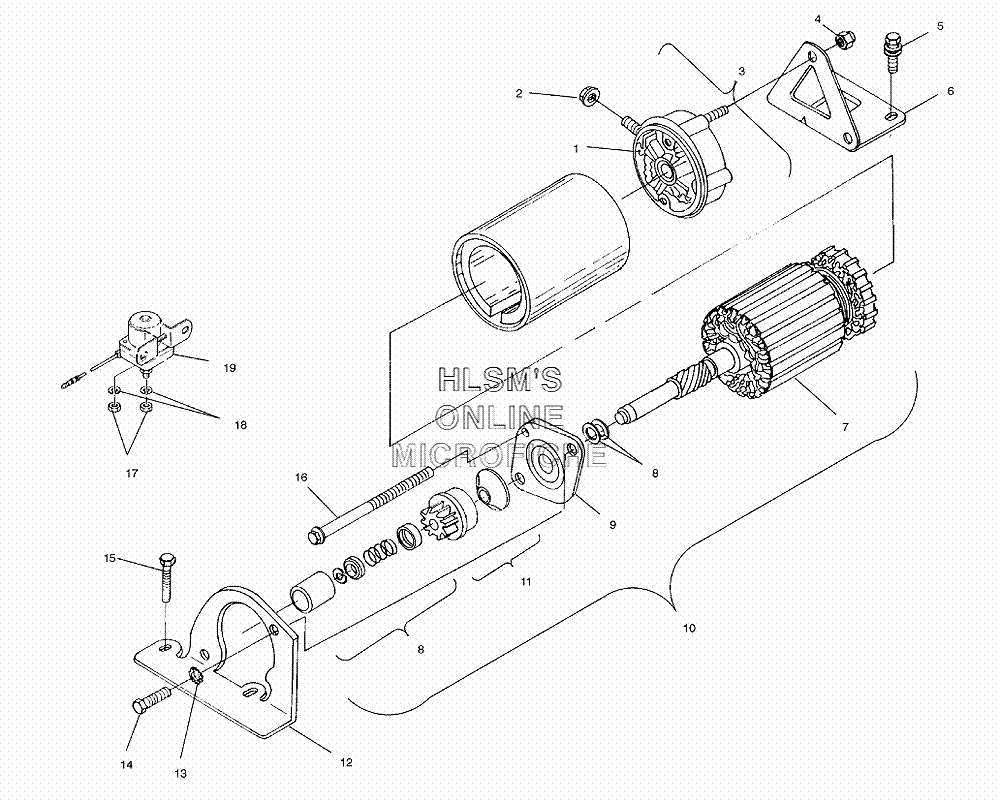

STARTING MOTOR для Polaris WIDETRAK LX (S02SU4BS) - 2002 года выпуска
-
№АртикулНазвание
-
12200759 BRUSH AND SPRING KITBRUSH AND SPRING KIT
-
27542103 NUT, LOCKNUT, LOCK
-
32200758 COMMUTATOR CAP ASSY. KIT (INCL. 1)COMMUTATOR CAP ASSY. KIT (INCL. 1)
-
47542153 NUTNUT
-
57516815 SCREWSCREW
-
65240956 BRACKET, STARTER (REAR)BRACKET, STARTER (REAR)
-
72200756 ARMATURE ASSY. KITARMATURE ASSY. KIT
-
82200755 DRIVE HARDWARE KITDRIVE HARDWARE KIT
-
92200757 KIT, DRIVECAP ASSY..KIT, DRIVECAP ASSY..
-
104170006 MOTOR, STARTER (DOMESTIC)MOTOR, STARTER (DOMESTIC)
-
112200754 DRIVE ASSY. KITDRIVE ASSY. KIT
-
125241271 BRACKET, STARTER (2 CYL) (FRONT)BRACKET, STARTER (2 CYL) (FRONT)
-
137552603 WASHERWASHER
-
147512492 SCREWSCREW
-
157516730 SCREW AND WASHER ASSY.SCREW AND WASHER ASSY.
-
162200753 SCREW KITSCREW KIT
-
173082939 NUTNUT
-
183080077 WASHER SPRINGWASHER SPRING
-
193085521 SWITCH, MAGNETICSWITCH, MAGNETIC
