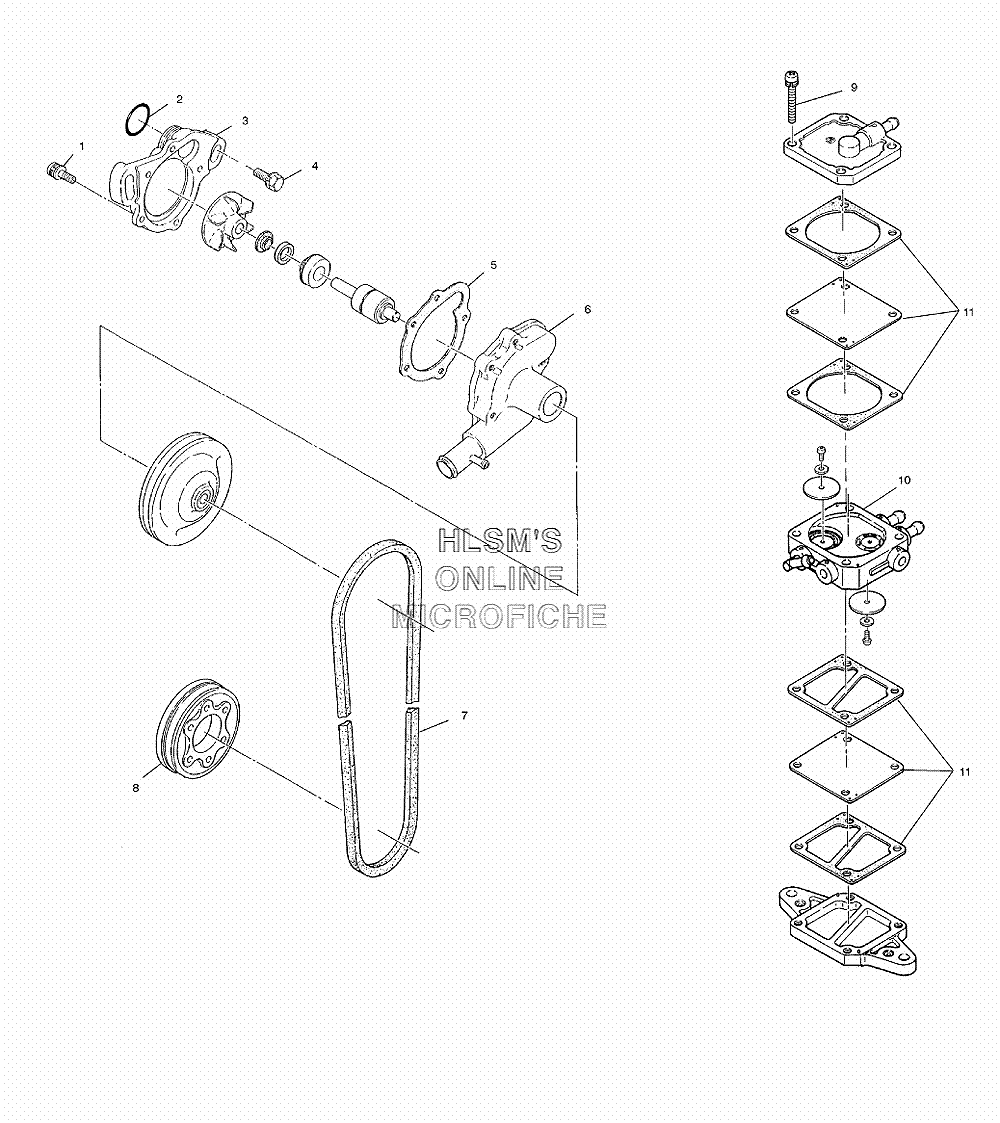

WATER PUMP/FUEL PUMP для Polaris WIDETRAK LX (S02SU4BS) - 2002 года выпуска
-
№АртикулНазвание
-
13084221 SCREW AND WASHER ASSY.SCREW AND WASHER ASSY.
-
23082746 O-RINGO-RING
-
33083683 CASING, PUMP 2CASING, PUMP 2
-
43083370 BOLT AND WASHER ASSY.BOLT AND WASHER ASSY.
-
53083367 GASKET, WATER PUMPGASKET, WATER PUMP
-
63083471 PUMP, WATER (INCL. 1-3,5)PUMP, WATER (INCL. 1-3,5)
-
73082747 BELTBELT
-
83083371 PULLEY (DRIVE)PULLEY (DRIVE)
-
93084591 SCREW AND WASHERSCREW AND WASHER
-
103085490 PUMP, FUPUMP FUEL ASSY., NON-ASBESTOS (INCL. 9-11)PUMP, FUPUMP FUEL ASSY., NON-ASBESTOS (INCL. 9-11)
-
113084590 DIAPHRAGM, GASKET SETDIAPHRAGM, GASKET SET
