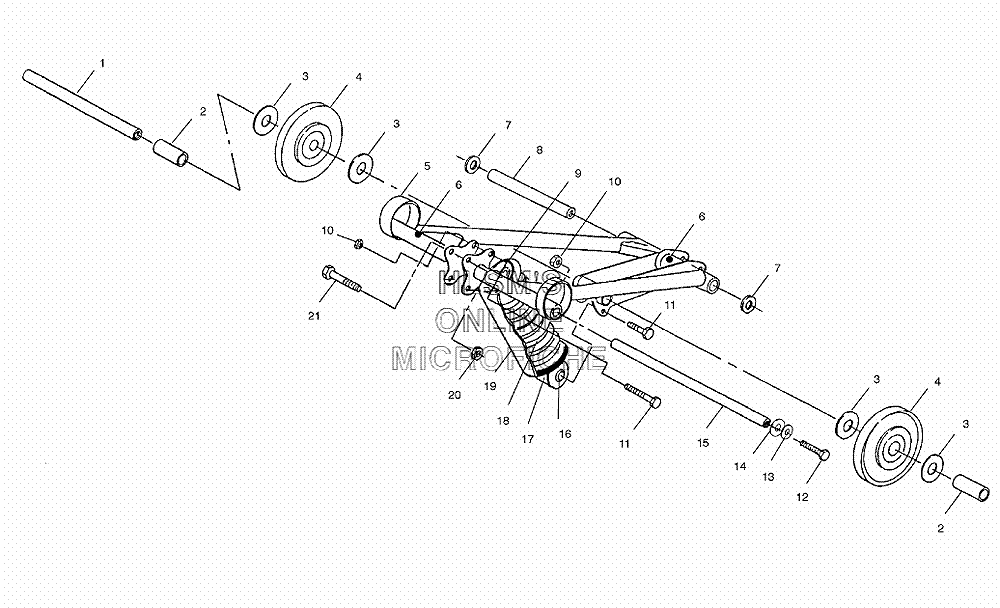

SUSPENSION - FRONT TORQUE ARM ASSEMBLY для Polaris WIDETRAK LX (S02SU4BS) - 2002 года выпуска
-
№АртикулНазвание
-
15020720 SHAFT, SPANNERSHAFT, SPANNER
-
25333012 TUBE, SPACER (OUTER)TUBE, SPACER (OUTER)
-
37556301 MACHINERY BUSHINGMACHINERY BUSHING
-
41543018 WHEEL, IDLERWHEEL, IDLER
-
51541044-067 ARM, TORQUE, HEAD LX (BLACK/FRONT)ARM, TORQUE, HEAD LX (BLACK/FRONT)
-
67080424 FITTING, LUBE.FITTING, LUBE.
-
77555823 WASHERWASHER
-
85132239 SHAFT, PIVOT (.750 X 13.235)SHAFT, PIVOT (.750 X 13.235)
-
95630580 RETAINER, SPRING SLOTTEDRETAINER, SPRING SLOTTED
-
107542411 NUT LOCKNUT LOCK
-
117515433 BOLTBOLT
-
127517435 BOLTBOLT
-
137552603 WASHERWASHER
-
147555893 WASHERWASHER
-
155020909 SHAFTSHAFT
-
167041742 SHOCK, SUSPENSION (CENTER)SHOCK, SUSPENSION (CENTER)
-
175245067 RETAINER, SPRING, GAB, PLATEDRETAINER, SPRING, GAB, PLATED
-
187041712-067 SPRING, TRACK (FRONT/BLACK)SPRING, TRACK (FRONT/BLACK)
-
195430671 SHIELD, SPRINGSHIELD, SPRING
-
207542439 NUT, NYLOCKNUT, NYLOCK
-
217515438 BOLTBOLT
