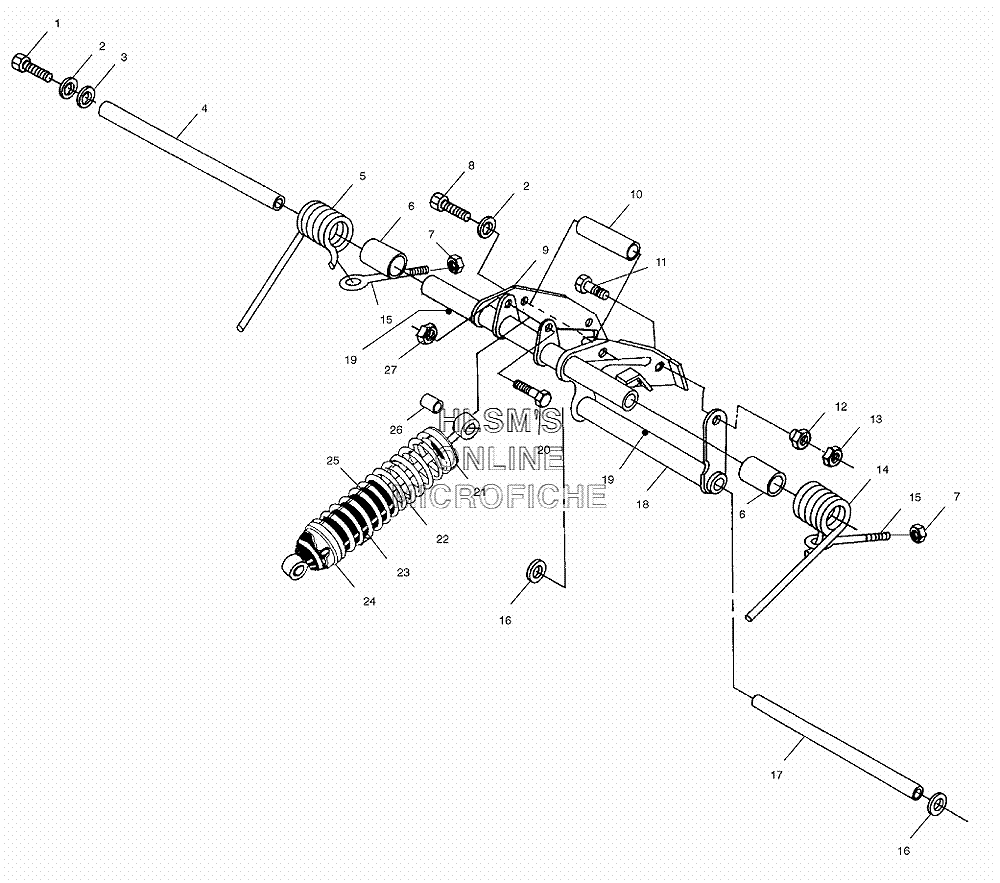

SUSPENSION - REAR TORQUE ARM ASSEMBLY для Polaris WIDETRAK LX (S02SU4BS) - 2002 года выпуска
-
№АртикулНазвание
-
17517435 BOLTBOLT
-
27552603 WASHERWASHER
-
37555893 WASHERWASHER
-
45020909 SHAFTSHAFT
-
57041240-067 SPRING, SUSP (REAR/RIGHT/BLACK)SPRING, SUSP (REAR/RIGHT/BLACK)
-
65521277 SPACER, SPRINGSPACER, SPRING
-
77542402 NUT, FLEX LOCNUT, FLEX LOC
-
87517247 SCREWSCREW
-
91540761-067 ARM, TORQUE (REAR/BLACK)ARM, TORQUE (REAR/BLACK)
-
105010305 TUBE, SPACER TORQUE (REAR)TUBE, SPACER TORQUE (REAR)
-
117515317 BOLTBOLT
-
127542326 NUT, SHOULDERNUT, SHOULDER
-
137542302 NUT LOCKNUT LOCK
-
147041239-067 SPRING, SUSP. (BLACK/LEFT/REAR)SPRING, SUSP. (BLACK/LEFT/REAR)
-
157080221 BOLT, EYE SPRING ADJUSTBOLT, EYE SPRING ADJUST
-
167555823 WASHERWASHER
-
175132239 SHAFT, PIVOT (.750X13.235)SHAFT, PIVOT (.750X13.235)
-
181540652-067 ARM, PIVOT (BLACK/REAR)ARM, PIVOT (BLACK/REAR)
-
197080424 FITTING, LUBEFITTING, LUBE
-
207512329 BOLTBOLT
-
215220225 RETAINER (TOP)RETAINER (TOP)
-
227041261-067 SPRING, COMP. (BLACK)SPRING, COMP. (BLACK)
-
235431032 SLEEVE, SPRING PROTECTORSLEEVE, SPRING PROTECTOR
-
245630334 CAM, ADJUSTING SPRINGCAM, ADJUSTING SPRING
-
257041738 SHOCK, TRACK (REAR)SHOCK, TRACK (REAR)
-
265430537 BUSHINGBUSHING
-
277542324 NUTNUT
