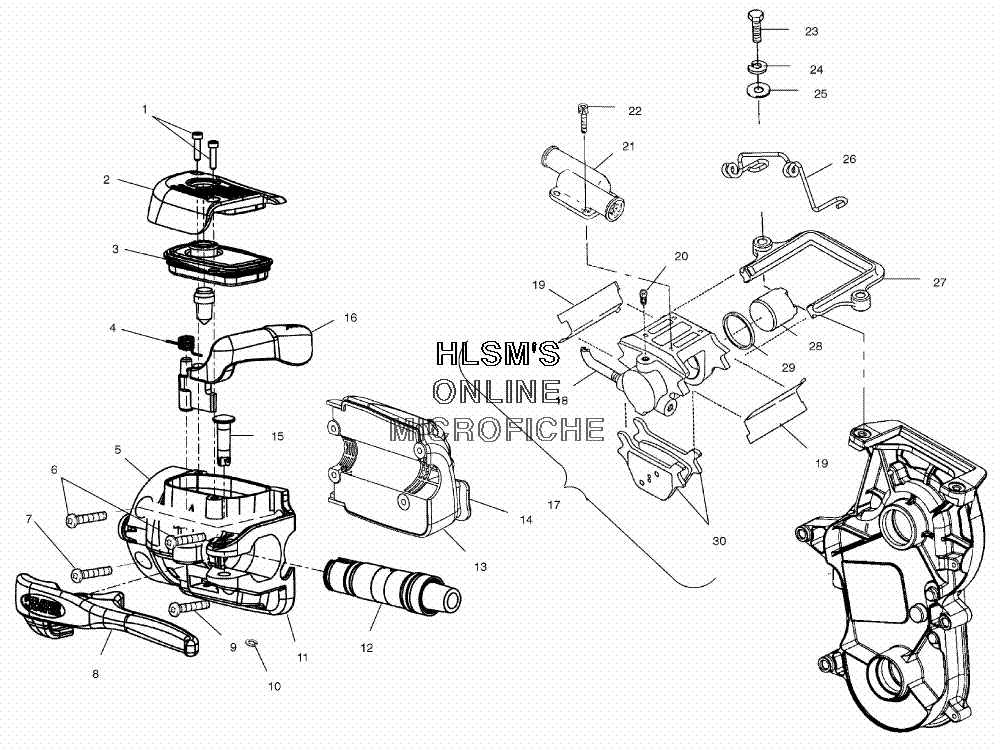

BRAKE ASSEMBLY для Polaris 500 CLASSIC (S03ND5CS) - 2003 года выпуска
-
№АртикулНазвание
-
12201254 COVER SCREW KIT (HAYES)COVER SCREW KIT (HAYES)
-
22201255 COVER ASSY. (HAYES) (INCL. 1, 3)COVER ASSY. (HAYES) (INCL. 1, 3)
-
42201250 PARKLEVER SPRING KITPARKLEVER SPRING KIT
-
52010219 MASTER CYLINDER KIT, HAYES (INCL. 2, 4, 8, 11, 12, 15)MASTER CYLINDER KIT, HAYES (INCL. 2, 4, 8, 11, 12, 15)
-
67517441 SCREWSCREW
-
77512078 SCREWSCREW
-
82201943 LEVER, 3 NOTCH/PIN/RING KITLEVER, 3 NOTCH/PIN/RING KIT
-
97517566 SCREWSCREW
-
102201945 SNAP RING KITSNAP RING KIT
-
112202146 MASTER CYLINDER KIT, HAYESMASTER CYLINDER KIT, HAYES
-
114010157 SWITCH, BRAKE LIGHTSWITCH, BRAKE LIGHT
-
122201944 5/8'' CARTRIDGE SUB ASSY.5/8'' CARTRIDGE SUB ASSY.
-
132010206 CONTROL ASSY. (LEFT) , E/R, BASICCONTROL ASSY. (LEFT) , E/R, BASIC
-
145433291 BUTTON SWITCH HI/LO (LEFT) CONTROLBUTTON SWITCH HI/LO (LEFT) CONTROL
-
152201946 PIVOT PIN KIT, ALUM W/SNAP RINGPIVOT PIN KIT, ALUM W/SNAP RING
-
162201251 PARKLEVER AND SPRING KIT [INCL. 4]PARKLEVER AND SPRING KIT [INCL. 4]
-
171910344 BRAKE CALIPER, HD, LIQ, NOSW (INCL. 28, 29, 30)BRAKE CALIPER, HD, LIQ, NOSW (INCL. 28, 29, 30)
-
181910546 LINE, BRAKE, EDGE, BRAIDEDLINE, BRAKE, EDGE, BRAIDED
-
192200467 CLIP SPRING KIT (QTY. 2)CLIP SPRING KIT (QTY. 2)
-
201930735 INLET KITINLET KIT
-
211930728 COOLER, WATER, BRAKECOOLER, WATER, BRAKE
-
212201024 GASKET, BRK.COOLERGASKET, BRK.COOLER
-
221930729 SCREW SET (PKG. OF 4)SCREW SET (PKG. OF 4)
-
237515521 BOLTBOLT
-
247552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
257555801 WASHERWASHER
-
265244413 GUIDE, ROPEGUIDE, ROPE
-
271930733 CALIPER BRACKET KITCALIPER BRACKET KIT
-
281930734 PISTON SEAL KIT (INCL. 29)PISTON SEAL KIT (INCL. 29)
-
292200466 SEALSEAL
-
302201430 BRAKE KIT, PAD TYPE 81 (LARGE) (INCL. 19)BRAKE KIT, PAD TYPE 81 (LARGE) (INCL. 19)
