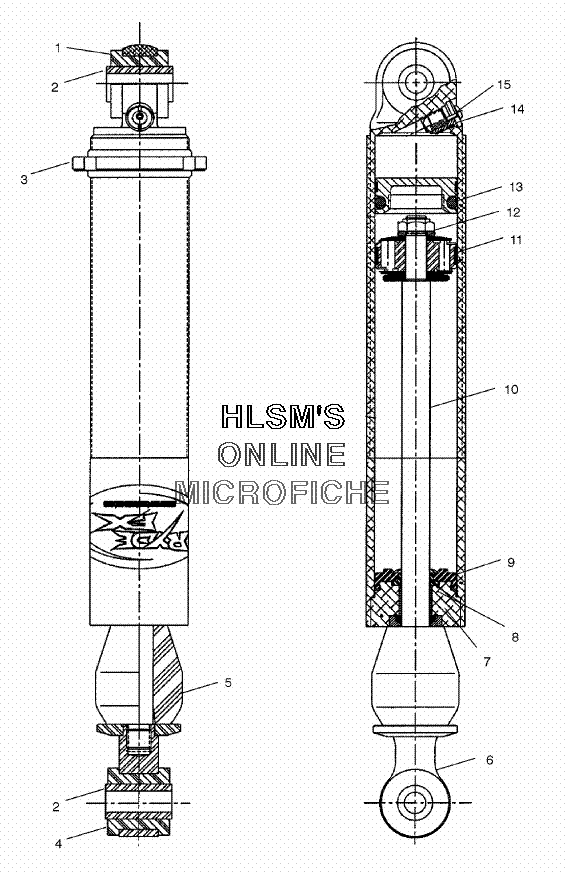

SHOCK (FOX) (IFS) для Polaris 500 CLASSIC (S03ND5CS) - 2003 года выпуска
-
№АртикулНазвание
-
11700036 BUSHINGBUSHING
-
21700037 SLEEVE, .38''IDX.63''ODX1.18STEELSLEEVE, .38''IDX.63''ODX1.18STEEL
-
31700033 SPRING RET NUTSPRING RET NUT
-
41700072 BUSHINGBUSHING
-
51700042 COMP, BUMPERCOMP, BUMPER
-
61700010 UPPER MOUNTUPPER MOUNT
-
71700007 CYL HEAD ASSY (1/2'' ROD)CYL HEAD ASSY (1/2'' ROD)
-
81700021 ROD SEALROD SEAL
-
91700022 CAP SEALCAP SEAL
-
101700025 SHAFT, 1/2''DIAX7.88''LSHAFT, 1/2''DIAX7.88''L
-
111700109 BANDED PISTON .094" ORIFICEBANDED PISTON .094" ORIFICE
-
111700031 PISTON WEAR BANDPISTON WEAR BAND
-
111700077 TOP, OUT WASHERTOP, OUT WASHER
-
111700078 BACK, UP WASHERBACK, UP WASHER
-
121700057 NUTNUT
-
131700023 IFPIFP
-
131700032 IFP WEAR BANDIFP WEAR BAND
-
131700048 IFP, O-RINGIFP, O-RING
-
141700076 PRESS, VALVE ASSYPRESS, VALVE ASSY
-
141700047 PRESS, VALVE O-RINGPRESS, VALVE O-RING
-
151700056 VALVE SCREWVALVE SCREW
-
157041976 SHOCK, IFS, IFP, 11X16.25, ALUM, ARSHOCK, IFS, IFP, 11X16.25, ALUM, AR
-
152200618 VALV.PISTON KITVALV.PISTON KIT
