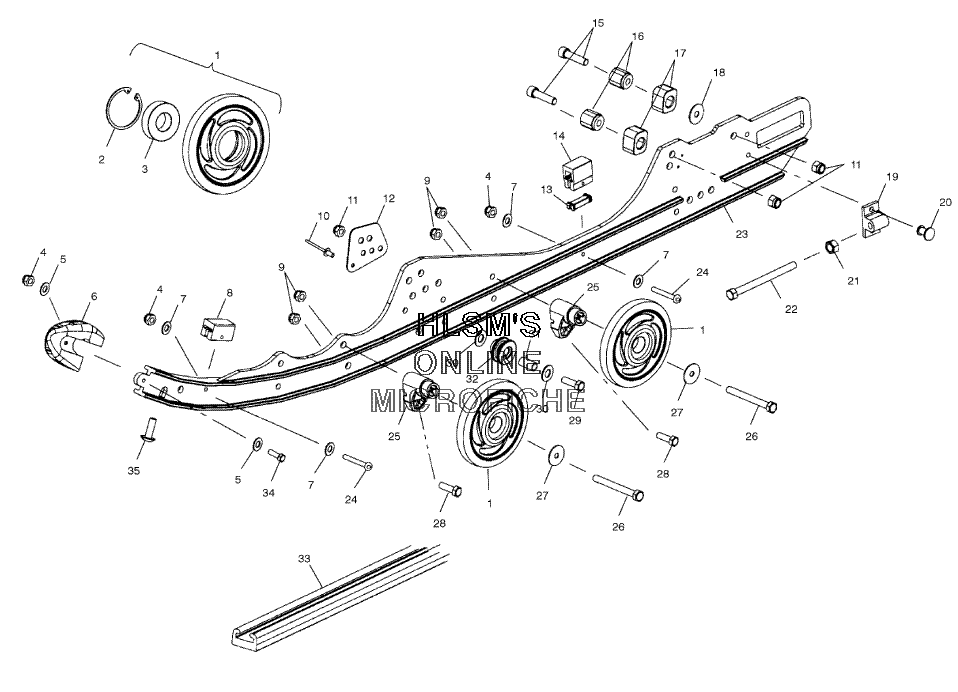

RAIL ASSEMBLY W/ IDLER WHEELS для Polaris 500 XC EDGE (S03NP5AS) - 2003 года выпуска
-
№АртикулНазвание
-
11590275-293 WHEEL SCROLLED ASSY., 5.35, I RED (INCL. 2, 3)WHEEL SCROLLED ASSY., 5.35, I RED (INCL. 2, 3)
-
27718407 RING-RETAINING (1 PER WHEEL)RING-RETAINING (1 PER WHEEL)
-
33514303 BEARING (1 PER WHEEL)BEARING (1 PER WHEEL)
-
47541925 NUT, NYLOK 10-24 YNUT, NYLOK 10-24 Y
-
57555792 WASHERWASHER
-
65434374 CAP-RAIL TIPCAP-RAIL TIP
-
77555783 WASHER, FLATWASHER, FLAT
-
85521499 BUMPER, JOUNCE FRONTBUMPER, JOUNCE FRONT
-
97542324 NUT, NYLOKNUT, NYLOK
-
107661845 RIVETRIVET
-
117542439 NUT, NYLOKNUT, NYLOK
-
125244677 BRACKET, RAIL REINFBRACKET, RAIL REINF
-
135432946 LINER, BUMPERLINER, BUMPER
-
145521498 BUMPER, JOUNCE REARBUMPER, JOUNCE REAR
-
157515537 BOLTBOLT
-
165131113 MOUNT, BUMPERMOUNT, BUMPER
-
175410925 BUMPER, PIVOT ARMBUMPER, PIVOT ARM
-
185244371 SPACER, 1.00X.390X.105SPACER, 1.00X.390X.105
-
195132444 BLOCK, IDLER BOLT ADJ, 7/16BLOCK, IDLER BOLT ADJ, 7/16
-
207621501 RIVETRIVET
-
217547156 NUTNUT
-
227517773 SCR-SCR-
-
231541755 RAIL ASSY., 121, (LEFT) (INCL. 6, 8, 14, 17, 19)RAIL ASSY., 121, (LEFT) (INCL. 6, 8, 14, 17, 19)
-
231541756 RAIL ASSY., 121, (RIGHT) (INCL. 6, 8, 14, 17, 19)RAIL ASSY., 121, (RIGHT) (INCL. 6, 8, 14, 17, 19)
-
247510504 SCREWSCREW
-
255631065 BLOCK-WHEEL MOUNT, LWTBLOCK-WHEEL MOUNT, LWT
-
267515346 SCREWSCREW
-
277556179 WASHER-SPRING, CON 5/16X.090-YWASHER-SPRING, CON 5/16X.090-Y
-
287515317 BOLTBOLT
-
297515438 BOLTBOLT
-
307555983 WASHER, FLATWASHER, FLAT
-
315333948 SPACER-.407X.625X1.33SPACER-.407X.625X1.33
-
325433959 ROLLER-SPRING, SQUAREROLLER-SPRING, SQUARE
-
335521528 SLIDER, XL, SERVICE, BASICSLIDER, XL, SERVICE, BASIC
-
347511975 SCREWSCREW
-
357515199 SCREWSCREW
