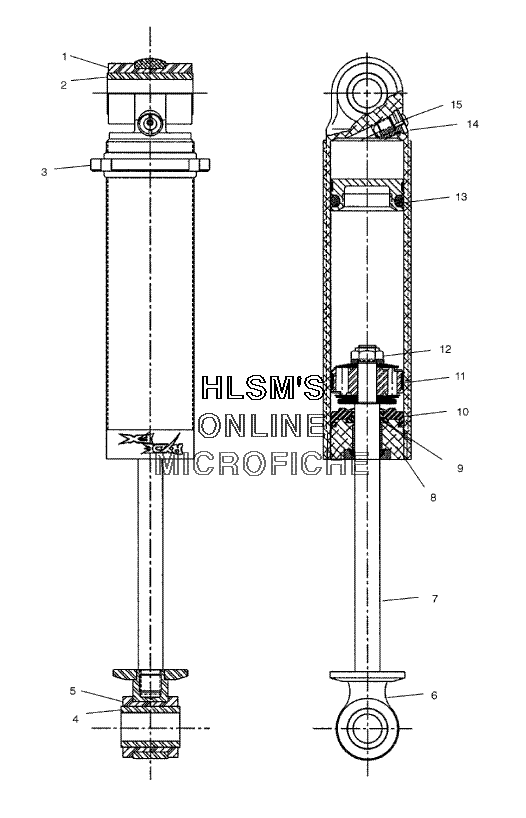

SUSPENSION - FRONT TRACK SHOCK для Polaris 500 XC EDGE (S03NP5AS) - 2003 года выпуска
-
№АртикулНазвание
-
11700074 BUSHINGBUSHING
-
21700071 SLEEVE-.57"IDX.80"ODX1.68SLEEVE-.57"IDX.80"ODX1.68
-
31700033 NUT, SPRING RETAINERNUT, SPRING RETAINER
-
41700069 SLEEVE-.57"IDX.80"ODX1.20SLEEVE-.57"IDX.80"ODX1.20
-
51700075 BUSHINGBUSHING
-
61700010 MOUNT, UPPERMOUNT, UPPER
-
71700026 SHAFT-1/2"DIAX6.10"LSHAFT-1/2"DIAX6.10"L
-
81700007 CYL HEAD ASSY(1/2" ROD)CYL HEAD ASSY(1/2" ROD)
-
91700021 ROD SEALROD SEAL
-
101700022 CAP SEALCAP SEAL
-
111700103 BANDED PISTON ASSY. .070" ORIFCEBANDED PISTON ASSY. .070" ORIFCE
-
111700031 PISTON WEAR BANDPISTON WEAR BAND
-
111700077 TOP-OUT WASHERTOP-OUT WASHER
-
111700078 BACK-UP WASHERBACK-UP WASHER
-
121700057 NUTNUT
-
131700023 IFPIFP
-
131700032 IFP WEAR BANDIFP WEAR BAND
-
131700048 IFP-O-RINGIFP-O-RING
-
141700076 PRESS-VALVE ASSYPRESS-VALVE ASSY
-
151700056 VALVE SCREWVALVE SCREW
-
157041975 SHOCK-F/T IFPSHOCK-F/T IFP
