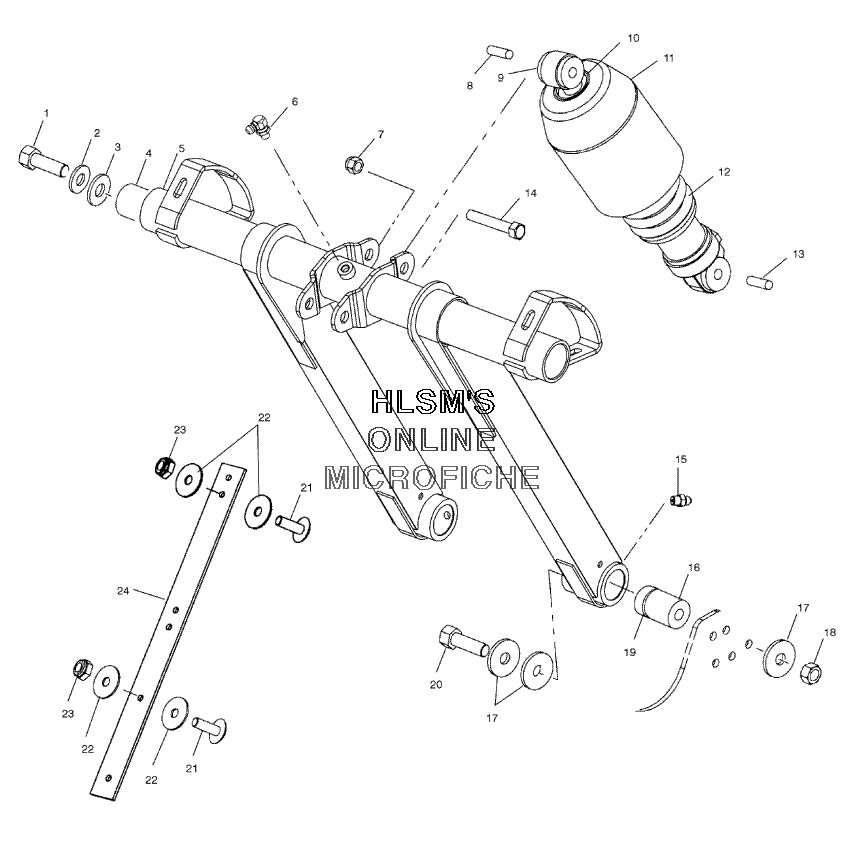

SUSPENSION - FRONT TORQUE ARM ASSEMBLY для Polaris 500 XC EDGE (S03NP5AS) - 2003 года выпуска
‹-+›
-
№АртикулНазвание
-
17517435 SCREWSCREW
-
27552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
37555893 WASHER, FLATWASHER, FLAT
-
45132067 SHAFT, UPPERSHAFT, UPPER
-
51541779-067 WELD-ARM, FRONT TORQUE, BLKWELD-ARM, FRONT TORQUE, BLK
-
67080510 FITTING, ZERK, 90 DEGREEFITTING, ZERK, 90 DEGREE
-
77542439 NUT, NYLOKNUT, NYLOK
-
85333905 SLEEVE, .385X.560X1.24SLEEVE, .385X.560X1.24
-
97041975 SHOCK-F/T IFPSHOCK-F/T IFP
-
105020618 RETAINER, SPRING, SLOTTEDRETAINER, SPRING, SLOTTED
-
115433503 SHIELD-SPRING, 3.00SHIELD-SPRING, 3.00
-
127041914-067 SPRING, COMP, 150#/175#, BLKSPRING, COMP, 150#/175#, BLK
-
135333906 SLEEVE, .385X.560X1.72SLEEVE, .385X.560X1.72
-
147515415 SCREWSCREW
-
157080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
165133308 SHAFT-.453X.999X1.60, ORINGSHAFT-.453X.999X1.60, ORING
-
177556156 WASHERWASHER
-
187547066 NUTNUT
-
195412022 O-RINGO-RING
-
207512597 BOLTBOLT
-
217517313 SCREWSCREW
-
227556175 WASHERWASHER
-
237542344 NUT, NYLOKNUT, NYLOK
-
245412140 STRAP-LIM, FRTSTRAP-LIM, FRT
