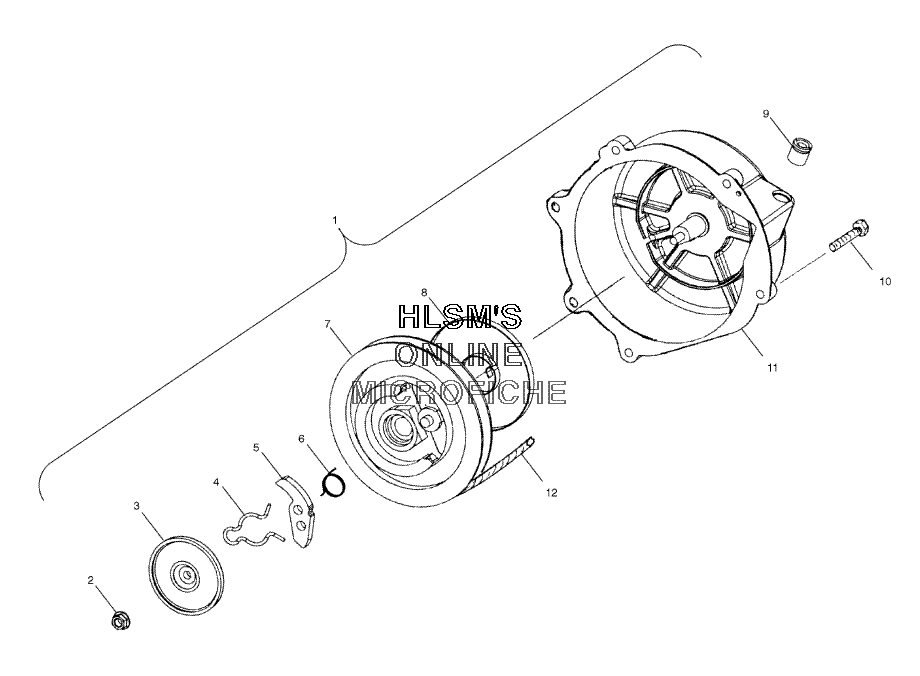

STARTER - RECOIL ASSEMBLY для Polaris 500 XC EDGE (S03NP5AS) - 2003 года выпуска
-
№АртикулНазвание
-
11202298 RECOIL ELECTRIC REV ASSY.RECOIL ELECTRIC REV ASSY.
-
23040163 NUT, FLANGENUT, FLANGE
-
33040164 PLATE, FRICTIONPLATE, FRICTION
-
43040167 SPRING, FRICTIONSPRING, FRICTION
-
55246108 RATCHET-PAWL ELEC REVRATCHET-PAWL ELEC REV
-
63040166 SPRING, RETURNSPRING, RETURN
-
73040168 REELREEL
-
83040170 SPRING, SPIRALSPRING, SPIRAL
-
93040171 GUIDE-ROPEGUIDE-ROPE
-
107516827 SCREWSCREW
-
115630645 RECOIL ELECTRIC REV ASSY.RECOIL ELECTRIC REV ASSY.
-
123040169 ROPE, STARTERROPE, STARTER
