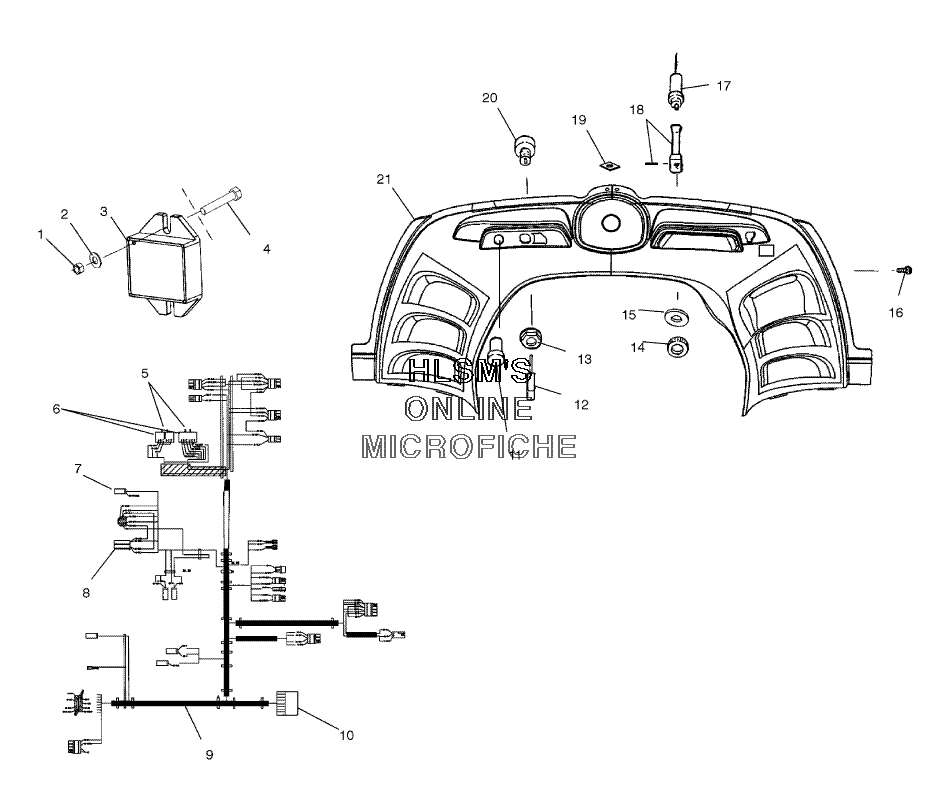

CONSOLE для Polaris 550 CLASSIC EDGE (S03ND5BS) - 2003 года выпуска
-
№АртикулНазвание
-
17541925 NUT, NYLOK 10 24 YNUT, NYLOK 10 24 Y
-
27555746 WASHERWASHER
-
34010794 REGULATOR AC/DC 14.3VREGULATOR AC/DC 14.3V
-
47517263 SCREW, HEXAGON/SEMSSCREW, HEXAGON/SEMS
-
54010193 HOUSING CONNECTOR, PACKARD #12186213HOUSING CONNECTOR, PACKARD #12186213
-
64010192 SOCKET PACKARD #12047767SOCKET PACKARD #12047767
-
74020092 TERMINAL, RINGTERMINAL, RING
-
84020063 HOUSING, PACKHOUSING, PACK
-
92461118 HARNESS MAIN EDGE E/R DIAGHARNESS MAIN EDGE E/R DIAG
-
104020057 HOUSINGHOUSING
-
114010283 RECEPTACLE, POD MOUNT 12 VOLTRECEPTACLE, POD MOUNT 12 VOLT
-
125410611 KEYKEY
-
137547035 NUT, IGNITIONNUT, IGNITION
-
147080229 NUTNUT
-
157571610 WASHER LOCKWASHER LOCK
-
167515199 SCREWSCREW
-
177080290 CABLE, CHOKE (INCL. 14, 18)CABLE, CHOKE (INCL. 14, 18)
-
182200188 CHOKE CONTROL KIT (INCL. PIN)CHOKE CONTROL KIT (INCL. PIN)
-
197670088 CLIP, PLASTIC DART, NYLONCLIP, PLASTIC DART, NYLON
-
202200358 IGNITION SWITCH KITIGNITION SWITCH KIT
-
215434483-070 CONSOLE, SRP W/ACCESS (BLACK)CONSOLE, SRP W/ACCESS (BLACK)
