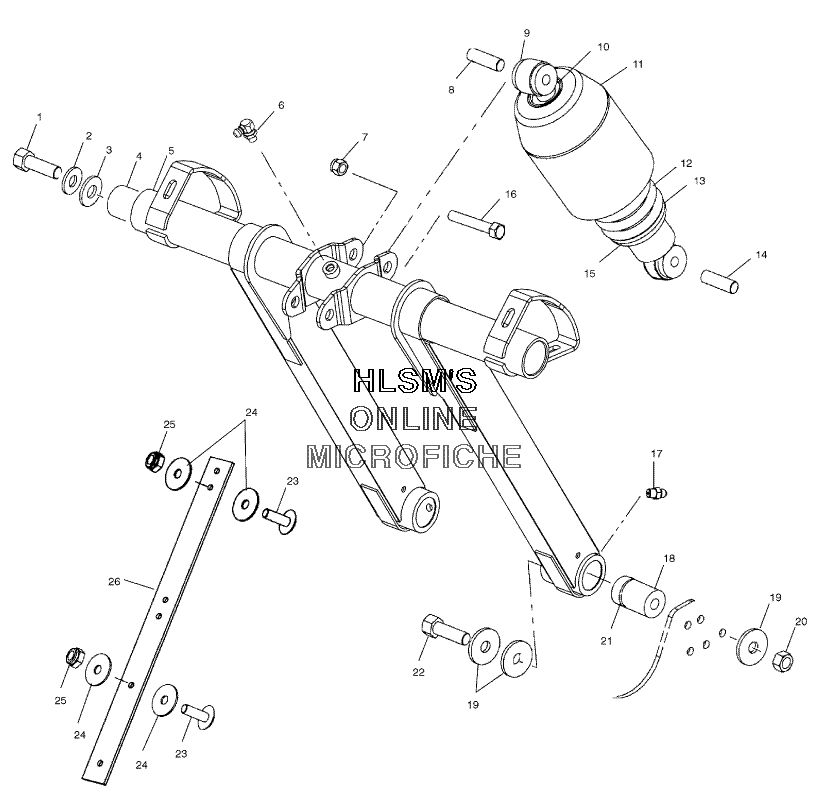

SUSPENSION - FRONT TORQUE ARM ASSEMBLY для Polaris 550 CLASSIC EDGE (S03ND5BS) - 2003 года выпуска
-
№АртикулНазвание
-
17517435 SCREWSCREW
-
27552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
37555893 WASHER, FLATWASHER, FLAT
-
45132067 SHAFT (UPPER)SHAFT (UPPER)
-
51541779-067 WELDING ARM, TORQUE (FRONT/BLACK)WELDING ARM, TORQUE (FRONT/BLACK)
-
67080510 FITTING, ZERK 90 DEGREEFITTING, ZERK 90 DEGREE
-
77542439 NUT, NYLOKNUT, NYLOK
-
85333905 SLEEVESLEEVE
-
97041939 SHOCK, FRONT TRACKSHOCK, FRONT TRACK
-
105630580 RETAINER, SPRING SLOTTEDRETAINER, SPRING SLOTTED
-
115430671 SHIELD SPRINGSHIELD SPRING
-
127041253-067 SPRING, COMPRESSION (BLACK)SPRING, COMPRESSION (BLACK)
-
135245067 RETAINER SPRING GAB PLATEDRETAINER SPRING GAB PLATED
-
145333906 SLEEVESLEEVE
-
155210953 RETAINER, SPRINGRETAINER, SPRING
-
167515415 SCREWSCREW
-
177080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
185133308 SHAFT, O-RINGSHAFT, O-RING
-
197556156 WASHERWASHER
-
207547066 NUT 7/16 20, NYLOK, YNUT 7/16 20, NYLOK, Y
-
215412022 O-RINGO-RING
-
227512597 BOLT, HEXAGON CAPBOLT, HEXAGON CAP
-
237517313 SCREWSCREW
-
247556175 WASHERWASHER
-
257542344 NUT, NYLOKNUT, NYLOK
-
265412140 STRAP LIM (FRONT)STRAP LIM (FRONT)
