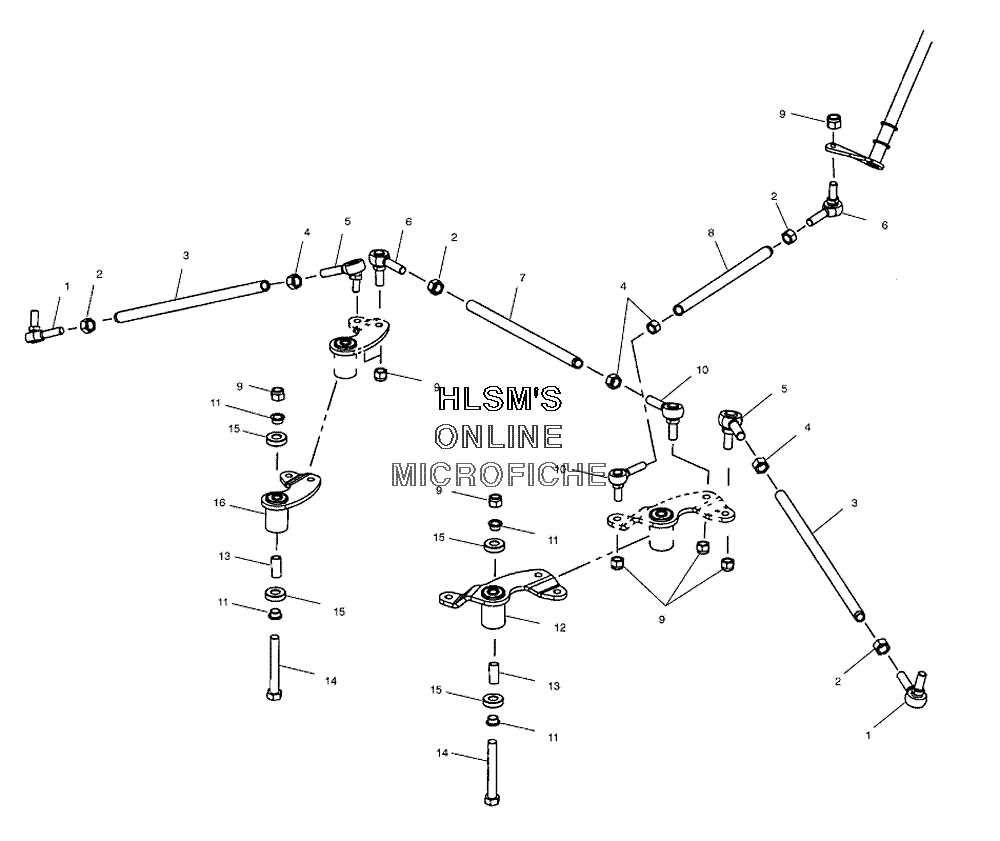

STEERING LINKAGE для Polaris 550 CLASSIC EDGE (S03ND5BS) - 2003 года выпуска
-
№АртикулНазвание
-
17061057 ROD END (RIGHT)ROD END (RIGHT)
-
27542401 NUT, HEXAGON (RIGHT)NUT, HEXAGON (RIGHT)
-
35333949 ROD TIEROD TIE
-
47542424 NUT (LEFT)NUT (LEFT)
-
57061055 ROD END (LEFT)ROD END (LEFT)
-
67061076 ROD END HI ANGLE (RIGHT)ROD END HI ANGLE (RIGHT)
-
75333772 ROD, STEERING RACKROD, STEERING RACK
-
85333773-067 ROD, DRAGLINK STEEL (12.50)ROD, DRAGLINK STEEL (12.50)
-
97542439 NUT, NYLOKNUT, NYLOK
-
107061075 ROD END HI ANGLE (LEFT)ROD END HI ANGLE (LEFT)
-
115132106 BUSHING REDUCER (12MM TO .385)BUSHING REDUCER (12MM TO .385)
-
121820957 PITMAN ARM ASSY (INCL. 11, 13, 15)PITMAN ARM ASSY (INCL. 11, 13, 15)
-
135133423 SPACER , TUBE PITMAN/IDLER ARMSSPACER , TUBE PITMAN/IDLER ARMS
-
147512435 SCREWSCREW
-
153514320 BALL BEARING (600ILLU)BALL BEARING (600ILLU)
-
161820959 IDLER ARM ASSY (INCL. 11, 13, 15)IDLER ARM ASSY (INCL. 11, 13, 15)
