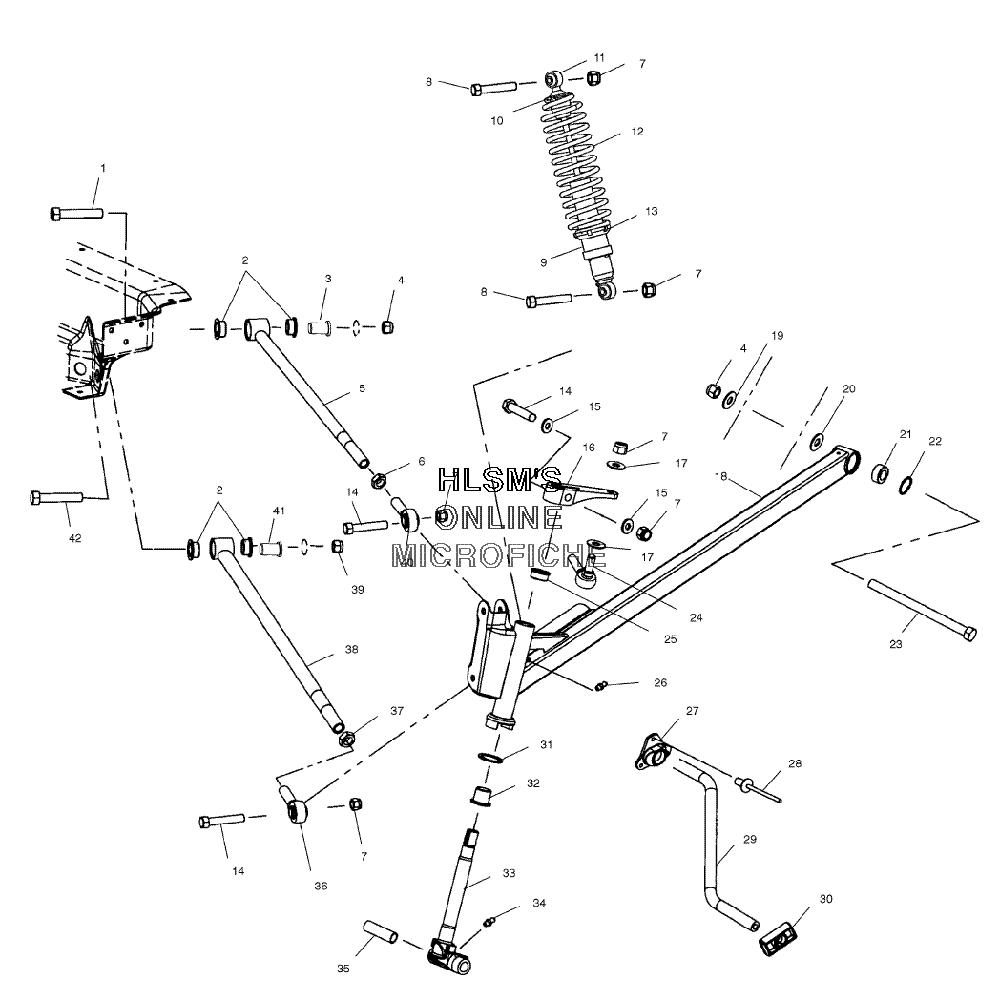

SUSPENSION - FRONT для Polaris 550 CLASSIC EDGE (S03ND5BS) - 2003 года выпуска
-
№АртикулНазвание
-
F7517980 BOLT, HEXAGON (7/16 20X3.00, GR5 Y)BOLT, HEXAGON (7/16 20X3.00, GR5 Y)
-
25434036 BUSHING, PIVOT (INNER)BUSHING, PIVOT (INNER)
-
35132779 BUSHING, SHOULDERBUSHING, SHOULDER
-
47547066 NUT 7/16 20, NYLOK YNUT 7/16 20, NYLOK Y
-
51820679-067 RADIUS ROD (UPPER/BLACK)RADIUS ROD (UPPER/BLACK)
-
67542520 NUT, JAMNUT, JAM
-
77542439 NUT, NYLOKNUT, NYLOK
-
87515433 SCREWSCREW
-
91500063 RETAINER, SPRING BODY THREADEDRETAINER, SPRING BODY THREADED
-
105630580 RETAINER, SPRING SLOTTEDRETAINER, SPRING SLOTTED
-
117041932 SHOCK IFS, NITREXSHOCK IFS, NITREX
-
127041551-067 SPRING COMP, IFS (BLACK)SPRING COMP, IFS (BLACK)
-
135431734 RING, SPRING PRELOAD ADJUSTERRING, SPRING PRELOAD ADJUSTER
-
147517583 SCREW, HEXAGON CAPSCREW, HEXAGON CAP
-
157555832 WASHERWASHER
-
165132728 ARM STEERING, MACHINEDARM STEERING, MACHINED
-
177555797 WASHER, FLATWASHER, FLAT
-
181821165-385 TRAILING ARM ASSY, SERVICE (CLOUD SILVER) (INCL. 21, 22)TRAILING ARM ASSY, SERVICE (CLOUD SILVER) (INCL. 21, 22)
-
181821166-385 TRAILING ARM ASSY, SERVICE (CLOUD SILVER) (INCL. 21, 22)TRAILING ARM ASSY, SERVICE (CLOUD SILVER) (INCL. 21, 22)
-
197555820 WASHER, FLATWASHER, FLAT
-
205132364 CUP, TRAILING ARM MOUNTCUP, TRAILING ARM MOUNT
-
217061042 BEARING SPHERICAL 7/16 PLASTICBEARING SPHERICAL 7/16 PLASTIC
-
227710437 RING, RETAININGRING, RETAINING
-
237512099 SCREWSCREW
-
247061057 ROD END (RIGHT)ROD END (RIGHT)
-
253573909 BUSHING FLANGEBUSHING FLANGE
-
267080433 FITTING, LUBRICATION THREADEDFITTING, LUBRICATION THREADED
-
275433234 BUSHING TORSION BARBUSHING TORSION BAR
-
287621452 RIVETRIVET
-
295244415-067 BAR, TORSION (BLACK)BAR, TORSION (BLACK)
-
305434369 SLIDE, TORSION BAR 1/2 ANTIRATTLESLIDE, TORSION BAR 1/2 ANTIRATTLE
-
317556509 BUSHINGBUSHING
-
323574208 BUSHING, FLANGEDBUSHING, FLANGED
-
336230225-067 SHAFT SPINDLE W/STEERING STOP (BLACK)SHAFT SPINDLE W/STEERING STOP (BLACK)
-
347080306 FITTING, LUBE. W/BALL CHECKFITTING, LUBE. W/BALL CHECK
-
355010158 BUSHING, PIVOTBUSHING, PIVOT
-
367061060 ROD END, RADIUSROD END, RADIUS
-
377542711 NUT JAMNUT JAM
-
381820677-067 RADIUS ROD (LOWER/BLACK)RADIUS ROD (LOWER/BLACK)
-
397547065 NUT 1/2 20, NYLOKNUT 1/2 20, NYLOK
-
407061061 ROD END, RADIUS (7/16)ROD END, RADIUS (7/16)
-
415132780 BUSHING, SHOULDRBUSHING, SHOULDR
-
427512684 BOLTBOLT
