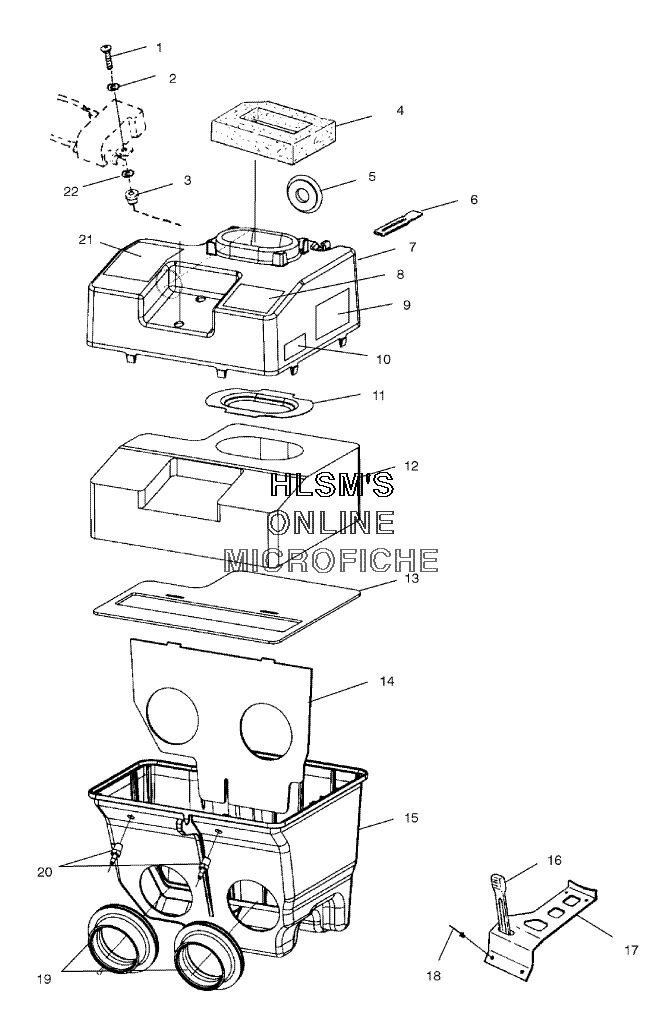

AIR BOX для Polaris 600 CLASSIC TOURING (S03ST6ES) - 2003 года выпуска
-
№АртикулНазвание
-
17517610 SCREWSCREW
-
27552604 WASHERWASHER
-
37547103 NUT, WELLNUT, WELL
-
45811606 FOAM, AIRBOX CHIMNEY HYBRIDFOAM, AIRBOX CHIMNEY HYBRID
-
55410344 PLUGPLUG
-
65411075 RETAINER TABRETAINER TAB
-
75433072 TOP, SILENCER INTAKE W/1.5TOP, SILENCER INTAKE W/1.5
-
87075351 DECAL, CAUTIONDECAL, CAUTION
-
97079934 DECAL E/R BELT REM/SHEAVE ADJUSTDECAL E/R BELT REM/SHEAVE ADJUST
-
107073426 DECAL, GREASINGDECAL, GREASING
-
115243219 MESH WIRE FORMEDMESH WIRE FORMED
-
125811564 FOAM, AIRBOX TOP INTERNALFOAM, AIRBOX TOP INTERNAL
-
135850134 PLATE, SILENCER INTAKEPLATE, SILENCER INTAKE
-
145850139 PLATE, SILENCER INTAKE VERTICALPLATE, SILENCER INTAKE VERTICAL
-
155433401 SILENCER INTAKE, DRILLED 600 EVSILENCER INTAKE, DRILLED 600 EV
-
165411129 STRAP, TIE DOWNSTRAP, TIE DOWN
-
175241691 BRACKET, SILENCER MOUNT (LOWER)BRACKET, SILENCER MOUNT (LOWER)
-
187661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
195411423 BOOT, CARBURETOR/AIRBOX (38MM)BOOT, CARBURETOR/AIRBOX (38MM)
-
207052127 FITTING, HOSEFITTING, HOSE
-
217075359 DECALDECAL
-
227555932 WASHER, NYLONWASHER, NYLON
