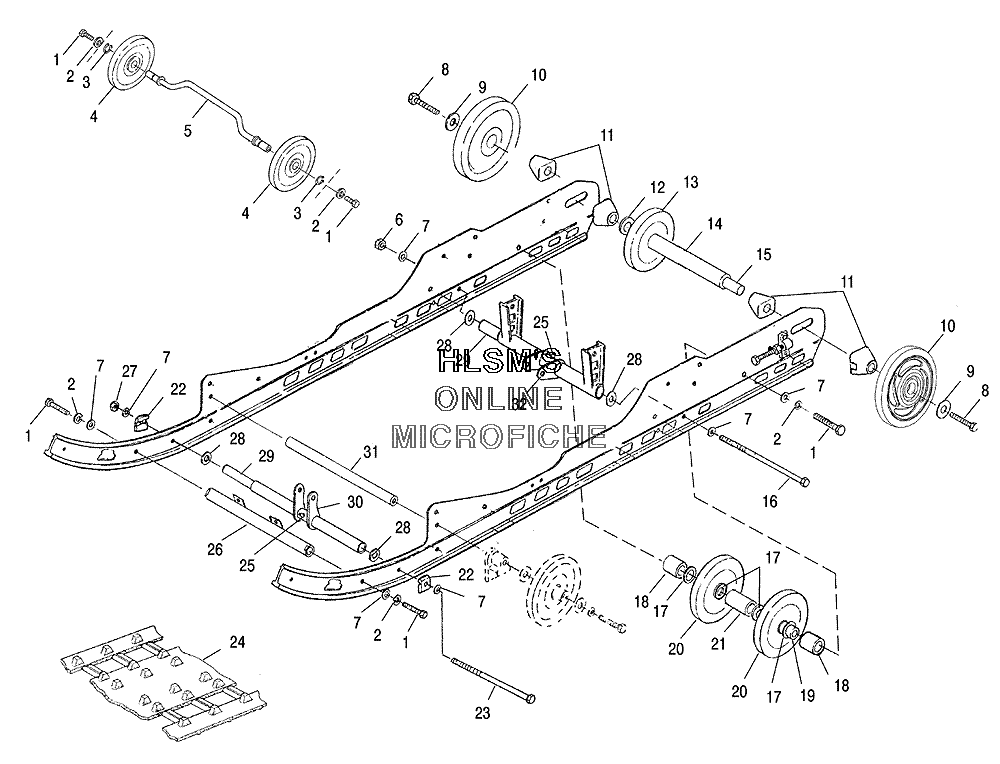

SUSPENSION - REAR TRACK для Polaris 600 CLASSIC TOURING (S03ST6ES) - 2003 года выпуска
-
№АртикулНазвание
-
17517247 SCREWSCREW
-
27552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
37710439 RING, RETAININGRING, RETAINING
-
41594067 WHEEL, BOGIEWHEEL, BOGIE
-
51541025-067 TENSIONER, SHAFT (BLACK)TENSIONER, SHAFT (BLACK)
-
67542439 NUT, NYLOKNUT, NYLOK
-
77555806 WASHER, FLATWASHER, FLAT
-
87517331 SCREWSCREW
-
97556130 WASHERWASHER
-
101590303-244 WHEEL IDLER ASSY, HP (BRIGHT SILVER METALLIC)WHEEL IDLER ASSY, HP (BRIGHT SILVER METALLIC)
-
115432535 SPACER, IDLERSPACER, IDLER
-
127555918 BUSHINGBUSHING
-
131594087 WHEEL ASSY, PLAIN (6.38 O.D.)WHEEL ASSY, PLAIN (6.38 O.D.)
-
145333285 SPACER, IDLER LONGSPACER, IDLER LONG
-
155020744 SHAFT, IDLERSHAFT, IDLER
-
167517921 SCREW, HEXAGONSCREW, HEXAGON
-
177556301 BUSHINGBUSHING
-
185332784 SPACER (OUTER)SPACER (OUTER)
-
195020724 SHAFT, PIVOT ARMSHAFT, PIVOT ARM
-
215332783 TUBE, SUSPENSIONTUBE, SUSPENSION
-
225131112 BOSS, BOLT HEADBOSS, BOLT HEAD
-
237517380 SCREWSCREW
-
245411687 TRACK, LIGHTNING (133"X.82)TRACK, LIGHTNING (133"X.82)
-
245241473 CLIP, SLIDECLIP, SLIDE
-
245241474 CLIP, GUIDECLIP, GUIDE
-
257080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
261012267-067 SHAFT, LIMITER STRAP (BLACK)SHAFT, LIMITER STRAP (BLACK)
-
277542411 NUT, FLEXLOCNUT, FLEXLOC
-
287555893 WASHER, FLATWASHER, FLAT
-
295333404 SHAFTSHAFT
-
301540968-067 ARM, SHOCK PIVOTARM, SHOCK PIVOT
-
315020649 SHAFT, SHOCK BRACKET (REAR)SHAFT, SHOCK BRACKET (REAR)
-
321541141-067 ARM, PIVOT X12 (REAR/BLACK)ARM, PIVOT X12 (REAR/BLACK)
