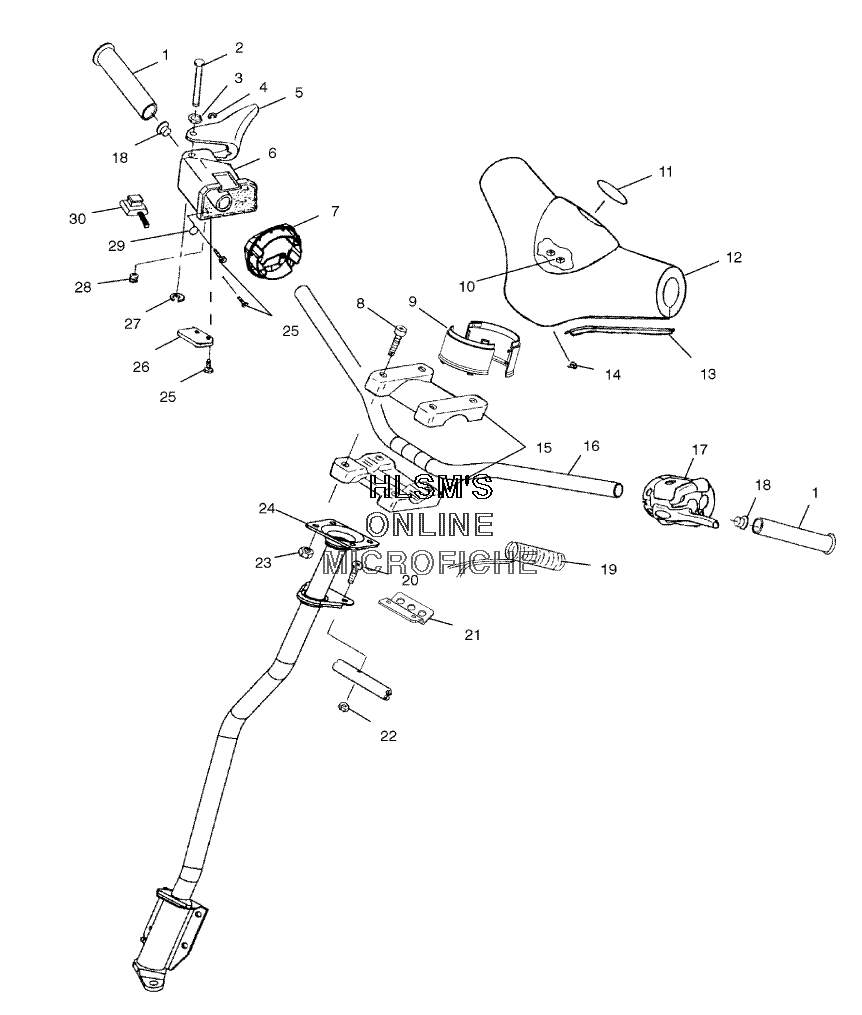

HANDLEBAR ASSEMBLY для Polaris 600 CLASSIC TOURING (S03ST6ES) - 2003 года выпуска
-
№АртикулНазвание
-
15432634 GRIP, HANDLEBARGRIP, HANDLEBAR
-
27661624 PIN RETAININGPIN RETAINING
-
37555730 WASHERWASHER
-
47710503 RING, RETAININGRING, RETAINING
-
55432970 THROTTLE, LEVER (35.5MM)THROTTLE, LEVER (35.5MM)
-
52010171 LEVER ASSY HEATER HI/LO (35.5MM)LEVER ASSY HEATER HI/LO (35.5MM)
-
65431592 BLOCK, THROTTLE/BRAKEBLOCK, THROTTLE/BRAKE
-
75433345 ADAPTER BLOCK, THROTTLEADAPTER BLOCK, THROTTLE
-
87517238 SCREWSCREW
-
95433331 BOOT, HANDLEBARBOOT, HANDLEBAR
-
107670106 NUT PUSH ON (.170 .180 Y)NUT PUSH ON (.170 .180 Y)
-
115434179 EMBLEM "STAR" PALM BEZEL, HANDLEBAREMBLEM "STAR" PALM BEZEL, HANDLEBAR
-
125433159-070 COVER HANDLEBAR (BLACK)COVER HANDLEBAR (BLACK)
-
135433160-070 SLIDE HANDLEBAR COVER (BLACK)SLIDE HANDLEBAR COVER (BLACK)
-
144010287 CLIP, DART NYLON (BLACK)CLIP, DART NYLON (BLACK)
-
155630187-067 BLOCK, HANDLEBAR (BLACK)BLOCK, HANDLEBAR (BLACK)
-
165243355-067 HANDLEBAR (BLACK)HANDLEBAR (BLACK)
-
185431096 PLUGPLUG
-
192460677 HEATER, GRIP LO/MED/HIHEATER, GRIP LO/MED/HI
-
207517377 SCREWSCREW
-
215242553-067 BRKT, RETENTION (BLACK)BRKT, RETENTION (BLACK)
-
227542103 NUT, FLEXLOCNUT, FLEXLOC
-
237542122 NUT NYLOKNUT NYLOK
-
241820663-067 STEERING POST, FMD RMK (BLACK)STEERING POST, FMD RMK (BLACK)
-
257511848 SCREWSCREW
-
265432261 HOLDER WIREHOLDER WIRE
-
277710401 RING, RETAININGRING, RETAINING
-
287512465 SCREW, SETSCREW, SET
-
297555727 WASHERWASHER
-
304110106 SWITCH, AUXILIARY SHUT OFFSWITCH, AUXILIARY SHUT OFF
