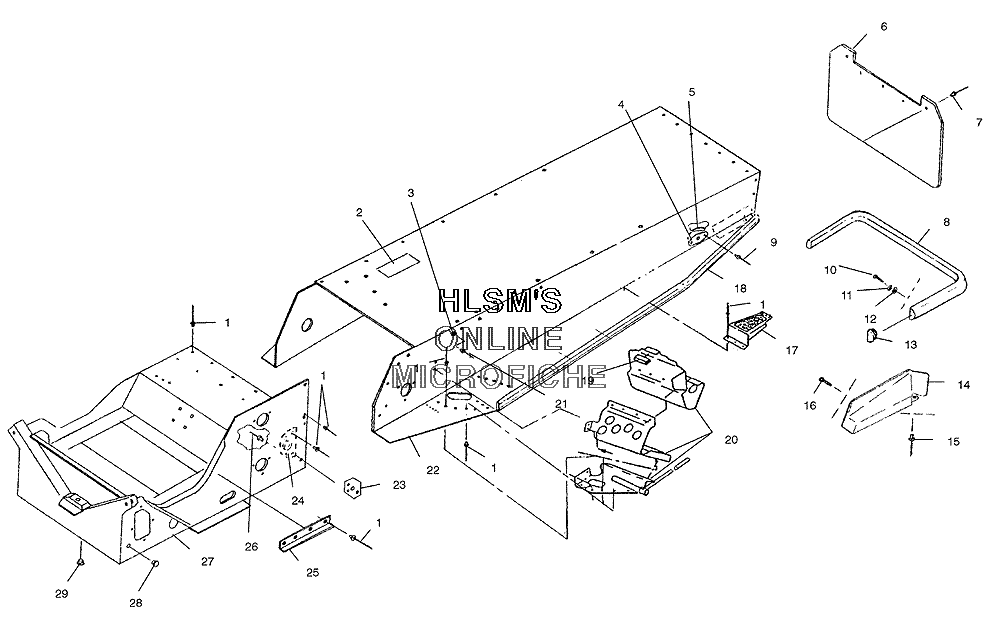

TUNNEL ASSEMBLY для Polaris 600 CLASSIC TOURING (S03ST6ES) - 2003 года выпуска
-
№АртикулНазвание
-
17661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
27073978 DECAL, TOP TUNNEL STRIPDECAL, TOP TUNNEL STRIP
-
37080227 SNAP MALESNAP MALE
-
45211660-067 PLATE, TUNNEL SUPPORTPLATE, TUNNEL SUPPORT
-
55211590-067 BRACKET, U TENSIONER (BLACK)BRACKET, U TENSIONER (BLACK)
-
65432149-1106 FLAP, SNOW (13.74") (BLACK W/WHITE)FLAP, SNOW (13.74") (BLACK W/WHITE)
-
77621418 RIVET, POPRIVET, POP
-
82670168-067 BUMPER ASSY (REAR/BLACK)BUMPER ASSY (REAR/BLACK)
-
97661846 RIVETRIVET
-
107515159 SCREWSCREW
-
117552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
127558301 WASHER, FLATWASHER, FLAT
-
135431995-070 CAP, BUMPERCAP, BUMPER
-
145432131-070 SKIRT, SNOW TRNG LEFT)SKIRT, SNOW TRNG LEFT)
-
145432132-070 SKIRT, SNOW TRNG (RIGHT)SKIRT, SNOW TRNG (RIGHT)
-
157621467 RIVET, BLINDRIVET, BLIND
-
167512091 SCREWSCREW
-
171012633 FOOTREST, W/GRIP PAD (LEFT)FOOTREST, W/GRIP PAD (LEFT)
-
171012634 FOOTREST, W/GRIP PAD (RIGHT)FOOTREST, W/GRIP PAD (RIGHT)
-
175830114 PAD, FOOTREST GRIPPAD, FOOTREST GRIP
-
185242206 EDGE, TUNNEL (LEFT)EDGE, TUNNEL (LEFT)
-
185242207 EDGE, TUNNEL (RIGHT)EDGE, TUNNEL (RIGHT)
-
195521238 EXTRUSION, CLUTCHGUARDEXTRUSION, CLUTCHGUARD
-
201013531 FOOTREST ASSYFOOTREST ASSY
-
201013476 FOOTREST ASSY (RIGHT/BLACK)FOOTREST ASSY (RIGHT/BLACK)
-
217621222 RIVETRIVET
-
221013546 TUNNEL ASSY, LIQ X-12 NATURAL (INCL. HEAT EXCHANGERS)TUNNEL ASSY, LIQ X-12 NATURAL (INCL. HEAT EXCHANGERS)
-
235211746-067 PLATE, SUSPENSION X 12 (OUTER/BLACK/FRONT)PLATE, SUSPENSION X 12 (OUTER/BLACK/FRONT)
-
241012269-067 MOUNT, SUSPENSION (LEFT/BLACK/FRONT)MOUNT, SUSPENSION (LEFT/BLACK/FRONT)
-
241012270-067 MOUNT, SUSPENSION (RIGHT/BLACK/FRONT)MOUNT, SUSPENSION (RIGHT/BLACK/FRONT)
-
255222857 GUARD, ADAPTER GUIDEGUARD, ADAPTER GUIDE
-
267661130 RIVETRIVET
-
271013031 WELD BULKHEADWELD BULKHEAD
-
287080416 PLUG, HOLEPLUG, HOLE
-
297080398 PLUG, HOLEPLUG, HOLE
