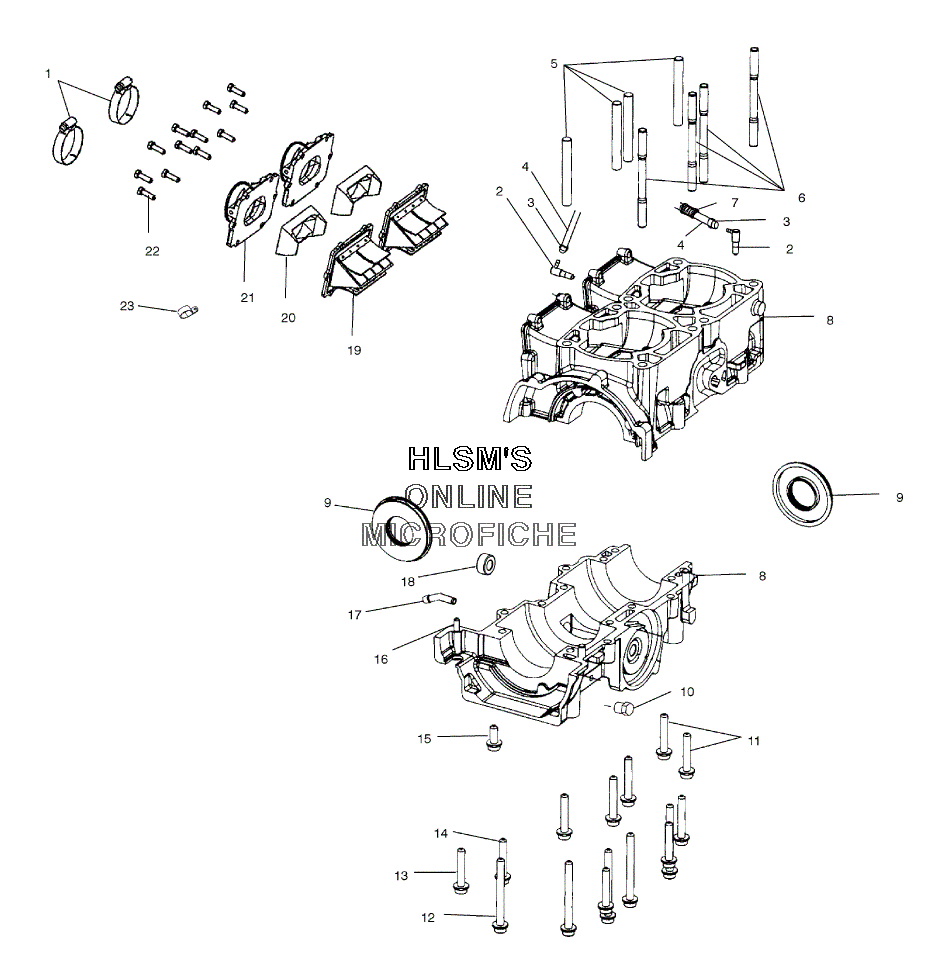

CRANKCASE ASSEMBLY для Polaris 600 PRO X (S03NX6ES) - 2003 года выпуска
-
№АртикулНазвание
-
17080681 CLAMP, HOSE, SS,CLAMP, HOSE, SS,
-
27051020 VALVE, CHECK, 90 DEG.VALVE, CHECK, 90 DEG.
-
37080603 CLAMPCLAMP
-
48450061-600 LINE, FUELLINE, FUEL
-
55132196 STUD, CYL 81MMSTUD, CYL 81MM
-
65132197 STUD, CYL 118MMSTUD, CYL 118MM
-
78360056-25 TUBING - CONVOLUTEDTUBING - CONVOLUTED
-
82202312 KIT - CRANKCASE (INCL. 5, 6, 10 - 16)KIT - CRANKCASE (INCL. 5, 6, 10 - 16)
-
95411394 SEAL, FLANGEDSEAL, FLANGED
-
107051529 PLUGPLUG
-
117517785 BOLTBOLT
-
127517784 BOLTBOLT
-
137516825 SCREWSCREW
-
147517786 BOLTBOLT
-
157517577 SCREWSCREW
-
167663001 PIN, DOWELPIN, DOWEL
-
177052322 FITTINGFITTING
-
185010390 COLLARCOLLAR
-
191201825 VALVE, REED, ASSY.VALVE, REED, ASSY.
-
205432852 STUFFER, REED, 75.5MM (38MM.CARB)STUFFER, REED, 75.5MM (38MM.CARB)
-
211253414 ADAPTER - CARBADAPTER - CARB
-
227516822 SCREWSCREW
-
237080683 CLAMP, HOSECLAMP, HOSE
