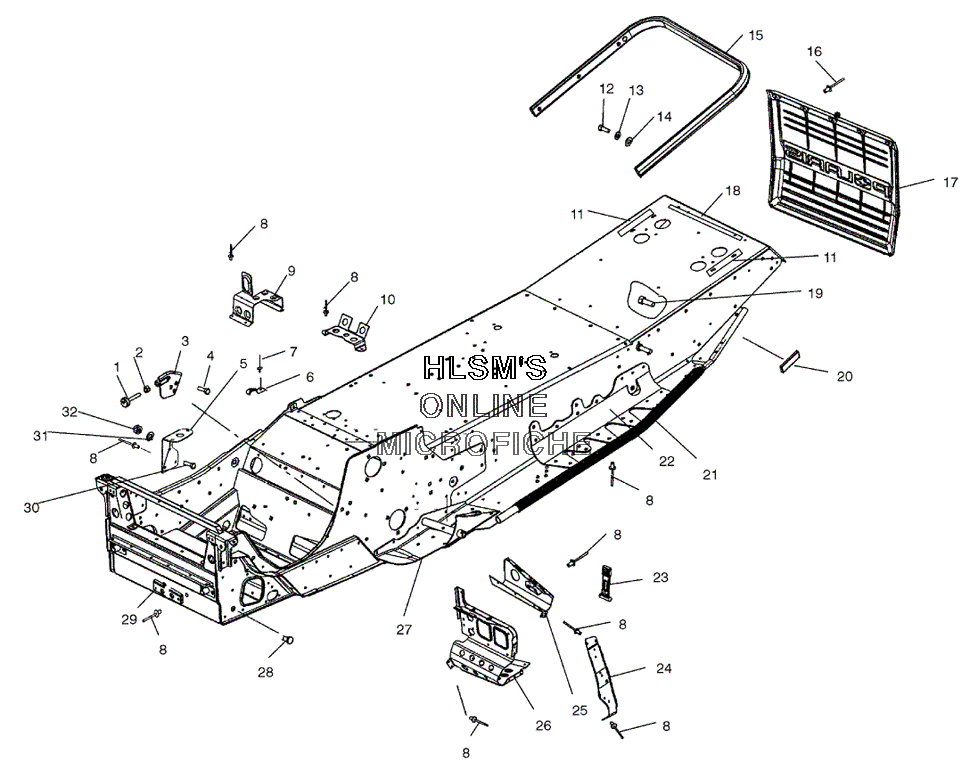

FRAME - CHASSIS для Polaris 600 PRO X (S03NX6ES) - 2003 года выпуска
-
№АртикулНазвание
-
13021104 STOP, TORQUE COURSESTOP, TORQUE COURSE
-
27542404 NUTNUT
-
31013458 WELD - TORQUE STOPWELD - TORQUE STOP
-
47517854 SCREWSCREW
-
55245514 BRACKET - CHASSIS/TUNED PIPEBRACKET - CHASSIS/TUNED PIPE
-
67080665 CLIP, WIRINGCLIP, WIRING
-
77621432 RIVET, 3/16X.402RIVET, 3/16X.402
-
87661637 RIVET, INTERLOCKRIVET, INTERLOCK
-
95245801 BRACKET - OIL BOTTLE, LOWERBRACKET - OIL BOTTLE, LOWER
-
105245398 BRACKET - AIRBOX MOUNTBRACKET - AIRBOX MOUNT
-
115812290 GASKET - SEAT BASEGASKET - SEAT BASE
-
127512240 BOLTBOLT
-
137552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
147558301 WASHER, FLATWASHER, FLAT
-
152632165-309 ASSY., BUMPER, REARASSY., BUMPER, REAR
-
167621472 RIVETRIVET
-
175433521-1106 FLAP, SNOW, EDGE (BLACK) W/CHROMEFLAP, SNOW, EDGE (BLACK) W/CHROME
-
185812360 GASKET - SEAT BASE 1/4"GASKET - SEAT BASE 1/4"
-
197517441 SCREWSCREW
-
202670133 REFLECTOR ASSY., REDREFLECTOR ASSY., RED
-
215132903 GRIP - TUNNEL, COMMON, (LEFT)GRIP - TUNNEL, COMMON, (LEFT)
-
215132904 GRIP - TUNNEL, COMMON, (RIGHT)GRIP - TUNNEL, COMMON, (RIGHT)
-
225245820 BRACE - TNL, CRNR, FISHBONE, (LEFT)BRACE - TNL, CRNR, FISHBONE, (LEFT)
-
225245821 BRACE - TNL, CRNR, FISHBONE, (RIGHT)BRACE - TNL, CRNR, FISHBONE, (RIGHT)
-
235433150 STRAPSTRAP
-
245246310 SUPPORT - FOOTREST, (LEFT)SUPPORT - FOOTREST, (LEFT)
-
245246311 SUPPORT - FOOTREST, (RIGHT)SUPPORT - FOOTREST, (RIGHT)
-
255245457 MOUNT - CONSOLE, TOE CLIP, (LEFT)MOUNT - CONSOLE, TOE CLIP, (LEFT)
-
255245458 MOUNT - CONSOLE, TOE CLIP, (RIGHT)MOUNT - CONSOLE, TOE CLIP, (RIGHT)
-
265245288 FOOTREST - (LEFT), .080FOOTREST - (LEFT), .080
-
265242740 FOOTREST - (RIGHT)FOOTREST - (RIGHT)
-
272202436 KIT - MOUNT, TRAILING ARM, (LEFT)KIT - MOUNT, TRAILING ARM, (LEFT)
-
272202437 KIT - MOUNT, TRAILING ARM, (RIGHT)KIT - MOUNT, TRAILING ARM, (RIGHT)
-
287080416 PLUG, HOLEPLUG, HOLE
-
295245250 BRACKET - RAD ROD, LOWER STRAPBRACKET - RAD ROD, LOWER STRAP
-
-1014017-309 ASSY. - CHASSIS, PRO X, NATURALASSY. - CHASSIS, PRO X, NATURAL
