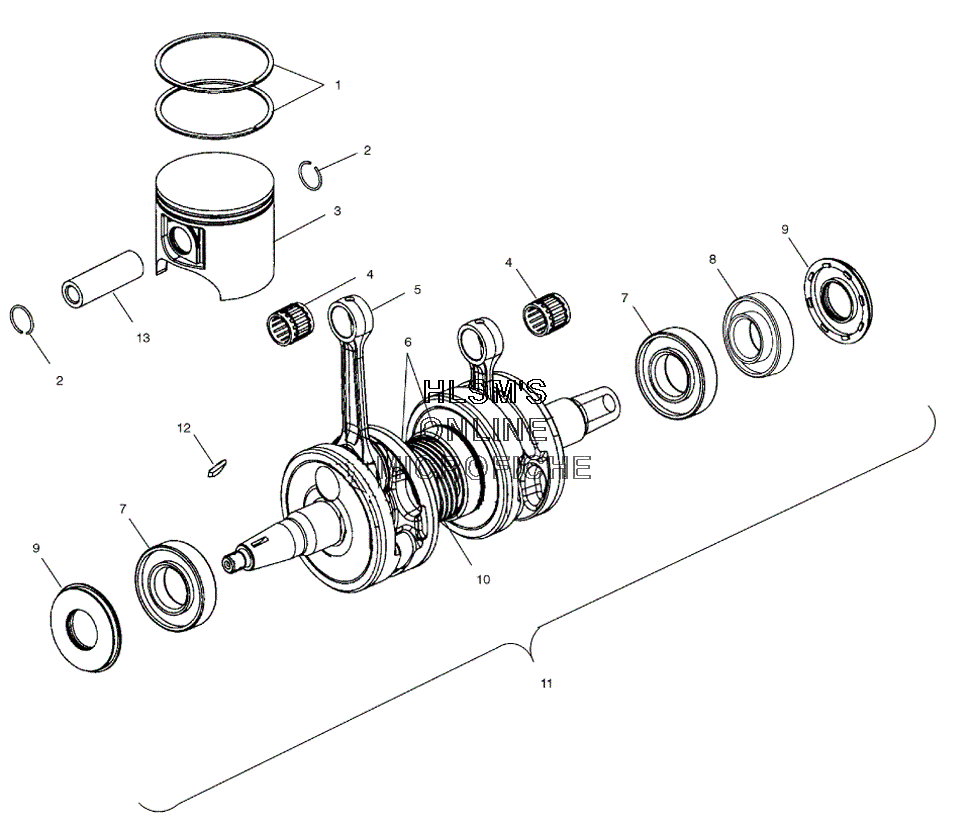

PISTON AND CRANKSHAFT для Polaris 600 PRO X (S03NX6ES) - 2003 года выпуска
-
№АртикулНазвание
-
12201256 KIT, PISTON RINGSKIT, PISTON RINGS
-
23022950 CIRCLIP, PISTON, 20MM., (2)CIRCLIP, PISTON, 20MM., (2)
-
32202258 KIT - PISTON 77X20 GRAFAL (INCL. 1, 2, 13)KIT - PISTON 77X20 GRAFAL (INCL. 1, 2, 13)
-
43552108 BEARINGBEARING
-
52201132 KIT, ASSY., CONNECT RODKIT, ASSY., CONNECT ROD
-
63514363 BEARING - BALLBEARING - BALL
-
73585503 BEARING, BALLBEARING, BALL
-
83514310 BEARING, BALL, EXTRACEBEARING, BALL, EXTRACE
-
95411394 SEAL, FLANGEDSEAL, FLANGED
-
105131373 GEAR, PUMP DRIVEGEAR, PUMP DRIVE
-
112202257 KIT - CRANKSHAFT 2@64X128 (INCL. 6 - 10)KIT - CRANKSHAFT 2@64X128 (INCL. 6 - 10)
-
127721117 KEY, WOODRUFFKEY, WOODRUFF
